wedi Tools - Tub Sealing Tape
Verified by manufacturer 3 months ago
BBA Agrément Certificate
Certificate type
Fleece laminated sealing tape for bathtub and shower tray seals.
Application

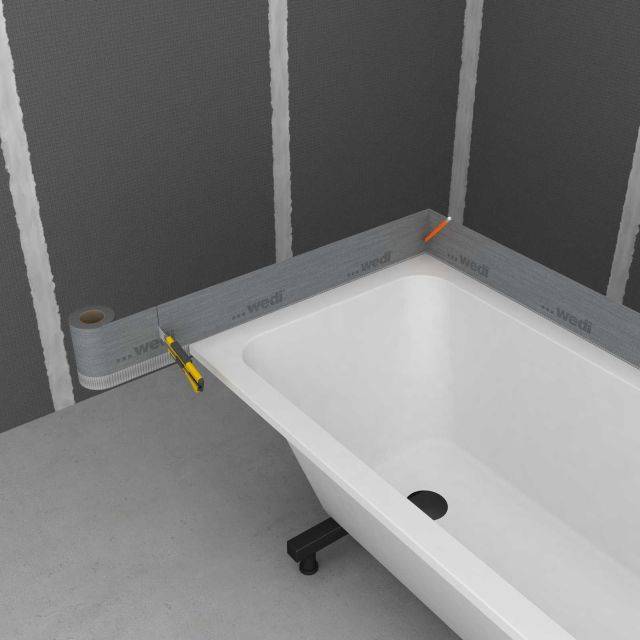

For secure sealing of tubs and shower trays made of steel, enamel, acrylic or similar.
Description

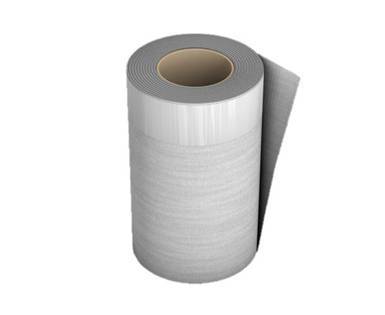

Fleece laminated sealing tape for bathtub and shower tray seals, consisting of a thermoplastic elastomer (TPE) coated polypropylene fleece with a wound butyl strip.
Features and benefits:
- The sealing tape creates waterproof joints between wedi building boards; and wedi Fundo elements to other non-wedi materials, such as screed and plasterboard, etc.
- Sealing tape roll, inside corners, outside corners, sealing gaiter.
- Provides good adhesive quality.
- Stable, rigid lengthwise and elastic crosswise joint sealing membrane.
- CE marked.
- A+ rating in relation to Emissions Dans L'air Interieur.
General information
Color | Grey |
Finish | Unfinished |
Material | Polypropylene |
Shape | Rectangle |
Size | Manufacturer guidance3600 x 120 mm |
Length | 3600 mm |
Width | 120 mm |
Height | 1 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | N13/375 Shower units N13/40 Shower units |
Product range |
Specification data - Butyl rubber fleece tapes
Material | Thermoplastic elastomer (TPE) coated polypropylene fleece with a wound butyl strip. |
Size | 3600 x 120 mm.Guidance for specification option: Coating width: Butyl strip 15 mm. |
Colour | Grey. |
Overall thickness | 1.32 mm. |
Weight | 60 g/m. |
TensileStrength | Maximum longitudinal tensile strength: 104 N/ 15 mm (approximately). |
Elongation at break | Longitudinal: 70% (approximately). Lateral: 335% (approximately). |
Resistance to water penetration | >1.5 bar. |
UV resistance | >500 h. |
Temperature resistance | -30°C to +90°C. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
