wedi Tools - Cavity Dowels Set
Verified by manufacturer 3 months ago
BBA Agrément Certificate
Certificate type
Cavity dowels for mechanically fixing light objects to tiled wedi building boards. For fastening hooks, towel rails and small pieces of mounted furniture to tiled wedi structural panels.
Application

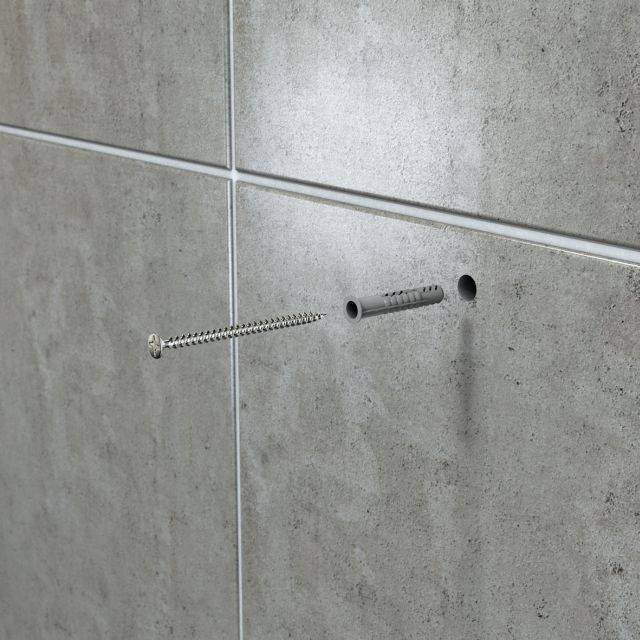

Drill a 6-mm hole. Remove drilling dust. Hammer in dowel. Fix light objects with screws provided.
- To fix light objects (allowable load: 0.12 kN) such as soap dishes, toilet paper holders, towel holders etc. to tiled wedi building boards/ foam elements.
- Installation on building boards with other finishes (plaster, etc.) is not permitted.
- For loads more than 25 kg (e.g. bath handrail), anchoring in a stable, load-bearing surface is required. This must be planned on site where necessary.
Description
Special cavity dowels for fixing light objects to tiled wedi building boards/ foam elements.
To fix light objects such as soap dishes, toilet paper holders, towel
holders etc. to tiled wedi building boards/foam elements.

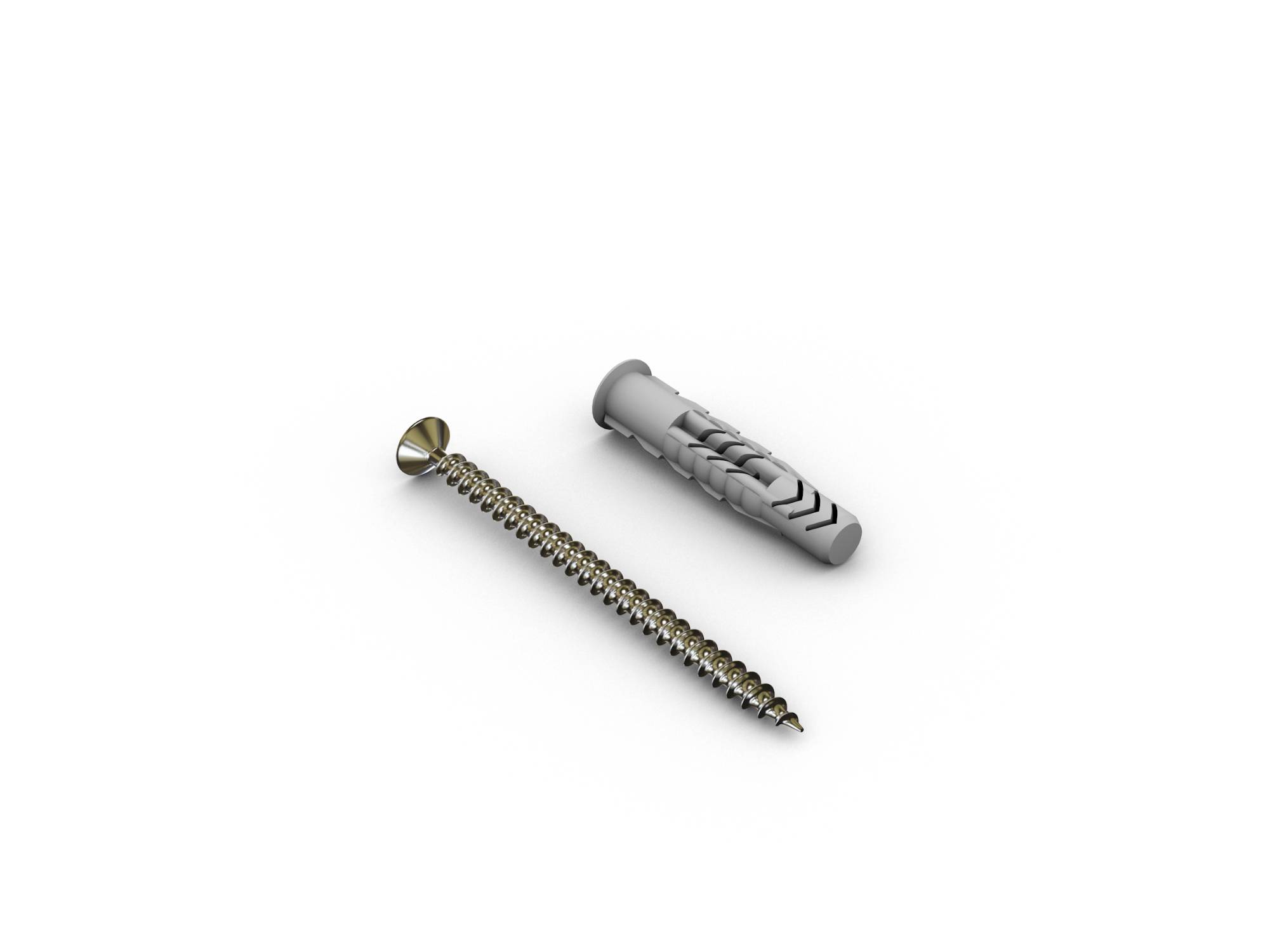

Set includes 10 × dowels (6.0 × 35 mm) and 10 × screws (4.5 × 60 mm).
General information
Color | Silver Grey |
Finish | Silver |
Material | Steel |
Shape | Other |
Length | 60 mm |
Width | 6 mm |
Height | 0 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | N13/375 Shower units N13/40 Shower units |
Product range |
Specification data - Carbon steel dowel bars
Dimensions | |
Length | Screw: 4.5 mm diameter x 60 mm. Dowel: 6 mm diameter x 35 mm. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Germany |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 3 |
 Revit | - | 3 |
Third party certifications
Literature
2022 wedi World of Systems brochure
