wedi Sanwell Shower Partition with Niche
Verified by manufacturer 2 months ago
041701101
041701101
BBA Agrément Certificate
Certificate type
EPD
Certificate type

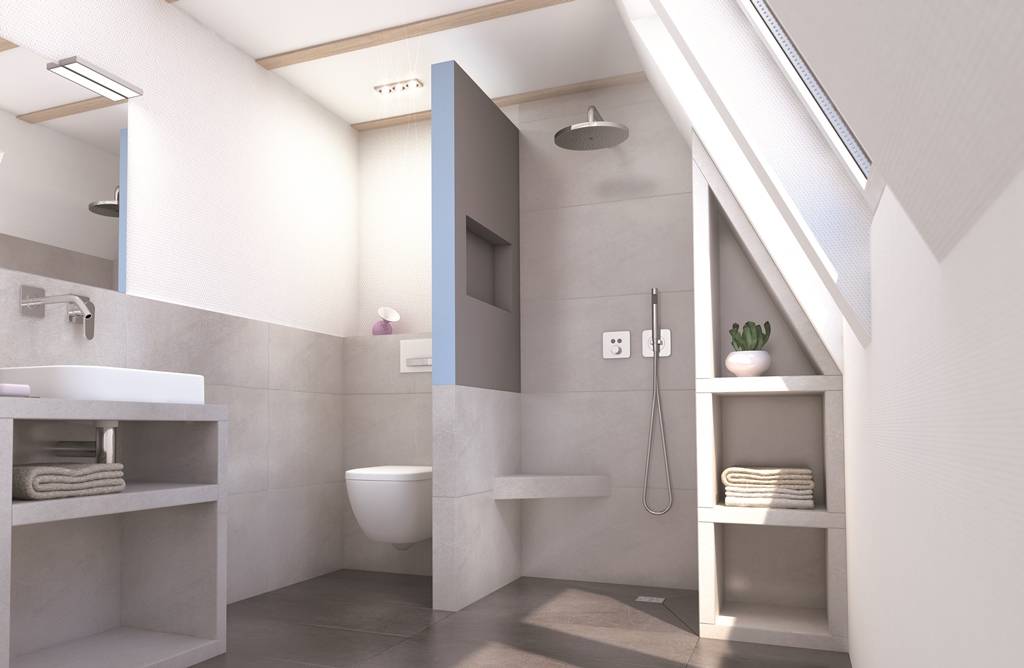

The wedi Sanwell wall elements are pre-fabricated products perfect for use as a shower partition wall with integrated niche.
Application
Shower partition wall or individual partition walls for shower cubicles.
Description

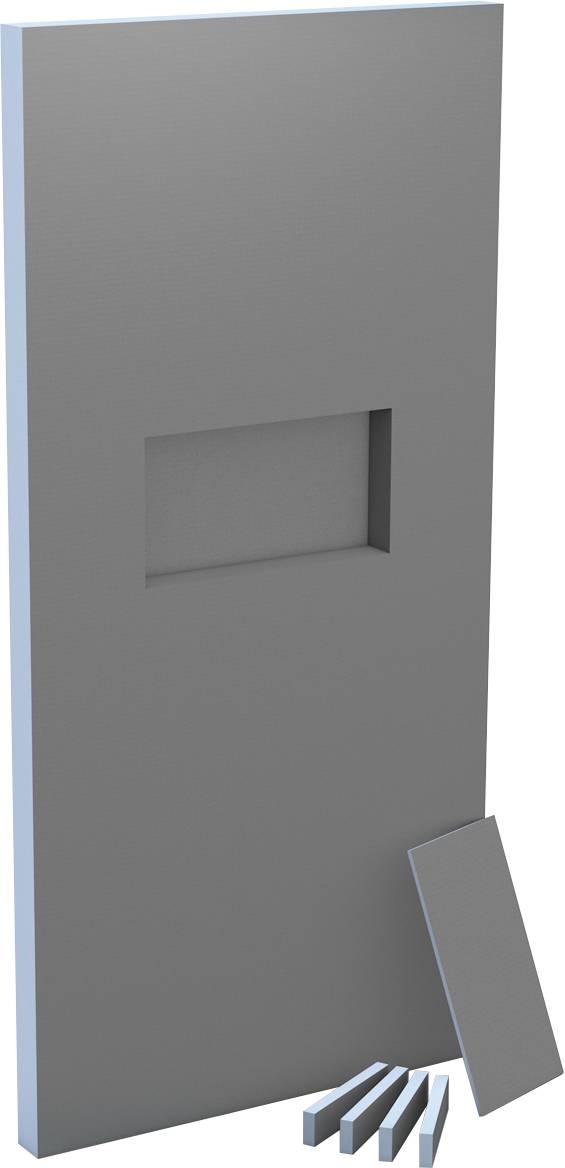

The sturdy wall element with integrated niche is ideal for use as a shower partition wall, can be installed particularly easily and can then be directly tiled. Here, both the overall size and the niche size in the wedi Sanwell wall element can be individually customised.
The Sanwell wall element with a width of 900 mm or 1200 mm including niche installed in the factory is perfect for use as a free-standing wall.
Made from waterproof polystyrene rigid foam, it is perfect for use as a shower partition wall, for example.
General information
Color | Blue Grey |
Finish | Cement coating |
Material | High density extruded polystyrene (XPS) |
Shape | Rectangle |
Length | 2500 mm |
Width | 900 mm 1200 mm |
Height | 100 mm Guidance for specification option: Material thickness Manufacturer guidanceMaterial thickness |
Warranty description | Ten year |
Uniclass |
Product range |
Specification data - Partition panels
Unit size | |
Thickness | 100 mm. |
Partition height (nominal) | 2500 mm. |
Width (nominal) | 1200 mm. |
Acoustic performance | 23 dB. |
CompressiveStrength | 0.08 N/mm². |
Density | 32 kg/m³. |
Fire performance | Class E. |
Temperature limiter | -50°C / +75°C. |
ThermalConductivity | 0.036 W/mK. |
Configuration | wedi Sanwell wall element XXL, with niche 30/60. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Germany |
Recyclability | XPS core is recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 25 % |
Third party certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 2 |
 Revit | - | 2 |
