wedi Sanbath Cube and Wave Wash Stand / Basin - Ready to tile wash stand / basin
Verified by manufacturer 2 months ago
073606000
073606000
BBA Agrément Certificate
Certificate type
Prefabricated wash basin/ stand for individual tiling.
Application
For private and commercial use indoors with a direct contact with tap and cleaning water.
Description

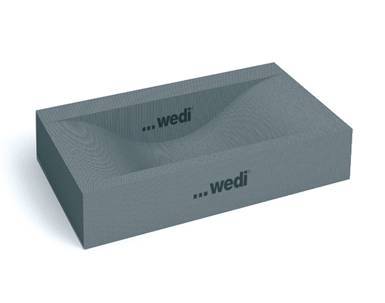

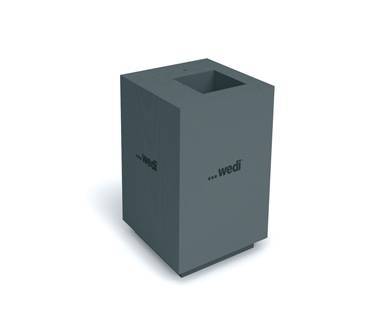

Sanbath Cube stands out through its clear lines and sleek elegance. Sanbath Wave is setting new trends in the wellness bathrooms with its wavy forms.
All elements from the Sanbath series are ready to assemble and have the same waterproof core as the wedi building boards. After setting up and connecting the elements, they can be tiled straight away.
Features and benefits:
- Suitable for direct tiling.
- Waterproof.
- Heat insulating.
- Stable and lightweight.
- The wash basin is prepared for installation of siphon (1¼“) and fittings (connection DN 50).
- Sanbath Wave is supplied with one wall fixing (only for flush-mounted fitting).
- CO²-foamed, extruded polystyrene rigid foam with closed cell structure and flame-retardant additive. The polystyrene rigid foam is hydrochlorofluorocarbon (HCFC) and chlorofluorocarbon (CFC) free.
General information
Color | Grey |
Finish | Cement Unfinished |
Material | High density extruded polystyrene (XPS) |
Shape | Rectangle Square |
Size | Manufacturer guidanceTwo of the shelf sizes: 570 x 570 x 925 mm (floor mounted wash stand) 1000 x 550 x 200 mm (floating wash basin) bespoke sizes available |
Length | 570 mm Guidance for specification option: 570 x 570 x 925 mm (floor mounted wash stand) 1000 mm Guidance for specification option: 1000 x 550 x 200 mm (floating wash basin) Bespoke Guidance for specification option: bespoke sizes available Manufacturer guidanceTwo of the shelf sizes: 570 x 570 x 925 mm (floor mounted wash stand) 1000 x 550 x 200 mm (floating wash basin) bespoke sizes available |
Width | 570 mm Guidance for specification option: 570 x 570 x 925 mm (floor mounted wash stand) 550 mm Guidance for specification option: 1000 x 550 x 200 mm (floating wash basin) Bespoke Guidance for specification option: bespoke sizes available Manufacturer guidanceTwo of the shelf sizes: 570 x 570 x 925 mm (floor mounted wash stand) 1000 x 550 x 200 mm (floating wash basin) bespoke sizes available |
Height | 925 mm Guidance for specification option: 570 x 570 x 925 mm (floor mounted wash stand) 200 mm Guidance for specification option: 1000 x 550 x 200 mm (floating wash basin) Bespoke Guidance for specification option: bespoke sizes available Manufacturer guidanceTwo of the shelf sizes: 570 x 570 x 925 mm (floor mounted wash stand) 1000 x 550 x 200 mm (floating wash basin) bespoke sizes available |
Warranty description | Ten year |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Product range |
Specification data - Countertop washbasins
Form | wedi sanbath cube wash stand, vanity top (inset). |
Materials | |
Body | Extruded polystyrene (XPS) rigid form core. |
Size | 570 x 570 x 925 mm. |
Integral accessories | None.wedi 320 tile adhesive.wedi 610 – adhesive sealant.wedi tools joint reinforcement tape.Guidance for specification option: For Sanbath Wave only. wedi tools sealing tape.Guidance for specification option: For Sanbath Wave only. |
Compressive strength (minimum) at 10% compression | To EN 826, 0.25 N/mm². |
Modules of elasticity | To EN 826, 10–18 N/mm². |
ThermalConductivity | To EN 13164, 0.033 W/mK. |
TensileStrength | To EN 1607, 0.45 N/mm². |
ShearModulus | To EN 12090, 7 N/mm². |
Compacted bulk density | To EN 1602, 32 kg/m³. |
Water vapour diffusion resistance | To EN 12086, 100 µ. |
Water absorption | To EN 12087, ≤1.5% by volume. |
Co-efficient of linear thermal expansion | 0.07 mm/mK. |
Temperature limiter | -50°C to +75°C. |
Fire performance | Class E. |
Global warming potential (GWP) | 1. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Recyclability | XPS core fully recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 25 % |
Third party certifications
Literature
2019 Product Brochure
2022 wedi World of Systems brochure

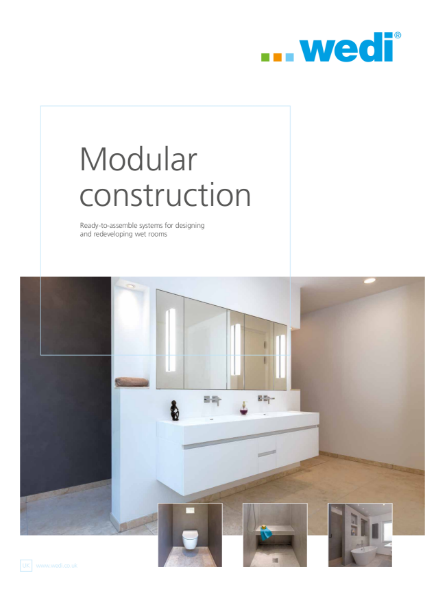

2020 wedi Modular construction brochure
wedi at a glance 2022
