wedi Sanbath Cube and Wave Bathtubs - Ready to tile bathtubs made of XPS

Verified by manufacturer 2 months ago

073607001

Wedi Systems (UK) Ltd Variant:
Third party certifications:
  • European Technical Approval (ETA)

    European Technical Approval (ETA)

    Certificate type

Prefabricated bathtubs for individual tiling.

Jump to:
+44 (0)161 864 2336 Website

Application

For private and commercial use indoors with a direct load from tap and cleaning water.

Description

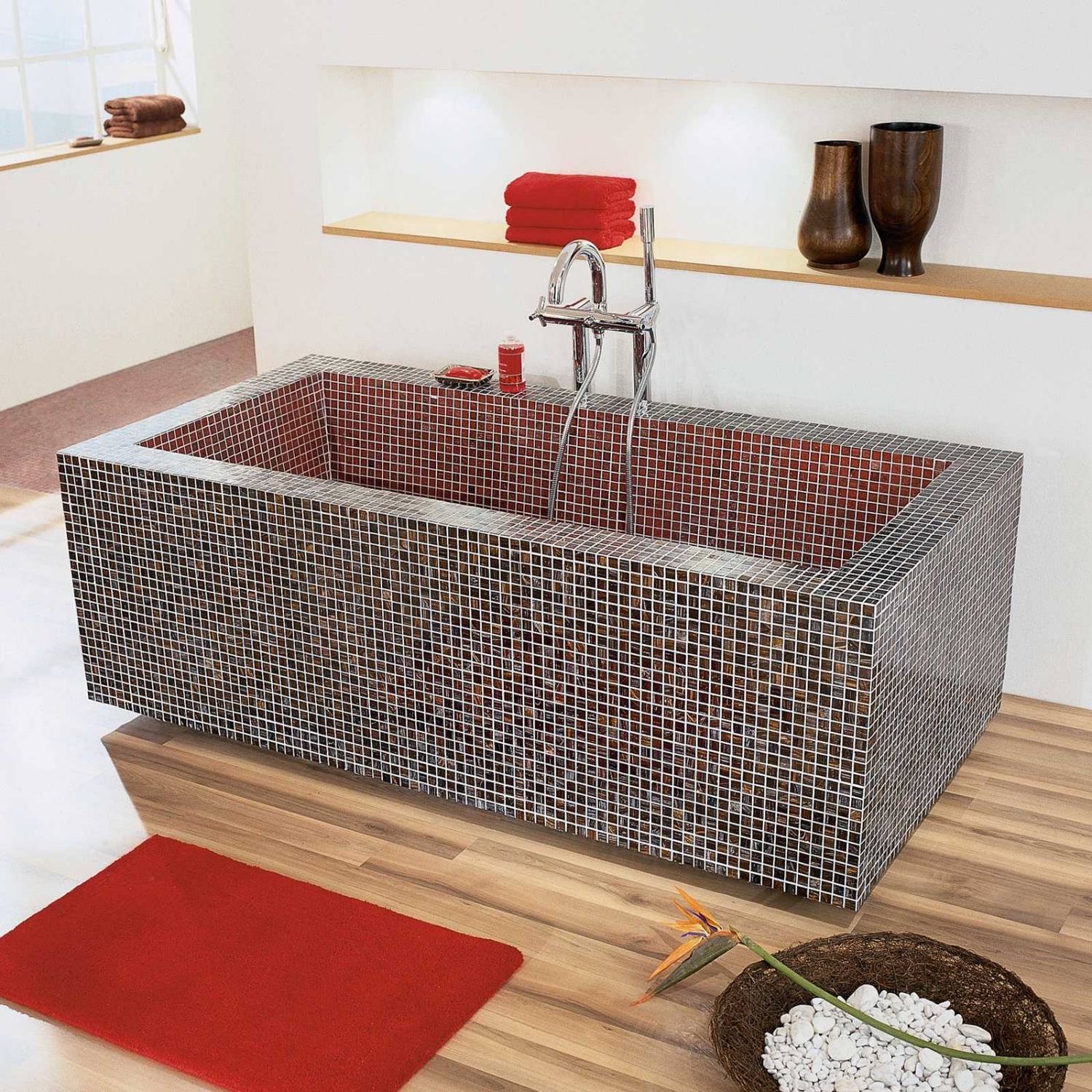

Sanbath Cube stands out through its clear lines and sleek elegance. Sanbath Wave is setting new trends in the wellness bathrooms with its wavy forms.

All elements from the Sanbath series are ready to assemble and have the same waterproof core as the tried-and-tested wedi building boards. After setting up and connecting the elements, they can be tiled straight away.


Features and benefits:

  • Ready to install bathtub.
  • Suitable for direct tiling.
  • Waterproof.
  • Heat insulating.
  • Stable and lightweight.
  • Sealed, built-in drain, overflow fittings and frame included.
  • Connection DN 40/50, inspection chamber for provided fittings.
  • CO²-foamed, extruded polystyrene rigid foam with closed cell structure and flame-retardant additive. The polystyrene rigid foam is hydrochlorofluorocarbon (HCFC) and chlorofluorocarbon (CFC) free.
  • A+ rating in relation to Emissions Dans L'air Interieur.
  • Overflow capacity, 0.6 0 L/ second, 36 L/ minute (maximum).
  • Drain capacity, 1.0 L/ second, 60 L/ minute (maximum).

General information

Color

Grey

Finish

Unfinished

Manufacturer guidance

To be tiled

Material

High density extruded polystyrene (XPS)

Shape

Rectangle

Length

1800 mm

Bespoke

Width

850 mm

Bespoke

Height

625 mm

Bespoke

Warranty description

Ten year

Uniclass

Pr_40_20_06_08 BathsPrimary

CAWS

N13/35 Baths

N13/355 Baths

Product range

Design Line / Bathtubs & wash basins

Specification data - Baths

Form

wedi sanbath cube bath, rectangular.

Materials

Extruded polystyrene rigid foam core.

Size

1800 x 850 x 625 mm.

Water supply, overflow and waste holes

-

Water supply

No tap holes – drill as required.

Integral accessories

None.

wedi 320 tile adhesive.

wedi 610 – adhesive sealant.

wedi tools joint reinforcement tape.

Compressive strength (minimum) at 10% compression

To EN 826, 0.25 N/mm².

Elastic modulus

To EN 826, 10–18 N/mm².

ThermalConductivity

To EN 13164, 0.036 W/mK.

TensileStrength

To EN 1607, 0.45 N/mm².

ShearModulus

To EN 12090, 7 N/mm².

Compacted bulk density

To EN 1602, 32 kg/m³.

Water vapour diffusion resistance

To EN 12086, 100 µ.

Water absorption

To EN 12087, ≤1.5% by volume.

Co-efficient of linear thermal expansion

0.07 mm/mK.

Temperature limiter

-50°C to +75°C.

Fire performance

To EN 13501, Class E.

Global warming potential (GWP)

1.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Material

High density extruded polystyrene (XPS)

Recyclability

XPS core fully recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

25 %

Third party certifications

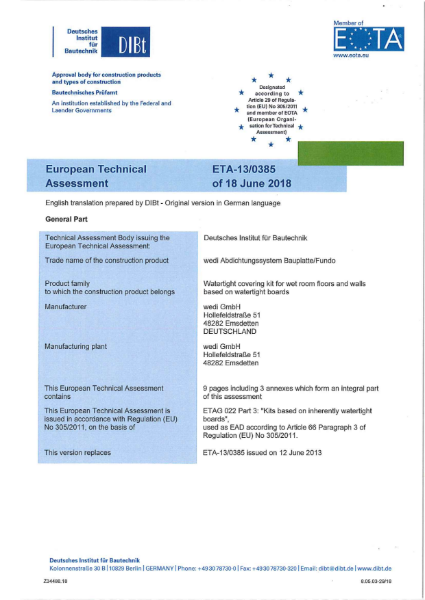

European Technical Approval (ETA)

European Technical Approval (ETA)

ETA - 13/0385
