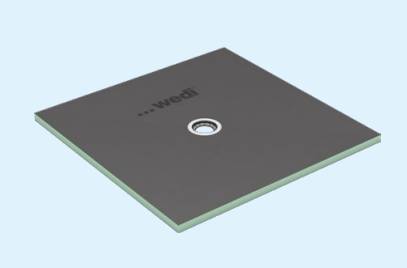

wedi Fundo Solido - Floor-Level Shower Element
Verified by manufacturer 1 day ago
Floor-level shower element made of 100% recycled PET foam with a special mortar coating, especially developed for vinyl / PVC floor coverings.
Application
Shower places with soft, PVC flooring such as:
- hospitals,
- private and public care facilities,
- private bathrooms.
Description
The Fundo Solido is a floor-level shower element for use beneath vinyl / PVC floor coverings. It can withstand high-pressure point loads, e.g. wheelchairs or walking aids. With the help of the wedi Fundo extension panels, the entire floor in the wet room can be realised in the wedi system – but the substrate must be able to support the loads that occur.
Features and benefits:
- Barrier-free shower element for vinyl / PVC coverings.
- Suitable substructure for high-pressure point loads.
- Waterproof installation of the PVC to the drain.
General information
Color | Grey |
Finish | Cement |
Material | Polyethylene terephthalate (PET) |
Shape | Rectangle |
Length | 900 mm 1200 mm 1500 mm |
Width | 900 mm 1200 mm |
Height | 40 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | N13/40 Shower units N13/375 Shower units |
Specification data - Shower trays
Classification data | |
Form | Rectangular. |
Materials | |
Body | PET foam with mortar coating. |
Finish and colour | Grey. |
Size | Manufacturer guidanceConsult manufacturer and insert requirements. |
Waste hole | Centre. |
Integral accessories | Stainless steel grid Ø115 mm. |
Thickness | 40 mm. |
Compressive load capacity | To ISO 844, 4 N/mm². |
Thermal conductivity (maximum) | To EN 13164, 0.043 W/mK. |
Density | To ISO 845, 200 kg/m³. |
Fire behaviour (to BS EN 13501-1) | E. |
Sustainability data
Country of product manufacture | Germany |
Material | Polyethylene terephthalate (PET) |
Recyclability | 92 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Expected Life | Lifetime |
Literature
Fundo Solido
