wedi Fundo Sealing Set

Verified by manufacturer 2 months ago

Wedi Systems (UK) Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • European Technical Approval (ETA)

    European Technical Approval (ETA)

    Certificate type

  • EPD

    EPD

    Certificate type

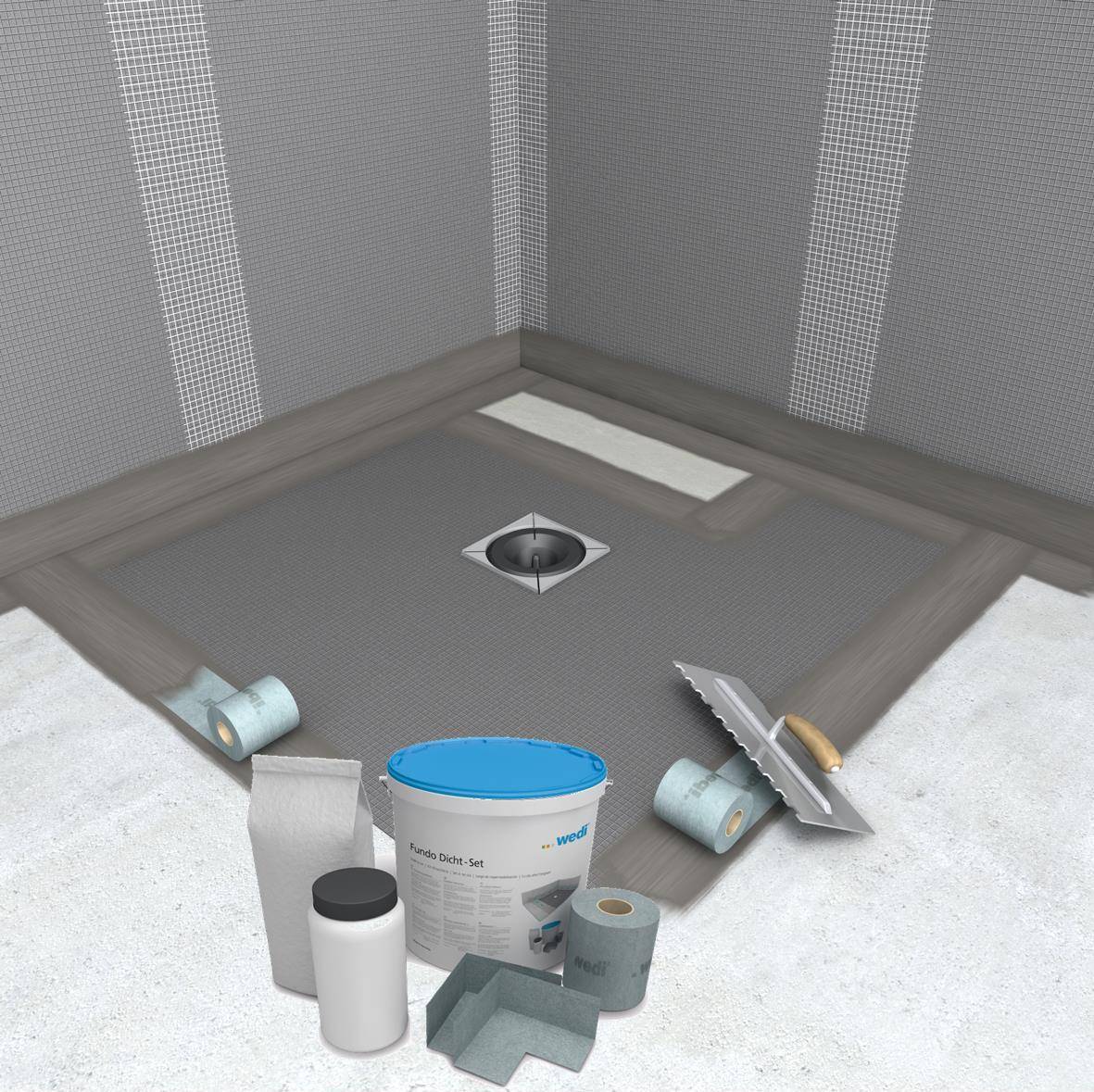

Two component waterproofing sealant for wedi Fundo, wedi Building Board and wedi Subliner. Tanking and sealing product, typically used for sealing the perimeter edge around a shower tray / former.

Jump to:
BOS
+44 (0)161 864 2336 Website

Application

For sealing wedi Fundo, wedi building board and wedi Subliner joints in wet areas, on a variety of substrates including screed and wooden flooring.

Description

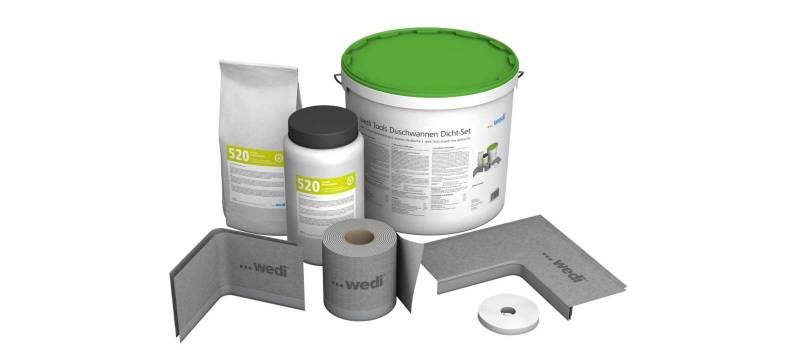

Bucket set consisting of a two component slurry sealant and wedi Tool sealing tape/ sealing corners for flexible joint sealing.


Features and benefits:

  • Waterproof and frost-resistant.
  • Non-ageing.
  • Not susceptible to environmental influences.
  • Bridges cracks, very reliable if cracks later occur in the substructure.
  • Entire system is 100% waterproof.
  • Safe and simple to work with.


General information

Color

Grey

Finish

Cement

Material

Cement

Shape

Formless

Length

10000 mm

Guidance for specification option:

Tape length is 10 metre

Manufacturer guidance

Tape length is 10 metre

Width

120 mm

Guidance for specification option:

Tape width is 120mm

Manufacturer guidance

Tape width is 120mm

Height

0.7 mm

Warranty description

Ten year

Uniclass

Pr_30_31_76_96 Waterproof gap filling sealantsPrimary

CAWS

N13/375 Shower units

N13/40 Shower units

Product range

Accessories / Sealing Sets
Accessories / Joint Tapes
Accessories / Sealants

Specification data - Waterproof gap filling sealants

Material

Powder component; special cement mortar with selected additives. Liquid component; modified acrylate dispersion.

Consumption (per layer applied)

Sufficient for 10 m of joint seals (approximately).

TemperatureRange

5°C to 30°C.

Drying time

Two hours (approximately).

Weather resistance

At 5°C: 10 hours, at 20°C: 5 hours (approximately).

Guidance for specification option:

Rain resistance.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

2

IFC
-

2

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

BBA certificate 14/5126 wedi Fundo Shower Elements

European Technical Approval (ETA)

European Technical Approval (ETA)

ETA - 13/0385

EPD

EPD

Environmental Product Declaration (EPD) - wedi Fundo shower elements
