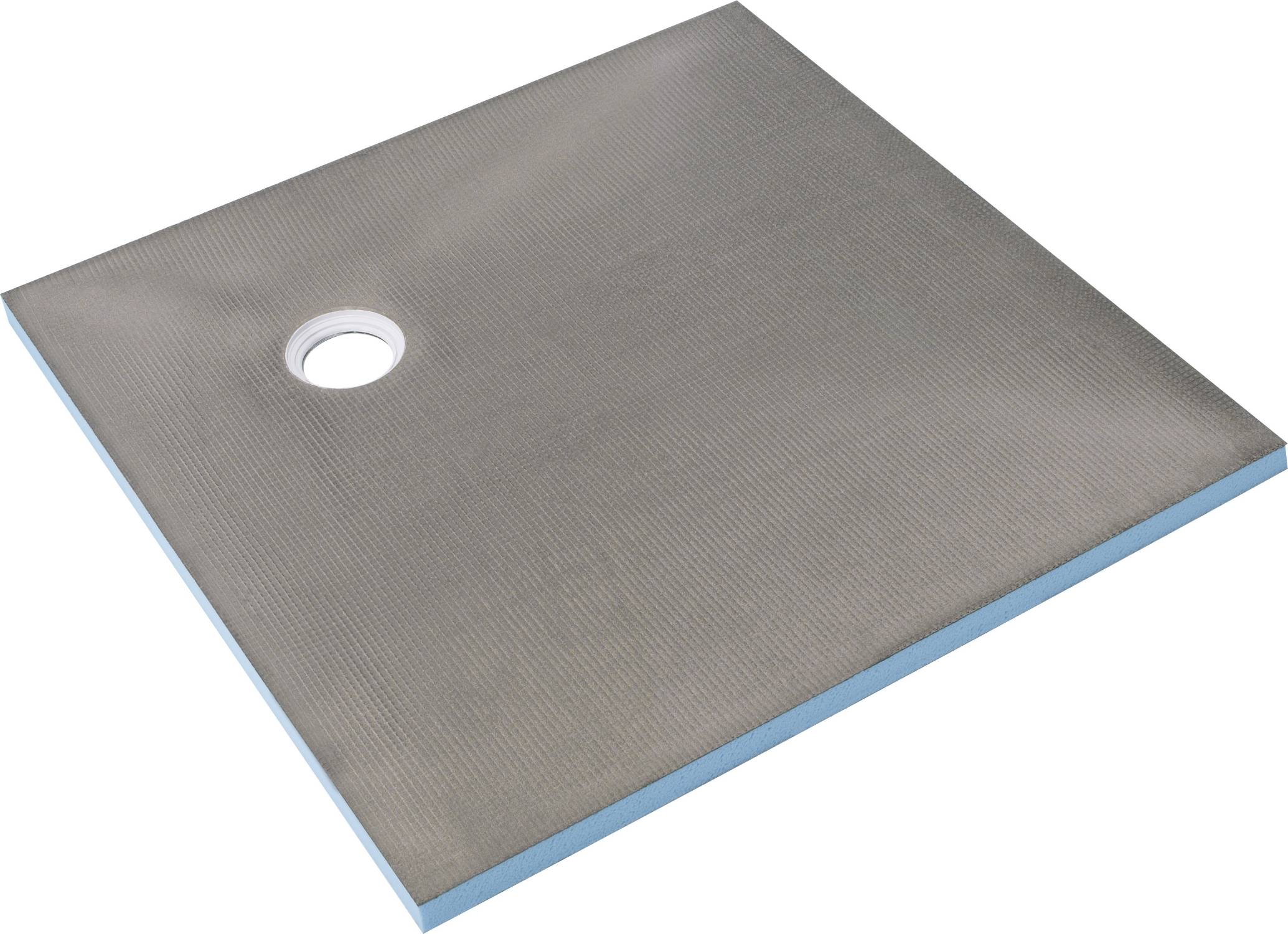

wedi Fundo Primo Floor Element (shower tray / former), Offset Drain
Verified by manufacturer 2 months ago
073736174-offset drain
073736174-offset drain
BBA Agrément Certificate
Certificate type
Floor-level shower element for direct tiling with horizontal or vertical floor drain for new build and renovation projects.
Application
- Private residential construction.
- Public buildings and workplaces complying with DIN 18024-2.
- Accessible dwellings complying with DIN 18025-1 and DIN 18025-2.
- As a construction seal combined with tile and slab coverings of load class A0, A and B.
Description
Composite floor-level shower element for direct tiling with horizontal or vertical floor drain for new build and renovation projects.
Features and benefits:
- Manufactured from extruded polystyrene (XPS) rigid foam and can be installed on almost any surface as an individual tileable floor-level shower system.
- It has a special waterproof coating and is available with a central or offset floor drain.
- To be used in conjunction with a Fundo drain.
- Entire system is 100% waterproof.
- Simple and safe to work with - tested by those in the trade.
- CE Marked.
General information
Color | Blue Guidance for specification option: Core Grey Guidance for specification option: Coating |
Finish | Cement |
Material | High density extruded polystyrene (XPS) Guidance for specification option: A waterproof extruded polystyrene rigid foam core with a special, resistant and glass fibre reinforced cement coating |
Shape | Rectangle |
Length | 1200 mm 1400 mm 1600 mm 1800 mm 2000 mm |
Width | 900 mm 1000 mm |
Height | 40 mm |
Warranty description | Ten year Manufacturer guidanceAvailable on request |
Uniclass | |
CAWS | N13/375 Shower units N13/40 Shower units |
Product range |
Specification data - Shower trays
Standards | To BS EN 826; BS EN 1606; to BS EN 13164; to DIN EN 1602. |
Form | Rectangular. |
Materials | |
Body | Extruded polystyrene core and glass fibre reinforced cement coating. |
Finish and colour | Grey. |
Size | 1200 x 900 x 40 mm. |
Waste hole | Offset. |
Integral accessories | wedi Fundo Sealing Set.Guidance for specification option: Bucket set, consisting of a two component sealant, wedi Tools sealing tape and sealing corners for flexible joint sealing. 320 Flexible Cement Based Adhesive520 Cement Based Waterproof Membrane.610 Adhesive Sealant.Fundo Sealing Set.Joint Reinforcement Tape. |
wedi Fundo Sealing Set | Required. Not required. |
Compacted bulk density | 32 kg/m³. Guidance for specification option: to DIN EN 1602. |
Compressive Strength (at 10% deformation): | 0.25 N/mm². Guidance for specification option: to BS EN 826. |
Compressive strength - Permanent | 0.08 N/mm². Guidance for specification option: Long-term compressive strength (50 years, at ≤2% compression, to BS EN 1606). |
Fire behaviour (to BS EN 13501-1) | E. Guidance for specification option:
|
OperationTemperatureRange | Temperature limit: -50°C to +75°C. |
ThermalConductivity | 0.033 W/mK. Guidance for specification option: to BS EN 13164. |
Thickness | 40 mm. |
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 25 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
 IFC | - | 2 |
