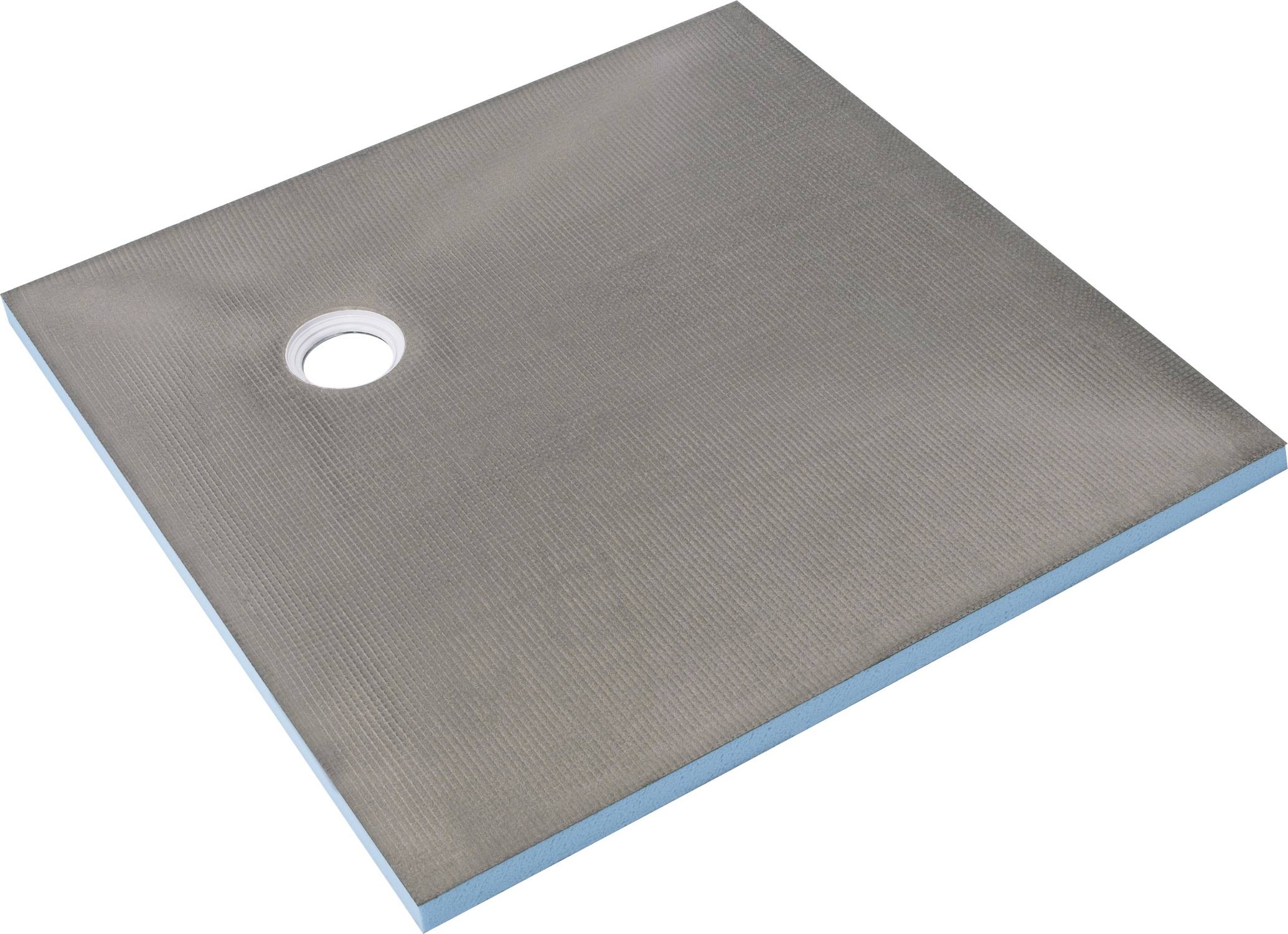

wedi Fundo Primo Floor Element Corner Drain - Shower tray/ shower former

Name: wedi Fundo Primo Floor Element Corner Drain - Shower tray/ shower former
Brand: Wedi Systems (UK) Ltd
SKU: hK5gzfrxe7wwb98x8QaYwX

Verified by manufacturer 29 days ago

073736170 (900 x 900 x 40 mm)

Third party certifications:

Floor-level shower element for direct tiling with horizontal or vertical floor drain for new build and renovation projects.

Jump to:

BOS

Application

Private residential construction.
Public buildings and workplaces complying with DIN 18024-2.
Accessible dwellings complying with DIN 18025-1 and DIN 18025-2.
As a construction seal combined with tile and slab coverings of load class A0, A and B.

Composite floor-level shower element for direct tiling with horizontal or vertical floor drain for new build and renovation projects.

Features and benefits:

Manufactured from extruded polystyrene (XPS) rigid foam and can be installed on almost any surface as an individual tileable floor-level shower system.
It has a special waterproof coating and is available with a central or offset floor drain.
To be used in conjunction with a Fundo drain.
Entire system is 100% waterproof.
Simple and safe to work with - tested by those in the trade.
CE Marked.

Color	Blue Guidance for specification option: Core Grey Guidance for specification option: Coating
Finish	Cement
Material	High density extruded polystyrene (XPS) Guidance for specification option: A waterproof extruded polystyrene rigid foam core with a special, resistant and glass fibre reinforced cement coating
Shape	Square
Length	900 mm 1000 mm 1200 mm 1500 mm
Width	900 mm 1000 mm 1200 mm 1500 mm
Height	40 mm
Warranty description	Ten year Manufacturer guidance Available on request

Uniclass	Pr_40_20_06_84 Shower traysPrimary
CAWS	N13/375 Shower units N13/40 Shower units

Product range	Shower Systems / Shower Tray Formers

Standards	To BS EN 826; to BS EN 1606; to BS EN 13164; to DIN EN 1602.
Form	Square.
Materials	-
Body	Extruded polystyrene core with glass fibre reinforced cement coating.
Finish and colour	Grey surface with a blue rigid foam core.
Size	900 x 900 x 40 mm.
Waste hole	Corner.
Integral accessories	wedi Fundo Sealing Set. Guidance for specification option: Bucket set, consisting of a two component sealant, wedi Tools sealing tape and sealing corners for flexible joint sealing. 320 Flexible Cement Based Adhesive. 520 Cement Based Waterproof Membrane. 610 Adhesive Sealant. Fundo Sealing Set. Joint Reinforcement Tape.

wedi Fundo Sealing Set	Required. Not required.
Compacted bulk density	32 kg/m³. Guidance for specification option: to DIN EN 1602.
Compressive Strength (at 10% deformation):	0.25 N/mm². Guidance for specification option: Compressive resistance (at 10% compression, to BS EN 826).
Compressive strength - Permanent	0.08 N/mm². Guidance for specification option: Long-term compressive strength (50 years, at ≤2% compression, to BS EN 1606).
Fire behaviour (to BS EN 13501-1)	E. Guidance for specification option: Fire behaviour (to DIN 4102): B1. Fire behaviour (to BS EN 13501-1): E.
OperationalTemperatureRange	Temperature limit: -50°C to +75°C.
ThermalConductivity	0.033 W/mK. Guidance for specification option: to BS EN 13164.
Thickness	40 mm.

Country of material origin	Germany
Country of product manufacture	Germany
Recyclability	100
Recycled content As defined in clause 7.8 of BS EN ISO 14021	25 %
