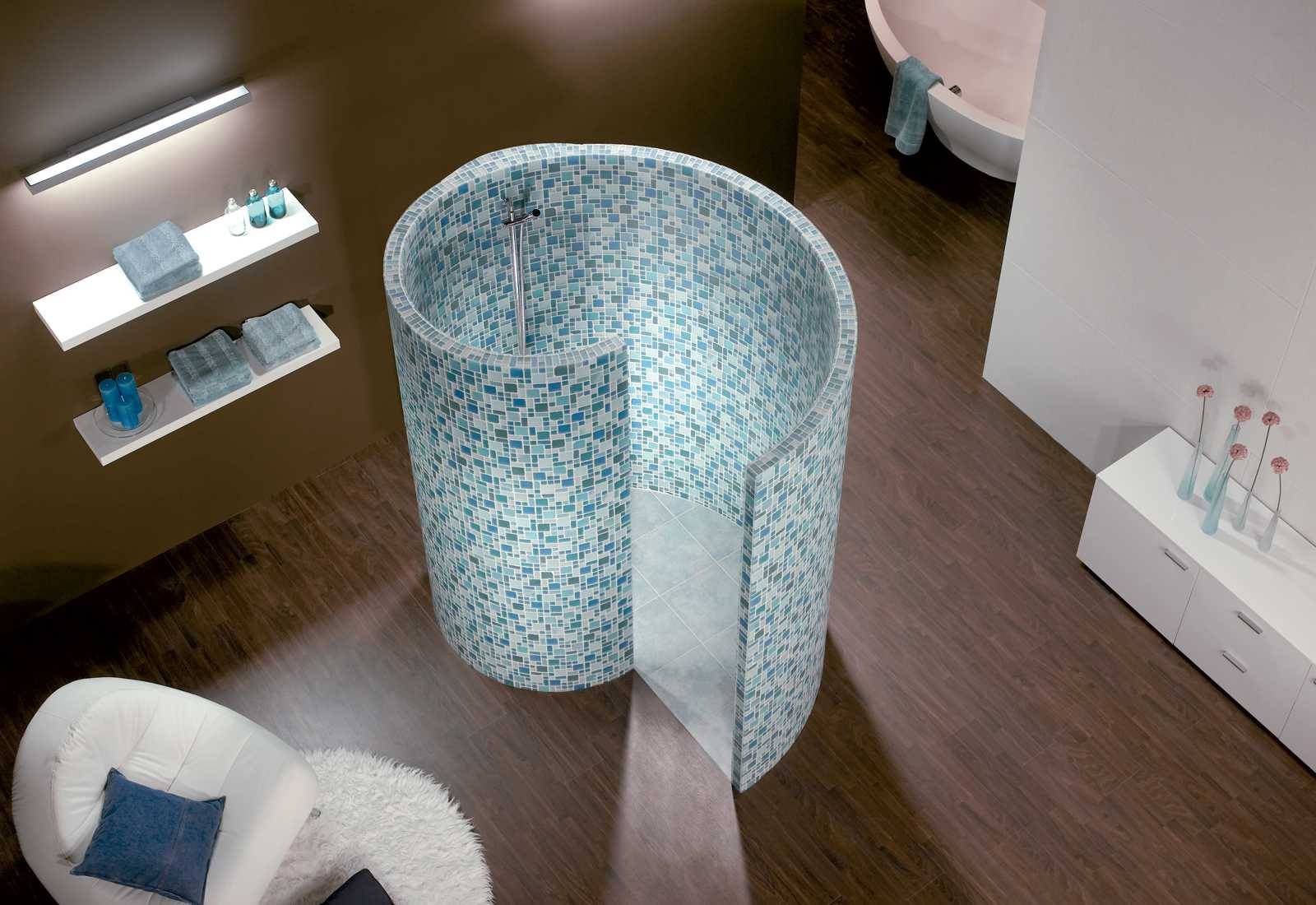

wedi Fundo Nautilo - Spiral shaped shower enclosure

Name: wedi Fundo Nautilo - Spiral shaped shower enclosure
Brand: Wedi Systems (UK) Ltd
SKU: hApQH7XSLhFTqEfuAFQsSr

Verified by manufacturer 2 months ago

073736065

Wedi Systems (UK) Ltd

Third party certifications:

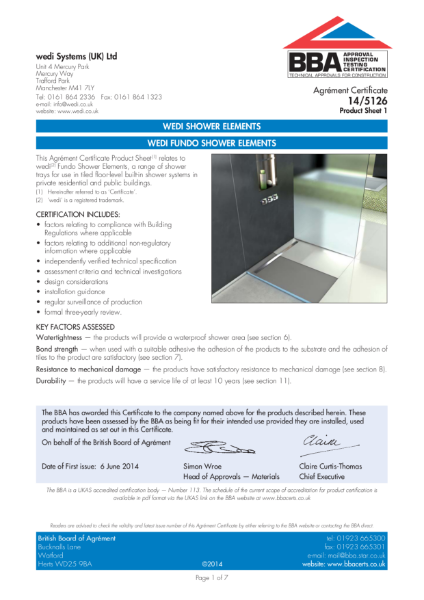

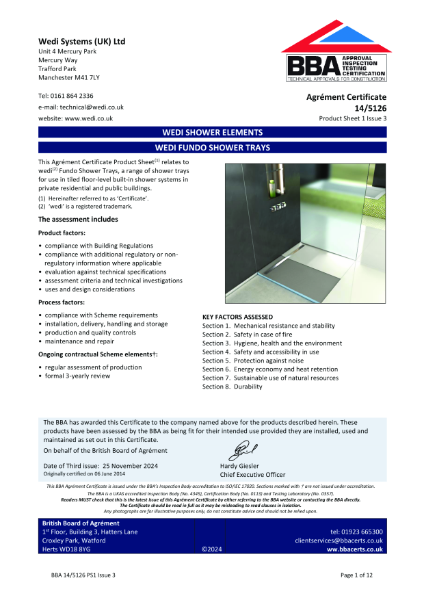

BBA Agrément Certificate
Certificate type

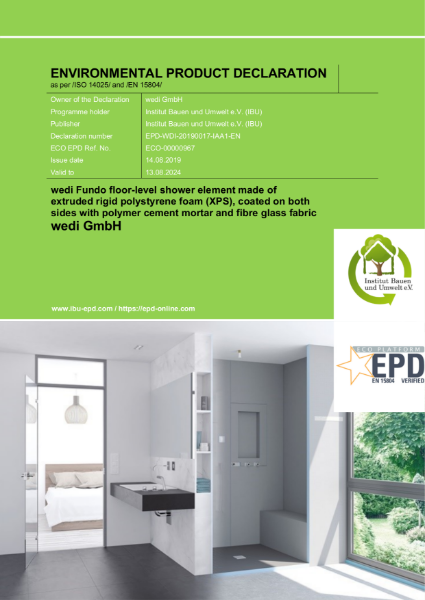

EPD
Certificate type
European Technical Approval (ETA)
Certificate type

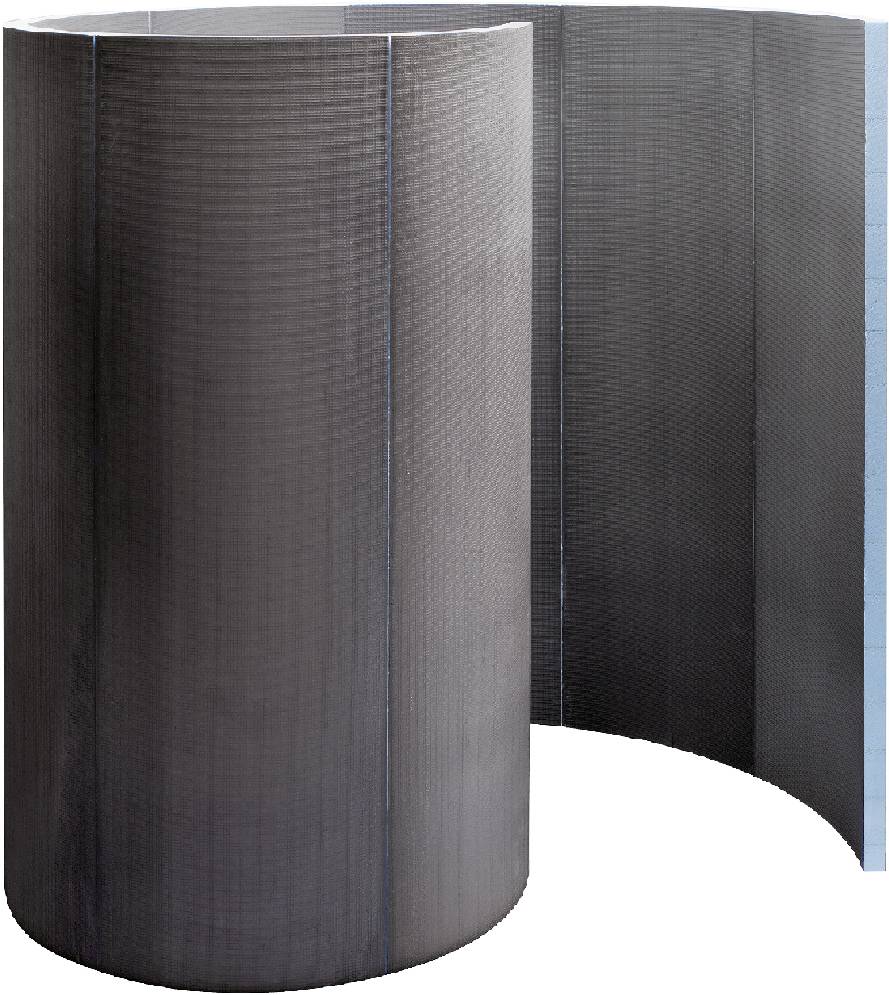

Spiral floor-level shower element and wall kit.

Jump to:

BOS

+44 (0)161 864 2336 Website

Application

Private residential construction.
Public buildings and workplaces complying with DIN 18024-2.
Accessible dwellings complying with DIN 18025-1 and DIN 18025-2.
As a construction seal combined with tile and slab coverings of load class A0, A and B.

Description

Composite spiral floor-level corner shower element and wall kit for direct tiling with horizontal or vertical floor drain for new build and renovation projects.

Features and benefits:

CE Marked.
Manufactured from extruded polystyrene (XPS) rigid foam.
Can be installed on almost any surface as an individual tileable floor-level shower system.
It has a special waterproof coating.
Should be used in conjunction with a Fundo drain.

General information

Color	Blue Grey
Finish	Cement Unfinished
Material	High density extruded polystyrene (XPS)
Shape	Other
Size	- Manufacturer guidance 1890 x 1515 x 2050 mm
Length	1890 mm
Width	1515 mm
Height	2050 mm
Warranty description	Ten year

Uniclass	Pr_40_20_06_84 Shower traysPrimary
CAWS	N13/375 Shower units N13/40 Shower units

Product range	Shower Systems / Shower Tray Formers Design Line / Designer showers

Specification data - Shower trays

Materials	-
Body	Extruded polystyrene (XPS).
Finish and colour	Grey surface with a blue rigid foam core.
Size	1890 x 1515 mm.

Type	Left entry.
wedi Fundo Sealing Set	Required. Not required.
Thickness	50 mm.
Density	To DIN EN 1602, 32 kg/m³.
Compressive Strength (at 10% deformation)	To BS EN 826, 0.25 N/mm².
Fire performance	To DIN 4102, B1 and to BS EN 13501-1. E.
Temperature limiter	-50°C to +75°C.
ThermalConductivity	To BS EN 13164, 0.033 W/mK.
Third-party certification	BBA Agrément Certificate.

Sustainability data

Contains Red List materials	No
Country of material origin	Germany
Country of product manufacture	Germany
Recyclability	XPS core fully recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	25 %
