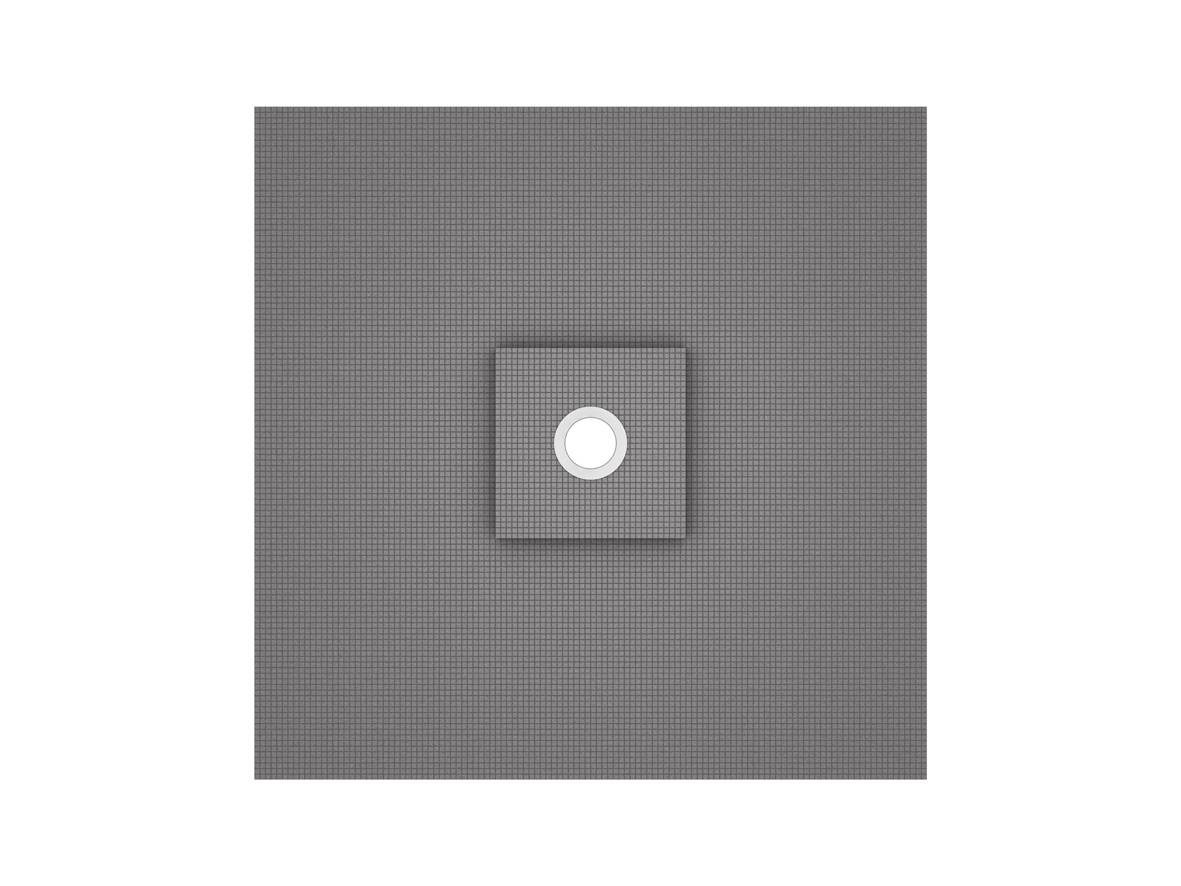

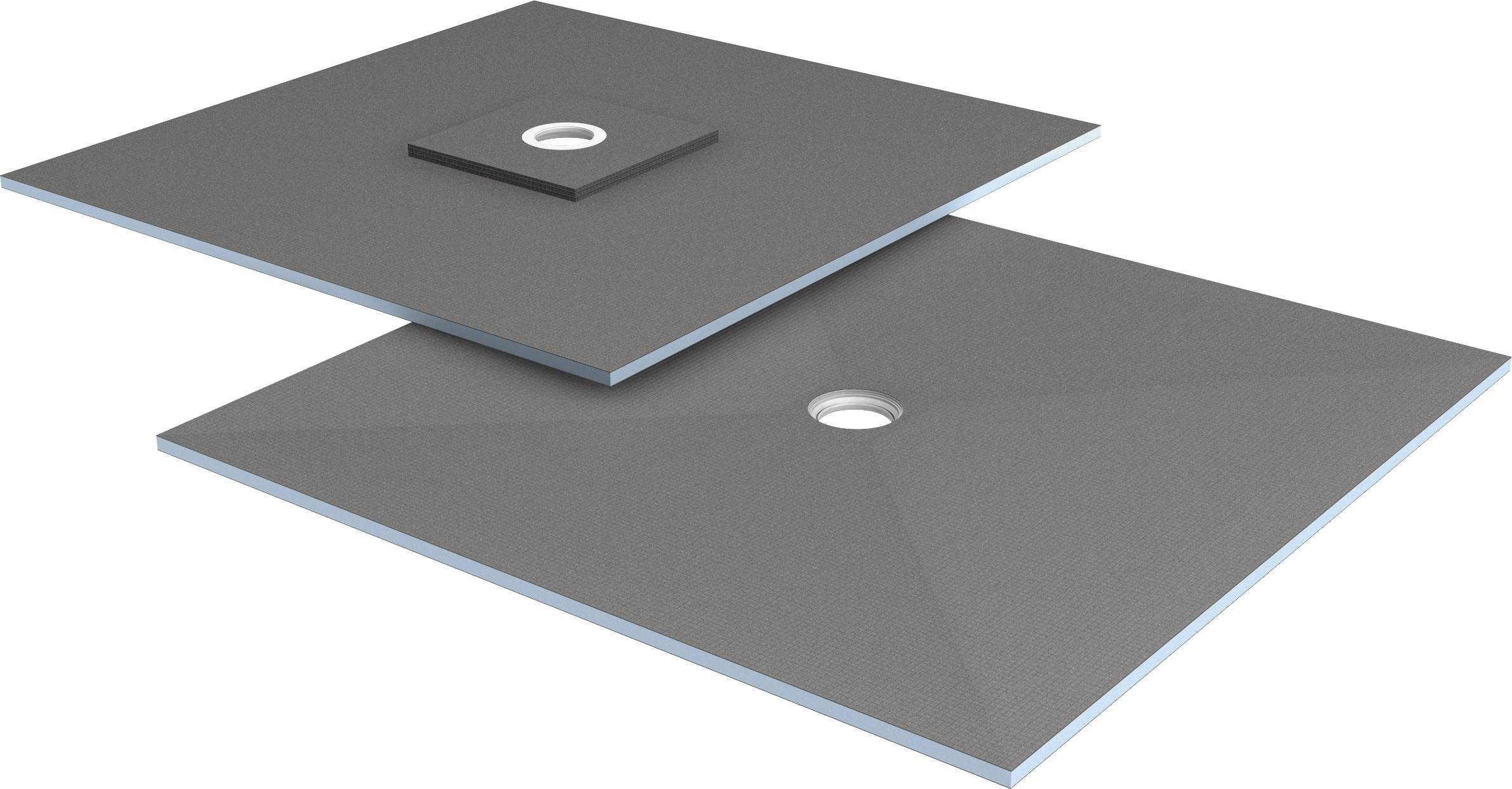

wedi Fundo Ligno Floor Element, Centre Drain - Shower tray former

Verified by manufacturer 1 month ago

073732011 (900 x 900 x 20 mm)

Wedi Systems (UK) Ltd Variant:
Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • EPD

    EPD

    Certificate type

  • European Technical Approval (ETA)

    European Technical Approval (ETA)

    Certificate type

Floor-level shower element for direct tiling with horizontal or vertical floor drain for new-build and renovation projects. For installation on or in suspended timber floors.

Jump to:
BOS
+44 (0)161 864 2336 Website

Application

To be used in conjunction with a Fundo drain.

Suitable for:

  • Private residential construction.
  • Public buildings and workplaces complying with DIN 18040-1.
  • Accessible dwellings complying with DIN 18040-2.
  • As a construction seal combined with tile and slab coverings of load class A0.

Description

Floor-level shower element for direct tiling with horizontal or vertical floor drain for new-build and renovation projects. For installation on or in suspended timber floors.


The wedi Fundo system can be installed on almost any surface as an individual tileable floor-level shower system. The system includes a thick foam core with special coating, a specified surface slope and a custom-fit system floor drain.


Features and benefits:

  • Centre drain.
  • CE Marked.

General information

Color

Grey

Blue

Finish

Cement

Unfinished

Material

High density extruded polystyrene (XPS)

Shape

Square

Rectangle

Length

900 mm

1200 mm

1500 mm

1600 mm

Bespoke

Width

900 mm

1200 mm

1500 mm

Bespoke

Height

20 mm

Bespoke

Warranty description

Ten year

Uniclass

Pr_40_20_06_84 Shower traysPrimary

CAWS

N13/375 Shower units

N13/40 Shower units

Product range

Shower Systems / Shower Tray Formers

Specification data - Shower trays

Form

Square.

Materials

-

Body

A waterproof extruded polystyrene rigid foam core with a special, resistant and glass, fibre reinforced cement coating.

Finish and colour

Resistant and glass fibre reinforced cement coating.

Size

900 x 900 x 20/ 41 mm.

Waste hole

Centre drain.

Compacted bulk density

To DIN EN 1602): 32 kg/m³.

Compression strength

At 10% compression, to BS EN 826): 0.25 N/mm².

Guidance for specification option:

Long-term compressive strength (50 years, at ≤2% compression, to BS EN 1606): 0.08 N/mm².


FireRating

To DIN 4102): B1. To BS EN 13501-1): E.

TemperatureRange

-50°C to +75°C.

ThermalConductivity

To BS EN 13164): 0.036 W/mK.

Accessories

Not required.

320 Flexible Cement Based Adhesive.

520 Cement Based Waterproof Membrane.

610 Adhesive Sealant.

Fundo Sealing Set.
