Verified by manufacturer 8 months ago
073732011 (900 x 900 x 20 mm)
BBA Agrément Certificate
Certificate type
EPD
Certificate type
European Technical Approval (ETA)
Certificate type

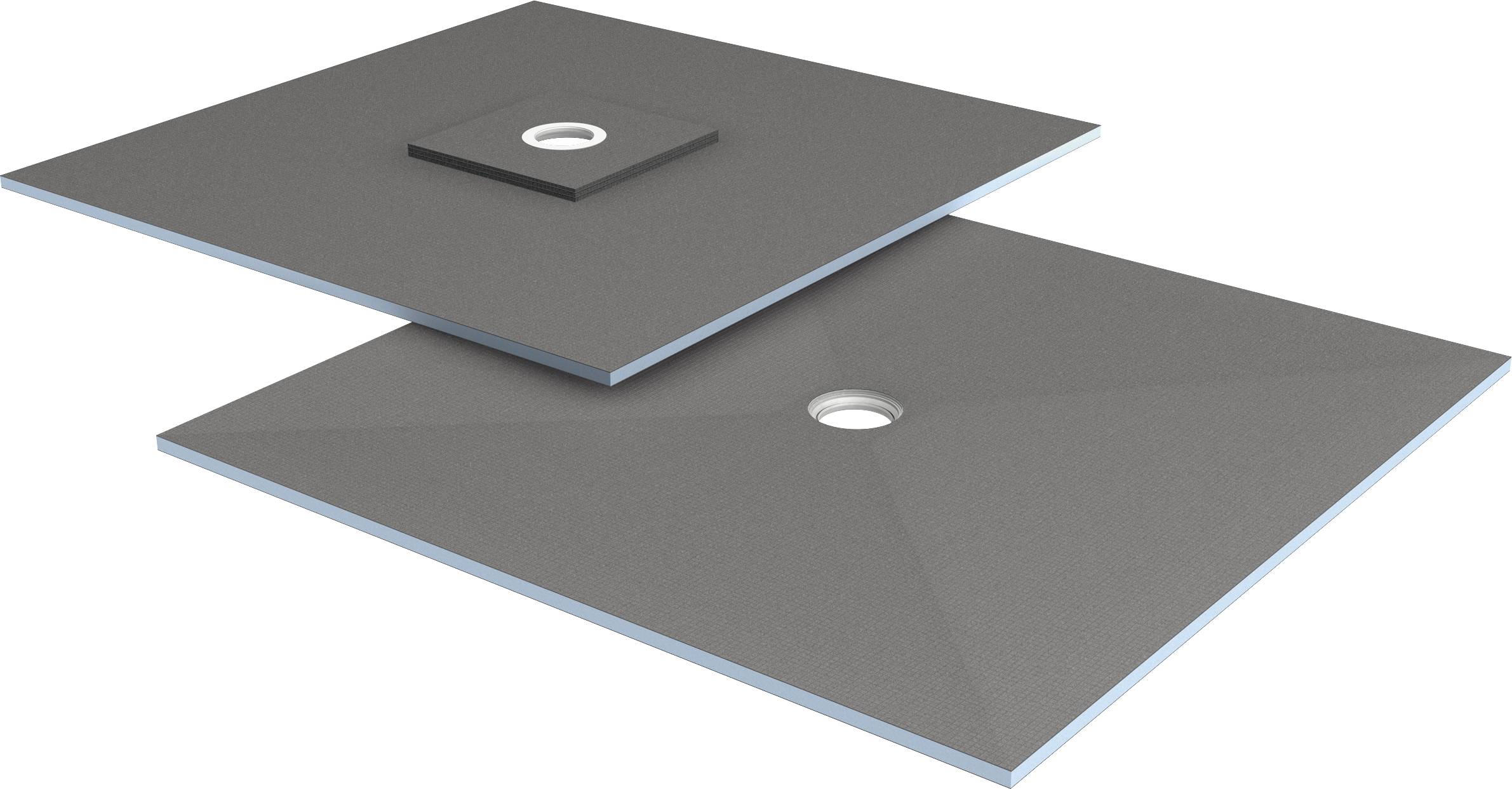

Floor-level shower element for direct tiling with horizontal or vertical floor drain for new-build and renovation projects. For installation on or in suspended timber floors.
To be used in conjunction with a Fundo drain.
Suitable for:
Floor-level shower element for direct tiling with horizontal or vertical floor drain for new-build and renovation projects. For installation on or in suspended timber floors.
The wedi Fundo system can be installed on almost any surface as an individual tileable floor-level shower system. The system includes a thick foam core with special coating, a specified surface slope and a custom-fit system floor drain.
Features and benefits:
Color | Grey Blue |
Finish | Cement Unfinished |
Material | High density extruded polystyrene (XPS) |
Shape | Square Rectangle |
Length | 900 mm 1200 mm 1500 mm 1600 mm Bespoke |
Width | 900 mm 1200 mm 1500 mm Bespoke |
Height | 20 mm Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | N13/375 Shower units N13/40 Shower units |
Product range |
Form | Square. |
Materials | |
Body | A waterproof extruded polystyrene rigid foam core with a special, resistant and glass, fibre reinforced cement coating. |
Finish and colour | Resistant and glass fibre reinforced cement coating. |

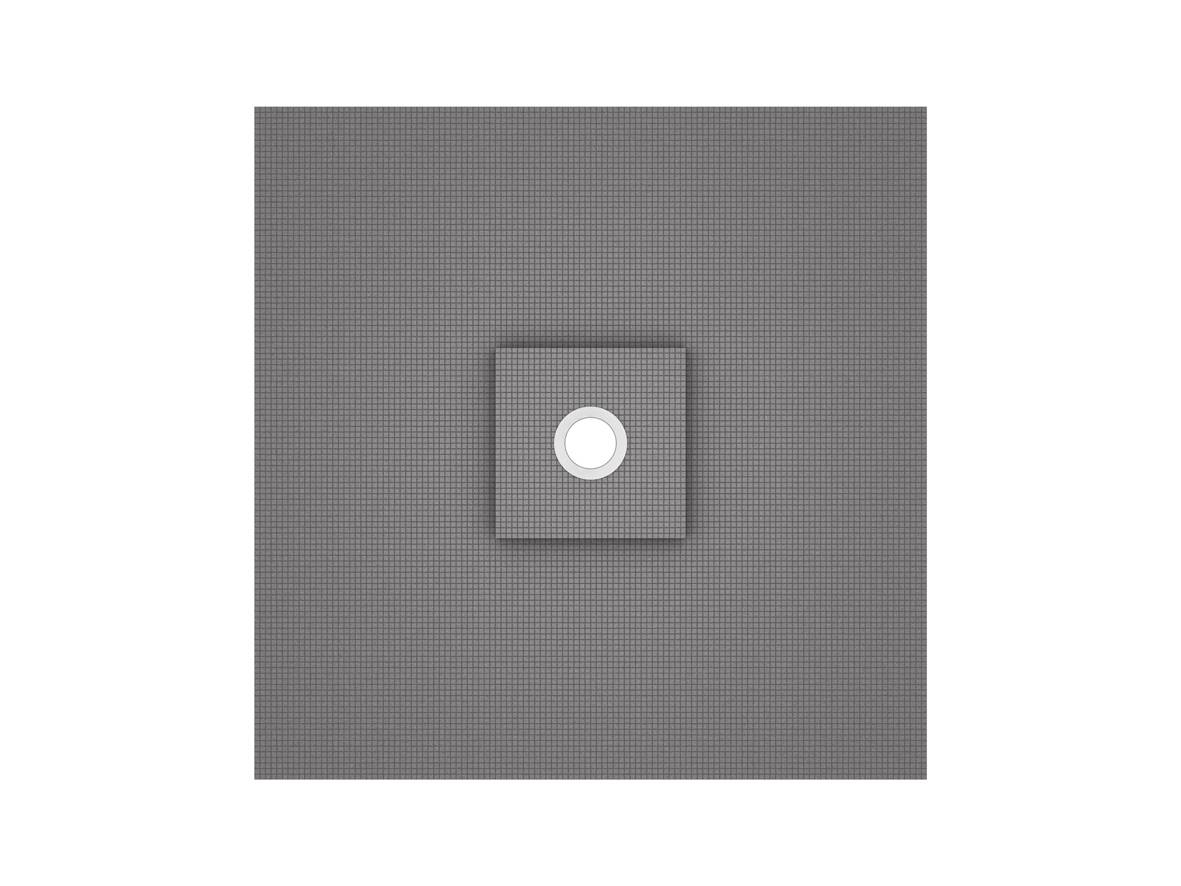

Size | 900 x 900 x 20/ 41 mm. |
Waste hole | Centre drain. |
Compacted bulk density | To DIN EN 1602): 32 kg/m³. |
Compression strength | At 10% compression, to BS EN 826): 0.25 N/mm². Guidance for specification option: Long-term compressive strength (50 years, at ≤2% compression, to BS EN 1606): 0.08 N/mm². |
FireRating | To DIN 4102): B1. To BS EN 13501-1): E. |
TemperatureRange | -50°C to +75°C. |
ThermalConductivity | To BS EN 13164): 0.036 W/mK. |
Accessories | Not required. 320 Flexible Cement Based Adhesive. 520 Cement Based Waterproof Membrane. 610 Adhesive Sealant. Fundo Sealing Set. |
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Recyclability | XPS core fully recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 25 % |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
