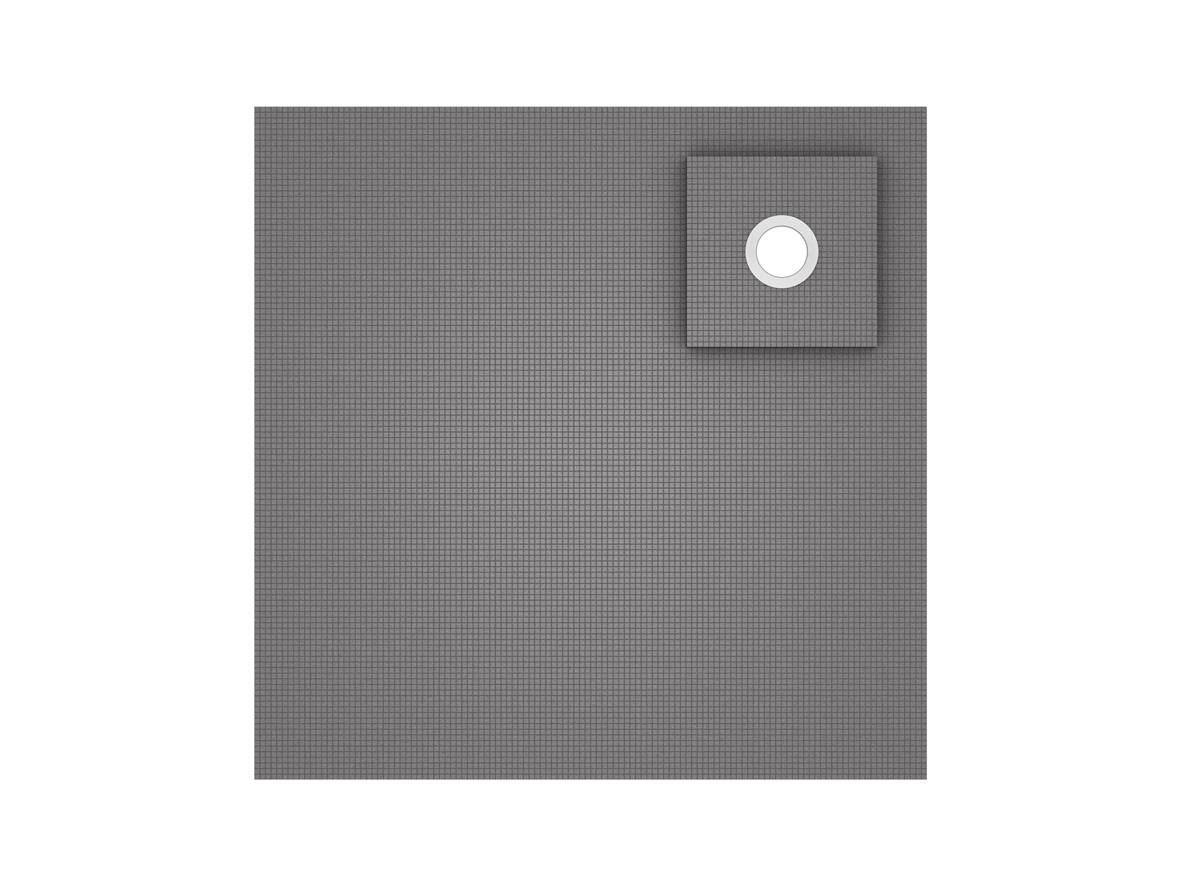

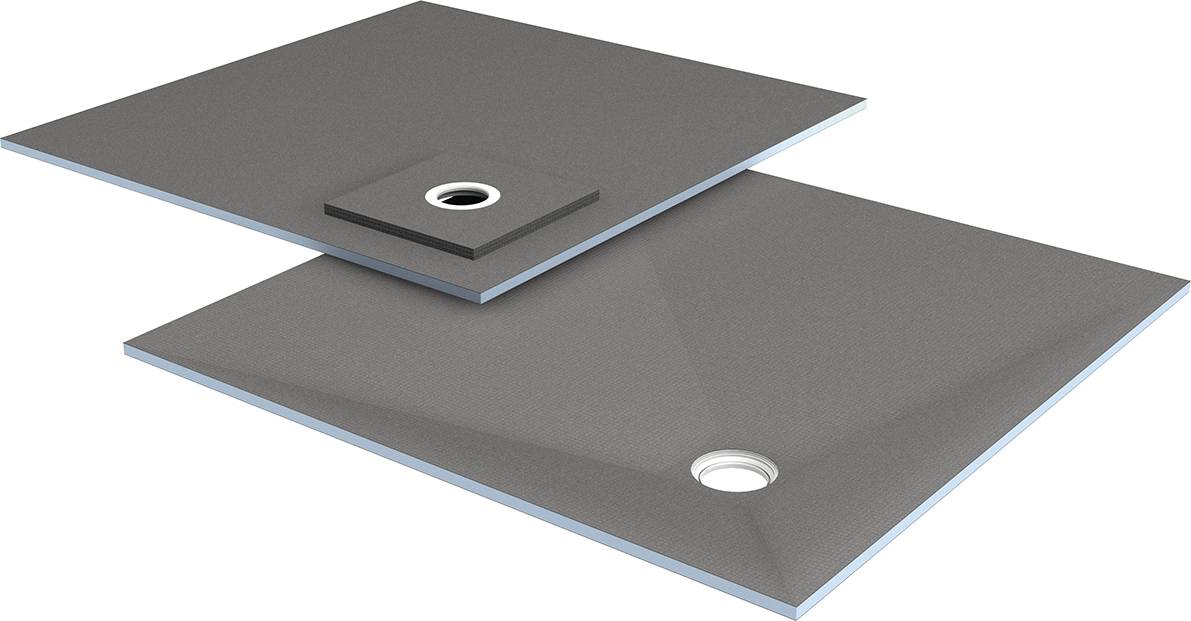

wedi Fundo Ligno Corner Drain - Shower tray/ shower former
Verified by manufacturer 29 days ago
073732021 (900 x 900 x 20 mm)
073732021 (900 x 900 x 20 mm)
BBA Agrément Certificate
Certificate type
European Technical Approval (ETA)
Certificate type
EPD
Certificate type
Floor-level shower element for direct tiling with horizontal or vertical floor drain for new-build and renovation projects. For installation on or in suspended timber floors.
Application
- Private residential construction.
- Public buildings and workplaces complying with DIN 18040-1.
- Accessible dwellings complying with DIN 18040-2.
- As a construction seal combined with tile and slab coverings of load class A0.
Description
Floor-level shower element for direct tiling with horizontal or vertical floor drain for new-build and renovation projects for installation on or in suspended timber floors. The system includes a thick foam core with special coating, a specified surface slope and a custom-fit system floor drain.
Features and benefits:
- Can be installed on almost any surface as an individual tileable floor-level shower system.
- To be used in conjunction with a Fundo drain.
- CE Marked.
General information
Color | Grey |
Finish | Cement |
Material | High density extruded polystyrene (XPS) |
Shape | Square Rectangle |
Length | 900 mm 1000 mm 1200 mm 1500 mm 1600 mm |
Width | 900 mm 1000 mm 1200 mm 1500 mm |
Height | 20 mm Guidance for specification option: 20mm outer edge material thickness, with reinforcing block on underside giving a total installation depth of 41mm. Manufacturer guidance20mm outer edge material thickness, with reinforcing block on underside giving a total installation depth of 41mm. |
Warranty description | Ten year |
Uniclass | |
CAWS | N13/375 Shower units N13/40 Shower units |
Product range |
Specification data - Shower trays
Form | Square. |
Materials | |
Body | A waterproof extruded polystyrene rigid foam core with a special, resistant and glass fibre reinforced cement coating. |
Finish and colour | Grey. |
Size | 900 x 900 x 20 mm. |
Waste hole | Corner drain. |
Compacted bulk density | To DIN EN 1602: 32 kg/m³. |
CompressiveStrength | To BS EN 826: 0.25 N/mm². Guidance for specification option: Long-term compressive strength (50 years, at ≤2% compression, to BS EN 1606): 0.08 N/mm². |
FireRating | To DIN 4102: B1. To BS EN 13501-1): E. |
TemperatureRange | -50°C to +75°C. |
ThermalConductivity | To BS EN 13164: 0.036 W/mK. |
Accessories | None. 320 Flexible Cement Based Adhesive. 520 Cement Based Waterproof Membrane. 610 Adhesive Sealant. Fundo Sealing Set. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Recyclability | XPS core is recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 25 % |
Third party certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
 IFC | - | 2 |
Third party certifications
Literature
wedi Fundo Ligno TDS
wedi Fundo Ligno installation guide
2019 Product Brochure
wedi at a glance 2022
How to build.. point drainage
