wedi 360 Flexible Middle-Bed Mortar - Adhesive

Verified by manufacturer 1 month ago

Wedi Systems (UK) Ltd

Quick-drying, flexible middle-bed mortar for indoor and outdoor use on walls and floors.

Jump to:
BOS
+44 (0)161 864 2336 Website

Application

For laying floor coverings and applying wall coverings with glazed terracotta tiles, half tiles, unglazed terracotta tiles and artificial stone with varying material thicknesses, earthenware slabs (large format), stoneware on uneven surfaces as well as wedi building elements (rigid foam elements laminated on both sides with cement).


Spots of wedi 360 can be applied to level out differences in tile thickness of natural stone coverings or any unevenness in the surface. wedi 360 is also suitable for dot and dab fitting (with dowels) of wedi building elements to the wall on uneven but load-bearing surfaces that do not permit two-dimensional bonding. Layer thickness of lumps of mortar maximum 20 mm.

Description

Highly polymer-modified, hydraulic and quick-drying middle-bed mortar for walls and floors, mortar bed thickness of 5–20 mm, for indoor and outdoor use, waterproof and frost-proof. Suitable for underfloor heating.

Tested as C2 FT under DIN EN 12004.

General information

Color

Grey

Finish

Cement

Material

Cement

Shape

Formless

Guidance for specification option:

Powder.

Warranty description

Ten year

Uniclass

Pr_20_31_02_12 Cementitious adhesivesPrimary

CAWS

M40/10 Natural stone covering to

M40/110 Tiling to

M40/115 Natural stone covering to

M40/12 Mosaic to

M40/120 Mosaic to

M40/5 Tiling to

Product range

Accessories / Adhesives

Specification data - Cementitious adhesives

Open time (minimum)

15 minutes (approx.).

Colour

Grey.

Adhesive thickness

Manufacturer's standard.

Guidance for specification option:

  • 10 mm groove: approx. 3.5 kg/m².
  • 15 mm groove: approx. 6.9 kg/m².
  • 20 mm groove: approx. 8.5 kg/m².
  • 25 mm groove: approx. 9.7 kg/m².

Packaged weight

25 kg.

Guidance for specification option:

Paper sack.

Sustainability data

Country of material origin

Germany

Country of product manufacture

Germany

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

3

Revit
-

3

Literature

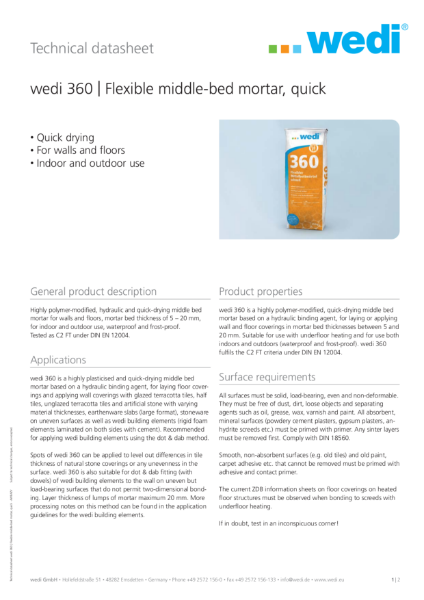

wedi 360 flexible middle-bed mortar TDS

wedi 360 flexible middle-bed mortar TDS
