Wedge Lever Handle (HUKP-0101-21) - Door handle
Verified by manufacturer 6 months ago

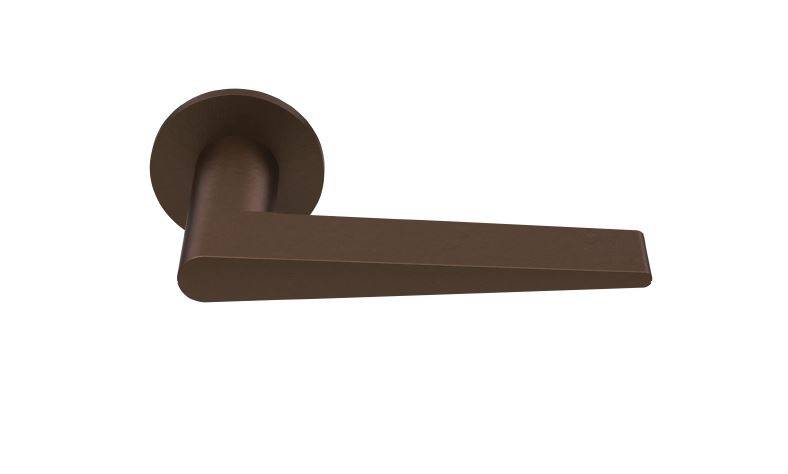

Stainless steel wedge lever handle.
Application
Suitable for high frequency of use EN4.
Description
Stainless steel wedge lever handle.
Features and benefits:
- Wedge design lever handle in solid bar stainless steel.
- Ball bearing concealed fixed rose with four point back to back fixing.
- Unsprung, for use with heavy duty followers.
- 52 mm diameter and 4 mm thick rose, 38 mm centres for bolt through fixings.
- To suit door thickness from 35-54 mm.
General information
Color | Silver Black Gold Bronze Manufacturer guidanceAny RAL colour available to special order. |
Finish | Satin Guidance for specification option: Brass or stainless steel. Polished Guidance for specification option: Brass or stainless steel. Matt Guidance for specification option: Black. |
Material | Stainless steel Steel |
Shape | Triangle |
Length | 130 mm |
Width | 64 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | P21/610 Lever handles P21/38 Lever handles |
SKU Code | HUKP-0101-21 |
Specification data - Door lever handle sets
Classification data | |
Standard | To BS EN 1906: 2012 and EN4. |
Classification grades (minimum) | |
Category of use | 4. |
Durability | 7. |
Fire resistance | 1. Guidance for specification option: Up to 60 minute fire rating. |
Safety | 1. |
Corrosion resistance | 4. |
Security | 0. |
Type of operation | U. |
Style | Flat pattern. |
Size | 22 mm. Guidance for specification option: Handle width. |
Material and finish | Stainless steel, grade 1.4404 (316L). |
Colour | Satin stainless steel. Polished stainless steel. Matt black. Light bronze. Guidance for specification option: Special order. Dark bronze. Hafele black. Polished brass. Satin brass. RAL colour. Guidance for specification option: Special order. |
Mounting | Ball bearing concealed fixed rose with four point back to back fixing. |
Literature
3. Project - Architectural Lever Handles
1. Häfele Architectural Ironmongery Brochure
