WC Flush Valve and Control Box
Verified by manufacturer over a year ago

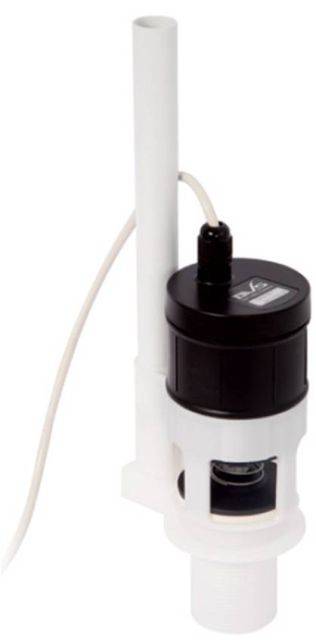

WC01-022, valve only.
WC01-022, valve only.
The DVS no-touch WC flushing system is an electronically operated drop valve which replaces the traditional syphon and delivers a measured volume of water from the cistern to the lavatory bowl.
Application
Suitable for commercial applications.
Description
Offering reduced water consumption, the optimum quantity of water from each flush is pre-set and accurately controlled. The easy to use no-touch WC flushing system is triggered by an electronic infrared sensor which is activated when the user’s hand comes within 50 mm of the sensor. The timer can be adjusted to any setting from 1–6 seconds, to deliver the optimum flush. With no handles to touch, the risk of cross infection is eliminated.
Features and benefits:
- 4.5 litre flush.
- Typical 30% savings on water costs.
- Adjustable for optimum flush.
- Improves flush.
- Ideal for disabled or elderly.
- Hygienic no-touch operation.
- Optional tactile operation.
- Easy to install and maintain.
- Fits existing and new WCs.
- Vandal proof.
- Eliminates handle maintenance.
- Dual flush.
- Wave-on or fully automatic flush.
- Lock outs (for custodial and mental health).
- Increased ambient temperature (55ºC).
- Purge facility.

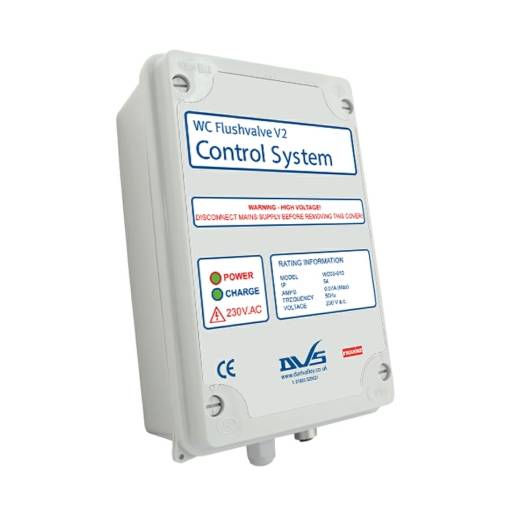

- Prison Flush Control Box - for Duct Mounting
System components:
WC03-002 Standard WC Flushvalve kit with built in overflow and wave on sensor 1 1/2" base.
General information
Color | Grey |
Finish | Semi-gloss |
Material | Plastic |
Shape | Rectangle |
Length | 185 mm |
Width | 120 mm |
Height | 75 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns N13/311 Unisex accessible WC equipment packages (Document M) |
Product range |
Specification data - Flush control devices
Standards | |
General | To BS EN 12541. |
Third party certification | Water Regulations Advisory Scheme (WRAS) approved. |
Flush volume | 4.5 L. |
Operation | Sensor. |
Controller | Battery operated.Mains operated. |
Accessories | None. WC00-022. Guidance for specification option: Full flush backplate. WC00-023. Guidance for specification option: Half flush backplate. WC00-025. Guidance for specification option: 80 mm backplate. WC01-021. Guidance for specification option: 120 mm disabled backplate. Manufacturer guidanceA wide range of component parts are available to complement the system; consult manufacturer's literature for details. |
Options | None. WC Fully Auto Flushvalve. Guidance for specification option: Can be mounted behind the toilet to detect a user for fully automatic flushing used in conjunction with a WC kit or retro-fitted later. If the user does not operate the manual flushing sensor the toilet will flush automatically a few seconds after they have left the toilet area. |
Sensor | AC02-009. Guidance for specification option: 38 mm chrome wave on sensor pack. AC02-011. Guidance for specification option: 38 mm chrome wave on sensor pack c/w DVS back plate. AC02-040. Guidance for specification option: Anti-vandal wave-on sensor with 50 mm stainless steel bezel. AC02-046. Guidance for specification option: Tactile switch with blue (cold) insert and 50 mm stainless steel bezel. AC02-043. Guidance for specification option: Anti-vandal wave-on sensor c/w blue indication insert and 50 mm, 15 m. |
Type | WC01-022, valve only. Guidance for specification option: 1 1/2" base. |
Dimensions | 185 x 120 x 75 mm. |
