Waterstop Wall - Shower Drain

Application

Suitable for new construction or renovation projects.

Description

Linear shower drain, supplied as a complete set, including grate, trap body, drainage siphon and pre-assembled sealing membrane with Water Protection System (WPS) technology. The sealing membrane can be sealed with flexible tile adhesive for guaranteed watertightness and complete protection throughout the shower area.


Features and benefits:

  • Available in lengths of 700–900 mm.
  • Easy-to-clean siphon.
  • Pre-assembled sealing membrane: 2000 x 1500 mm.

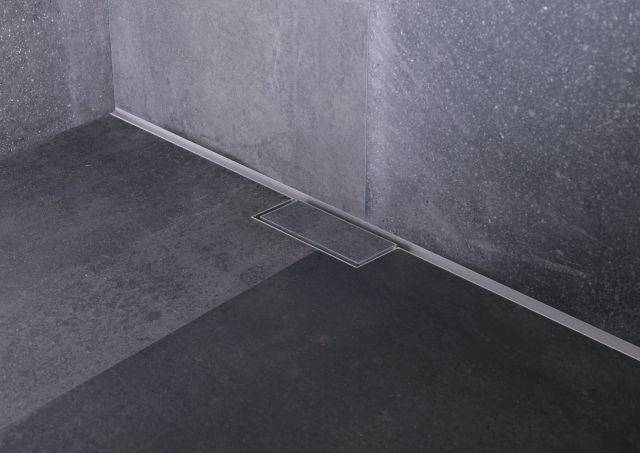

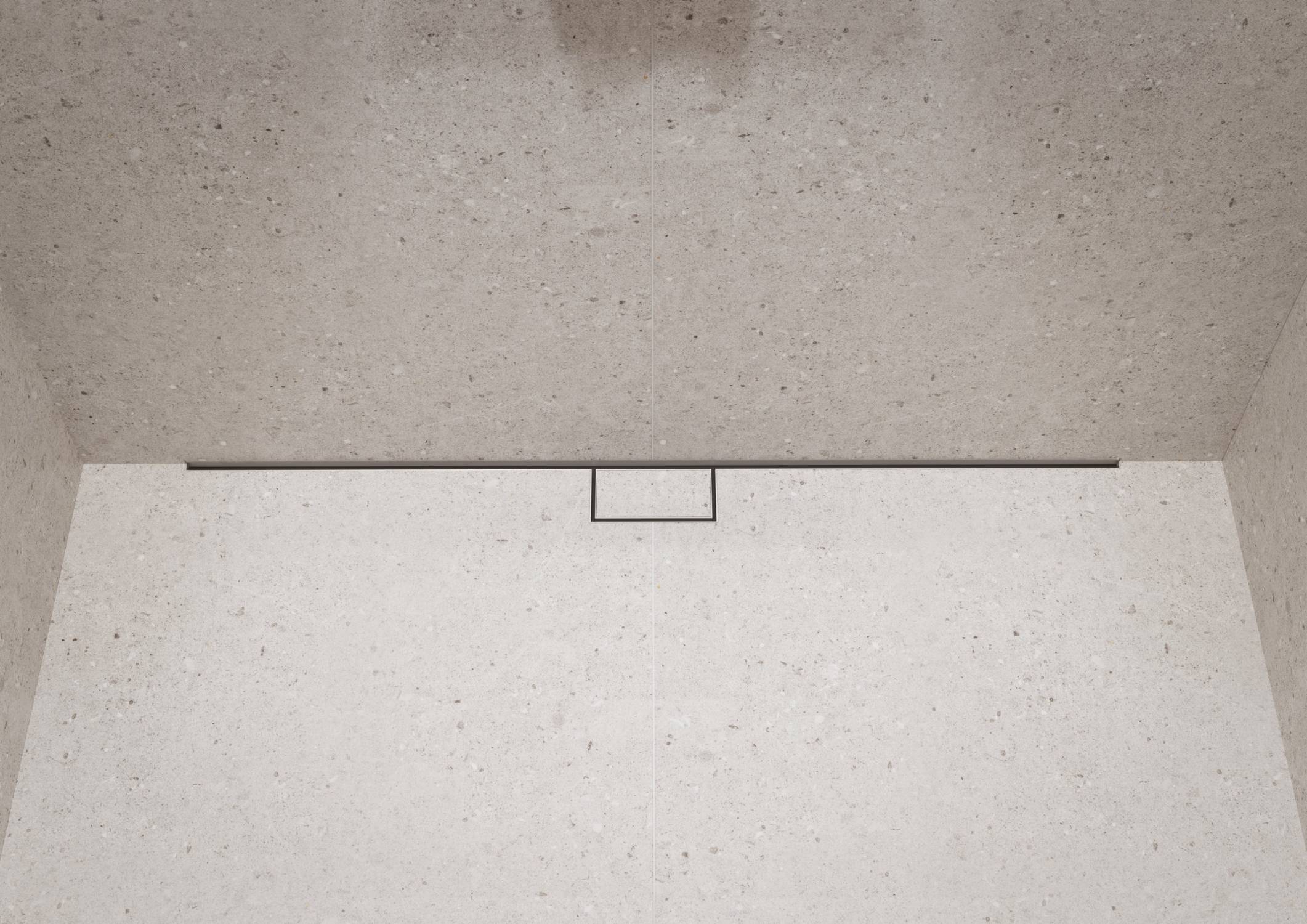

  • Installation directly at the wall.
  • High drainage capacity of 30 L/min.
  • Sealing membrane can be sealed with flexible tile adhesive.
  • CE-certified.
  • ETAG 022-certified.
  • EN 1253-certified.


General information

Finish

Brushed

Tiled

Material

Acrylonitrile butadiene styrene

Stainless steel

Shape

Rectangular

Size

700 x 72 x 50 mm

WarrantyDescription

Ten years

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/315 Floor drains

Specification data - Floor gullies Enhanced data

Standard

To EN 1253 + ETAG 022.

Body

-

Configuration

Siphon.

Material

Acrylonitrile butadiene styrene.

Cover or grating

-

Cover or grating type

Solid cover.

For 12 mm depth tile, 79 mm minimum installation depth, 91 mm minimum installation height.

Tile.

For 12 mm depth tile, 134 mm minimum installation depth, 146 mm minimum installation height.

Material

Not applicable.

For tile.

Stainless steel.

Finish

Not applicable.

For tile.

Brushed.

Outlet

Horizontal adjustable.

Standard.

Vertical adjustable.

Product Reference

Waterstop Wall - Shower drain.

Length

700 mm.

800 mm.

900 mm.

Drainage capacity

41 L/m.

Water seal height

50 mm.

Connection

Global: 50 mm; UK: 56 mm.

Suitable substrates

Concrete/ sand cement, Lewis sheets or wooden floors.

Suitable floor finishes

Tiles/ mosaic, glass mosaic, thin tiles.

Environmental information

Country of material origin

Netherlands

Country of product manufacture

Germany
