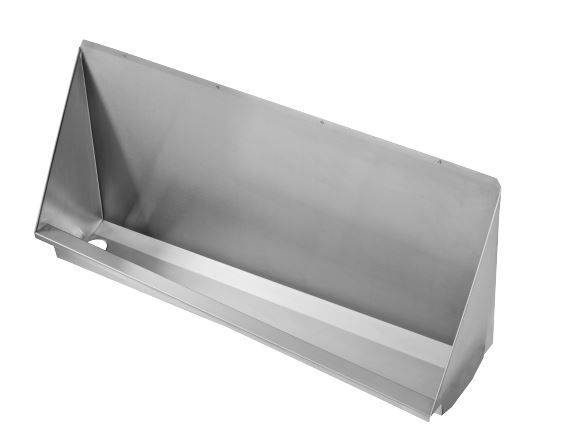

Waterfree Urinal

Application

For wall and floor mounting.

Description

Water-free urinal.


Features and benefits:

  • Purpose-made to maximize the flow to the waterless waste fitting and reduce standing fluids to ensure that the product is clean and odour free.
  • Fitted with the unique waterless waste design and diaphragm, urinal slabs are suitable for locations such as stadiums, public houses, nightclubs, public toilets and factories where there is a high frequency of use.
  • The waterless waste fitting is based on a simple principle of a silicone diaphragm that allows fluids to pass through the fitting, but stops odours entering the washroom. The urinal does not need any liquids, gels, scented pads or components to be replaced on a monthly basis.
  • The silicone diaphragm insert needs to be replaced at least twice a year, depending upon usage. A fragrance ring is available to fit on the top of the waste fitting if required.
  • Waste pipe fitting to the plastic waste fitting is 38 mm without the need for a conventional bottle trap.
  • CE Marked.

General information

Material

Stainless steel

1.5 mm, grade 1.4301 (304)

Length

Depth.

300 mm

Height

578 mm

Uniclass

Pr_40_20_93_84 Waterless urinalsPrimary

CAWS

N13/18 Waterless urinals

N13/321 Urinals – waterless

Product range

Urinals

Specification data - Waterless urinals Enhanced data

Form

Wall mounted.

Floor mounted.

Materials

-

Body

Stainless steel.

1.5 mm, grade 1.4301 (304).

Waste hole

DN 40.

Waste size.

Integral accessories

Wall brackets.

Top edge fixings.

Product Reference

(G20125L) 205.0560.088

Left-hand waste outlet. 1200 mm wide.

(G20125R) 205.0000.066

Right-hand waste outlet. 1200 mm wide.

(G20126L) 205.0553.762

Left-hand waste outlet. 1800 mm wide.

(G20126R) 205.0553.763

Right-hand waste outlet. 1800 mm wide.

Dimensions

578 x 300 mm.

h x d
