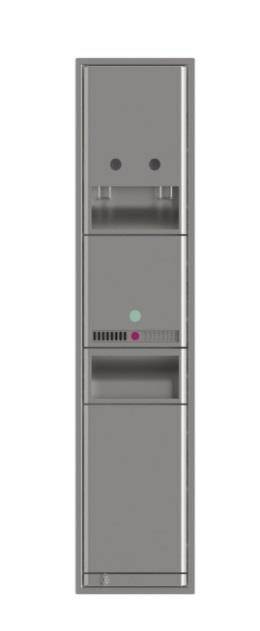

Washroom recessed panel - HJL - Size 9

Verified by manufacturer 29 days ago

dline

Washroom recessed panel (paper towel dispenser, hand dryer and waste bin).

Jump to:
+44 (0)121 3734488 Website

Application

Stainless steel Washroom recessed panel - HJL - Size 9

Description

Recessed panel (paper towel dispenser, hand dryer and waste bin), HJL, module size 9, in a Classic Danish design by Knud Holscher.


Features and benefits:

  • Self-locking mechanism and one point opening with d line key.
  • Paper towel dispenser 'H', module size 3.
  • Towels: C, Z, Multi and Interfold (minimum 230 x 80 mm is recommended).
  • Magazine size (w x h x d): 260 x 350 x 105 mm.
  • Capacity: 350 piece two layer Interfold (approximately).
  • Automatic and brushless hand dryer 'J', module size 2. >25 seconds drying time, 62 dBA, 1660 W, 230 V (50 Hz).
  • Waste bin 'L', 12 L capacity with open aperture (280 x 460 x 120 mm), module size 4.
  • CE marked.

General information

Color

Silver

Finish

Brushed

Material

Stainless steel

Shape

Rectangle

Width

331 mm

Guidance for specification option:

 With frame skirt.

Height

1427 mm

Guidance for specification option:

 With frame skirt.

Warranty description

20 year

Guidance for specification option:

For stainless steel (non-movable) parts.

Uniclass

Pr_40_70_22_52 Multi-function dispensersPrimary

CAWS

N13/442 Paper towel dispensers

N13/472 Hand dryers

N13/474 Waste bins

Specification data - Multi-function dispensers

Dimensions

306 x 1392 x 106 mm.

Guidance for specification option:

Minimum wall opening (w x h x d).

Material

1.5 mm stainless steel, AISI 1.4301 (316) grade.

Finish and colour

Satin 320 grain stainless steel, hand crafted (14.7100.09.017).

Polished stainless steel (16.7100.09.017).

Telegrey RAL 7047.

White RAL 9016.

Black RAL 9005.

Dusty Grey RAL 7037.

Manufacturer guidance

PVD coatings are Physical Vapour Disposition - consult manufacturer for further details.

Projection

Wall projection: 21 mm.

Guidance for specification option:

Opened: 335 mm, maximum.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Recyclability

100%

BIM objects

Platform Compatible Version
IFC
-

1

Revit
-

1
