Washbasin ViCare 412081
Verified by manufacturer 8 months ago
41208101
41208101

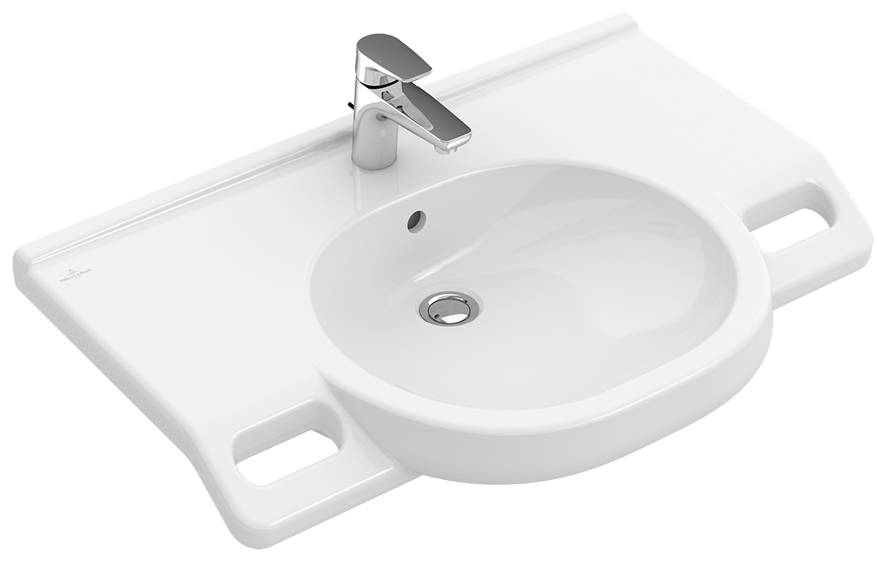

Oval washbasin.
Application
Wall mounted.
Description
Oval washbasin.
Features and benefits:
- Previously O.novo Vita.
- Sanitary ceramics.
- Wheelchair-compatible.
- Complies with EN 31 and EN 14688.
- In accordance with DIN 18040.
General information
Color | White |
Finish | Gloss |
Material | Ceramic |
Shape | Oval |
Length | 800 mm |
Width | 550 mm |
Uniclass | |
CAWS | N13/335 Washbasins N13/30 Washbasins |
Specification data - Wall-hung washbasins
Standard | To EN 31 and BS EN 14688. |
Form | Wall-hung washbasin. |
Connecting dimensions | To BS EN 31. |
Materials | |
Body | Sanitary ceramic. |
Finish and colour | White alpin, gloss. |
Size | 800 x 550 mm. |
Water supply, overflow and waste holes | |
Water supply | Single tap hole, centred.Guidance for specification option: Suitable for 3-hole tap fittings, central tap hole punched out. |
Overflow | None.Guidance for specification option: Wthout overflow, Please note: un-closable outlet valve must be used with models without overflow. |
Waste | Bottom waste outlet. No chainstay hole. |
Weight | 21.6 kg. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 3Ds Max | - | 1 |
 OBJ | - | 1 |
 IFC | - | 1 |
 SketchUp | - | 1 |
 ARCHICAD | - | 1 |
