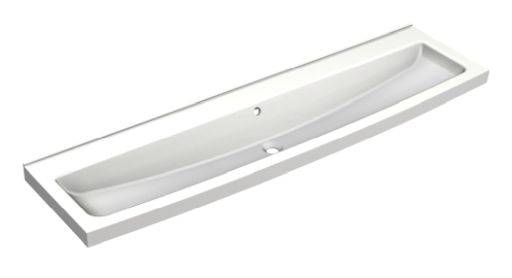

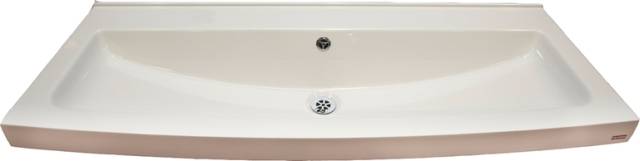

Wash Trough - SOLX 1800 mm
Verified by manufacturer over a year ago
Miranit 1800 mm washtrough.
Application
Suitable for intensive usage (public spaces), areas of high humidity such as washrooms or hygienic environments (healthcare).
Description
Miranit composite washtrough with a smooth, pore-free high gloss gelcoat finish.
Features and benefits:
- Temperature resistant up to 80°C.
- Wash-troughs include a 32 mm waste kit with overflow and tap deck with integral back panel and fixing kit for ease of installation.
- Available with three tap holes for three users (1800 mm) and with or without splashback.
- Either self-closing or electronic, touch free taps with both models.
- Other modifications are available e.g. deck mounted soap dispensers, vanity underframes.
General information
Color | White |
Finish | Gloss Guidance for specification option: High gloss gel coat |
Material | Composite |
Length | 480 mm |
Width | 1800 mm |
Height | 170 mm 360 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N13/346 Washing troughs |
Product range |
Specification data - Wash troughs
Form | Wall mounted. |
Stations | Two. |
Materials | |
Body | Miranit composite resin bonded mineral material. |
Finish and colour | Alpine white with a high gloss gelcoat finish. |
Size | 1800 x 170 x 480 mm.Guidance for specification option: Without splash back. 1800 x 360 x 480 mm.Guidance for specification option: With splash back. |
Water supply, overflow and waste holes | |
Water supply | With tap landing and no tap holes. |
Overflow | 32 mm waste kit with overflow and tap deck. |
Waste | 32 mm waste kit with overflow and tap deck. |
Integral accessories | ZANMW900 dome waste. |
Product Reference | (SOLX1800) 203.0000.229 Guidance for specification option: 1800 mm long three person trough with tap landing and no tap holes. (SOLX1800T) 203.0000.238 Guidance for specification option: 1800 mm long three person trough with tap landing and three tap holes. (SOLX1800E) 203.0000.230 Guidance for specification option: 1800 mm long three person trough with tap landing complete with electronic touch free taps. (SOLX1800MF3) 203.0547.762 Guidance for specification option: 1800 mm long three person trough with tap landing and manual self-closing F3 taps. (SOLX1800SB) 203.0000.232 Guidance for specification option: 1800 mm long three person trough with splashback and no tap holes. |
Sustainability data
Country of material origin | Germany |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
