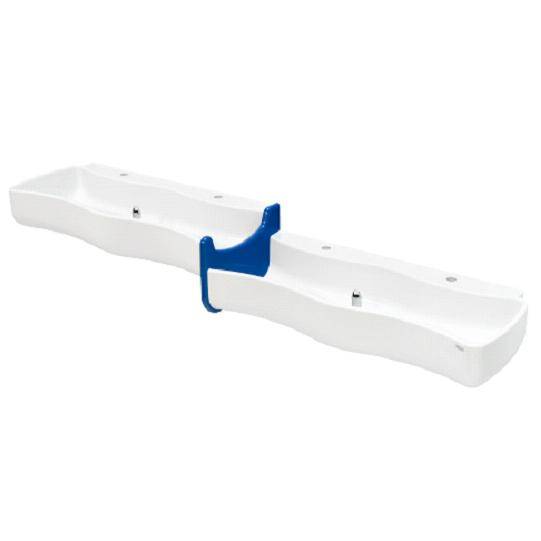

Miranit Children's Wash And Play Trough - SANW212

Verified by manufacturer over a year ago

KWC DVS Limited

WASHINO Children's Wash-and-Play Trough.

Jump to:
BOS
+44 (0)1246 458900 Website

Application

Children's Wash-and-Play Trough.

Description

WASHINO Children's Wash-and-Play Trough.


Feature and Benefits:

  • Has a surface finish that is smooth, pore-free and temperature resistant up to 80°.
  • The WASHINO wash and play troughs are available for two, three or four users.
  • Offers a high resistance to impact and abrasion which are suitable for everyday use.
  • The larger outer radii of the mineral granite made basins reduce the risk of injury, whilst the inner radii and their seamless design make cleaning the wash troughs an easy task.
  • All models are supplied with a waste and overflow as well as a tap hole for each wash place, integrated basin back panel and mounting material to make mounting easy.

General information

Color

White

Finish

Gloss

Material

Composite

Guidance for specification option:

Resin bonded mineral material.

Length

470 mm

Width

2100 mm

Height

240 mm

Warranty description

Five year

Uniclass

Pr_40_20_96_99 Wash troughsPrimary

CAWS

N13/346 Washing troughs

Product range

Washing Troughs

Specification data - Wash troughs

Form

Wall mounted.

Stations

Four.

Materials

-

Body

Miranit composite.

Guidance for specification option:

Resin bonded mineral material.

Finish and colour

High gloss gelcoat.

Size

470 x 2100 x 240 mm.

Water supply, overflow and waste holes

-

Water supply

One tap hole in backplate at each user position.

Overflow

Integrated divider with overflow function.

Guidance for specification option:

Made of MIRANIT, blue colour (RAL 5002).

Waste

All models are supplied with a waste.

Integral accessories

Supplied with integrated basin back panel and mounting material to make mounting easy.

Product Reference

(SANW212) 203.0473.925

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
