Planox Washtrough with Tap Ledge

Verified by manufacturer over a year ago

KWC DVS Limited

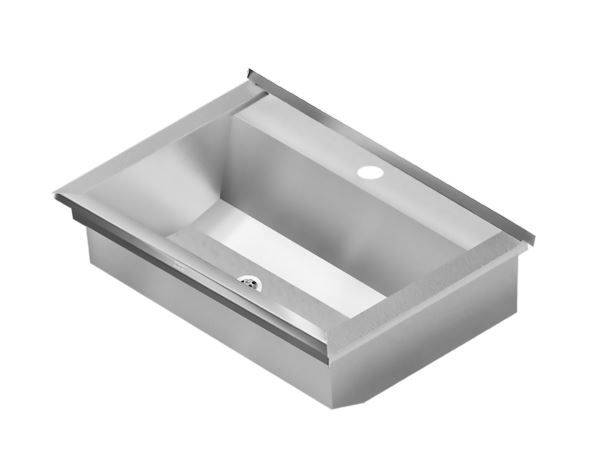

Stainless steel wash trough with tap ledge.

Jump to:
+44 (0)1246 458900 Website

Application

Designed for wall mounting.

Description

Stainless steel wash trough with tap ledge.


Features and benefits:

  • Stainless steel seamlessly welded wash trough with tap ledge, for wall mounting.
  • Manufactured from chromium nickel steel, with a satin finished surface.
  • The side panels have integrated wall brackets.
  • Lowered tap ledge of 80 mm, and 40 mm rear upstand and central waste.
  • Supplied with 38 mm dome waste and mounting materials.
  • For a length of 1800 mm or more, an additional bracket is supplied.
  • Optional shroud and splashback are available as extras.
  • Special lengths are available on request - consult manufacturer for details.
  • Overflow and waste not included.

General information

Color

Silver

Finish

Satin

Material

Stainless steel

Shape

Rectangle

Length

210 mm

Width

442 mm

Uniclass

Pr_40_20_96_99 Wash troughsPrimary

CAWS

N13/346 Washing troughs

Product range

Washing Troughs

Specification data - Wash troughs

Form

Wall mounted.

Materials

-

Body

Stainless steel.

Finish and colour

Satin.

Size

442 x 210 mm.

Manufacturer guidance

(d x h).

Water supply, overflow and waste holes

-

Water supply

One tap hole.

Two tap holes.

Three tap holes.

Four tap holes.

Five tap holes.

Overflow

None.

Waste

Central position.

Manufacturer guidance

Perforated waste required.

Integral accessories

Not required.

Shroud.

Guidance for specification option:

(PL-SHROUD LRG) 203.0563.655

Shroud, 122.5 x 305 x 243.7 mm.

Product Reference

(PL6T-UK) 203.0564.759

Guidance for specification option:

600 mm, with one tap hole.

(PL8T-UK) 203.0564.760

Guidance for specification option:

800 mm, with one tap hole.

(PL12T-UK) 203.0563.654

Guidance for specification option:

1200 mm, with two tap holes.

(PL16T-UK) 203.0564.761

Guidance for specification option:

1600 mm, with two tap holes.

(PL18T-UK) 203.0564.762

Guidance for specification option:

1800 mm, with three tap holes.

Show more

Underframe

Required.

Not required.

Splashback

Required.

Not required.

Manufacturer guidance

  • Stainless steel, grade 1.4301, satin finish
  • Size (h x d): 400 x 3 mm.
  • Length to match wash trough size.
  • Thickness: 0.8 mm.

Thickness

Manufacturer's standard.

Guidance for specification option:

  • Wash trough: 0.8 mm.
  • Side panels: 1.2 mm.
