NBS Source

Warwick Theatre & Auditorium Seating

Verified by manufacturer 2 months ago

Race Furniture Ltd Third party certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

Art-deco inspired design suitable for auditoriums, theatres or conference venues.

Jump to:
+44 (0)1451 821446 Website

Application

Suitable for:

  • Auditorium.
  • Conference.
  • Theatre.

Description

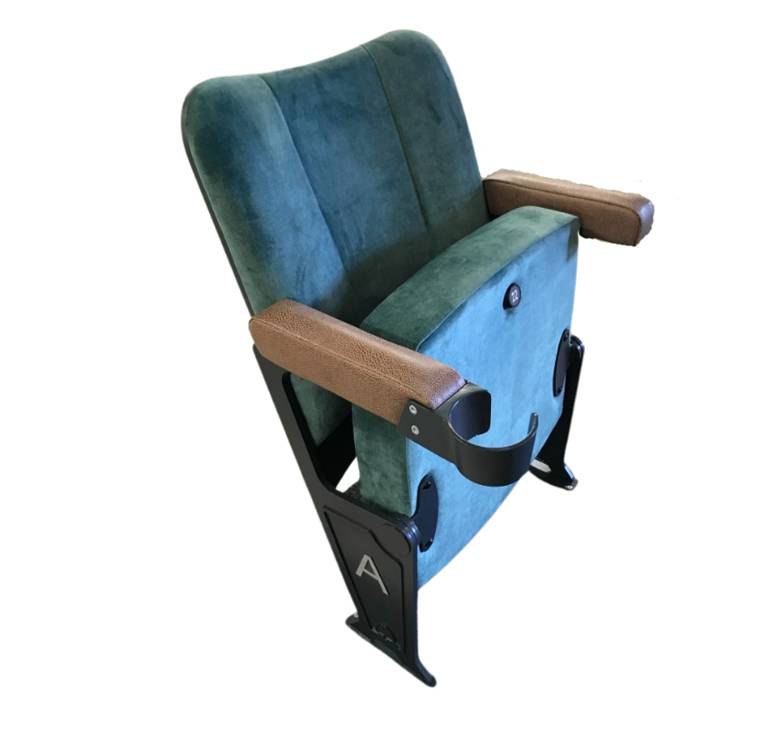

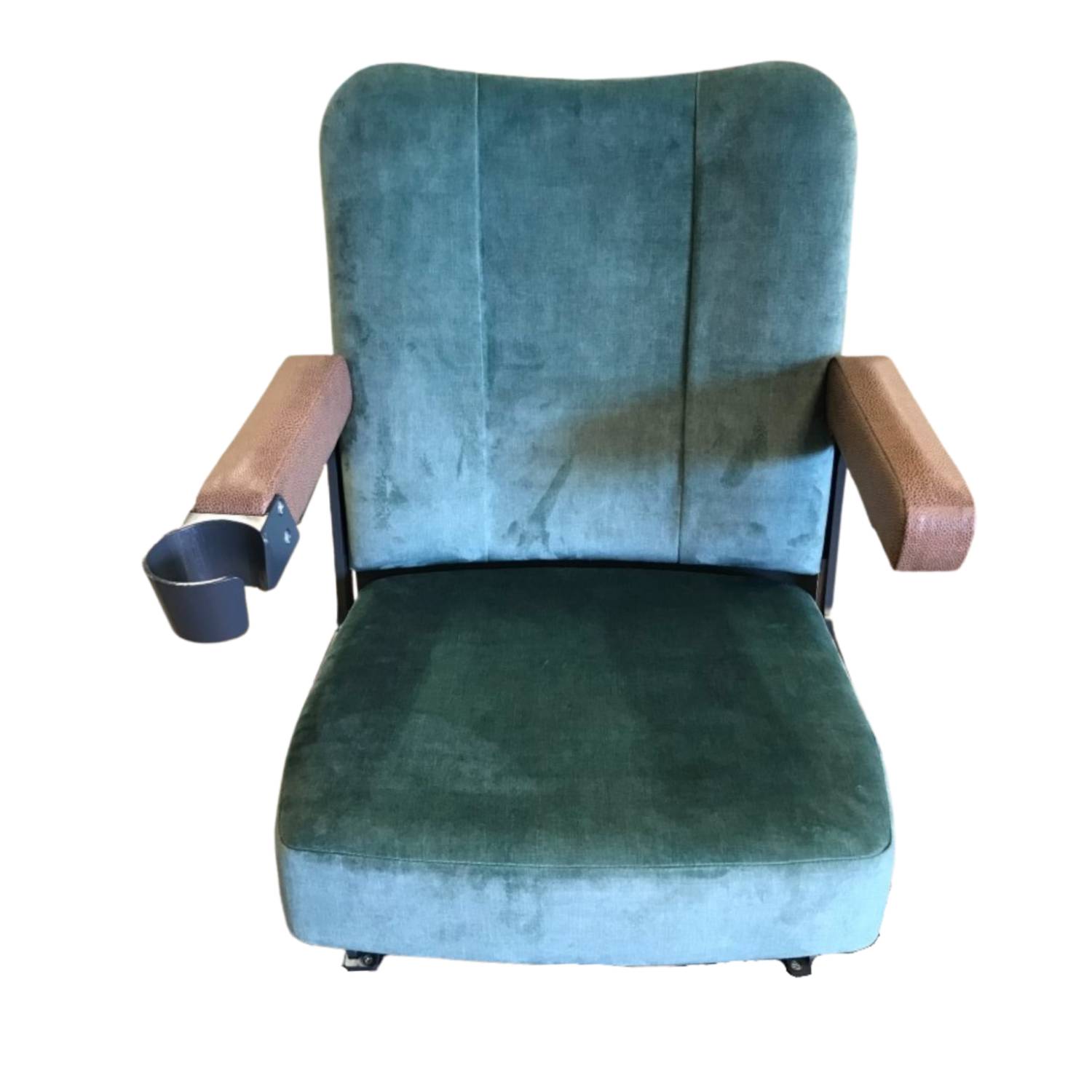

Race Furniture's Warwick seat, an elegant Art-deco inspired design suitable for auditoriums, theatres or conference venues. The fluted fan shaped back, upholstered in the fabric of choice, adds a touch of vintage-glamour, while the contoured, fully upholstered arm rests add to the luxurious comfort of this seat. Solid end-of-row stanchions can also be customised with 3D relief embossing.


Features and benefits:

  • Variable seat widths and backrest angles.
  • Wide choice of finishes.
  • Finger-safe seat tipping mechanism.
  • End-of-row panels.
  • A wide range of upholstery styles.
  • Fixed and removable options.
  • DDA Provision.
  • Typically seats are all FSc approved, and contain 80%+ recycled steel content.
  • Customisable real wood, veneer, high-pressure laminate, fabric and leather finishes.
  • Bespoke seat height, width and back angle dimensions.
  • Customisable arm rests, end panels and writing tablets designs.
  • Integrated cable management, signage and storage solutions.

General information

Color

Other

Customisable to client requirements.

Finish

Powder-coated

Natural

Laminated

Material

Wood

Birch plywood: seats and back.

Polyurethane

Polyurethane upholstery foam (CMHR): seats and back.

Steel

Mild steel: frame.

Length

440 mm

Width

525mm Seat Centres

(460mm Between arms)


545mm Seat Centres

(480mm Between arms)


565mm Seat Centres

(500mm Between arms)


585mm Seat Centres

(520mm Between arms)

525 mm

(460mm Between arms)

545 mm

(480mm Between arms)

565 mm

(500mm Between arms)

585 mm

(520mm Between arms)

Height

900 mm

WarrantyDescription

Five year

Race Products are guaranteed for five years from the later date of their supply or installation in accordance with the following:

  • Race Furniture Limited will repair or replace free of charge any manufacturing defect that occurs within five years that arises and is proven to be a product or manufacturing fault.
  • The guarantee is conditional on Products being maintained in accordance with instructions issued by Race Furniture Limited.
  • The guarantee does not include fabric / Leather / Vinyl. This may be covered under a separate guarantee from the fabric supplier.
  • The guarantee is subject to Race being informed promptly once the defect is initially observed and does not include the repair of secondary damage that occurs as a result of failure to do this.
  • The warranty does not apply where goods have not been properly maintained or have been subject to misuse, unauthorised repair, replacement modification or alteration, or if the defect arises as a result of fair wear and tear, wilful damage, or abnormal storage or working conditions.

Uniclass

Pr_40_30_29_29 Fixed seatsPrimary

CAWS

N10/171 Fixed seating

N10/10 Purpose-made

Specification data - Fixed seats

Fire performance

  • Bespoke Specification Fire testing available upon request.
  • All Fabrics conform to BS 5852:2006 Clause 12. Ignition Source 5 (Crib 5): Medium Hazard.
  • All Polyurethane Foams are: Combustion Modified High Resilience (CMHR).

Functions

Auditorium.

Theatre.

Conference.

Dimensions

-

Seat height

460 mm.

Seat spacing (lateral)

525 mm.

460 mm between arms.

545 mm.

480 mm between arms.

565 mm.

500 mm between arms.

585 mm.

520 mm between arms.

Row spacing

Determined from seating layout and constrained by the requirements of: BS 9999:2017 Code of practice for fire safety in the design, management & Anthropometric data for the target user group.

Seats and backs

-

Material

Birch wood and polyurethane upholstery foam (CMHR).

Finish

High pressure laminate (HPL).

Natural solid-woods.

Natural veneers.

Upholstery fabrics.

Colour

High pressure laminate (HPL).

Natural solid-woods.

Natural veneers.

Upholstery fabrics.

Frames

-

Material

Mild steel.

Finish

Polyester powder coated.

Colour

Customisable.

Consult manufacturer and insert requirements.

Integral accessories

Integrated power and data.

Seat and aisle signage.

End of row panels.

Transfer arms.

Removable seats.

Storage trolleys.

Height

Nominal height.

900 mm.

Length

Nominal length.

440 mm.

(Tipped up).

Accessibility

Removeable seats for wheelchair space.

Environmental information

Recyclability

Race Furniture's products can be disassembled with standard tools thereby allowing reuse, refurbishment, repair and recycling of components.

Typically our seats are all FSc approved, and contain 80%+ recycled steel content.

For further guidance on our sustainability procedures and certifications please reference our Greenbook excerpt.
