Wardale Cycle Shelter

Verified by manufacturer 26 days ago

BXMW/WAR Junior Wardale Cycle Shelter

Broxap Street Furniture Variant:
Third party certifications:
  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

  • CQMS

    CQMS

    Certificate type

A robust steel frame cycle shelter with roof and end panels. Fully customizable cycle shelter. Modular cycle shelter offering fantastic value and protection.

Jump to:
BOS
+44 (0)1782 571700 Website

Application

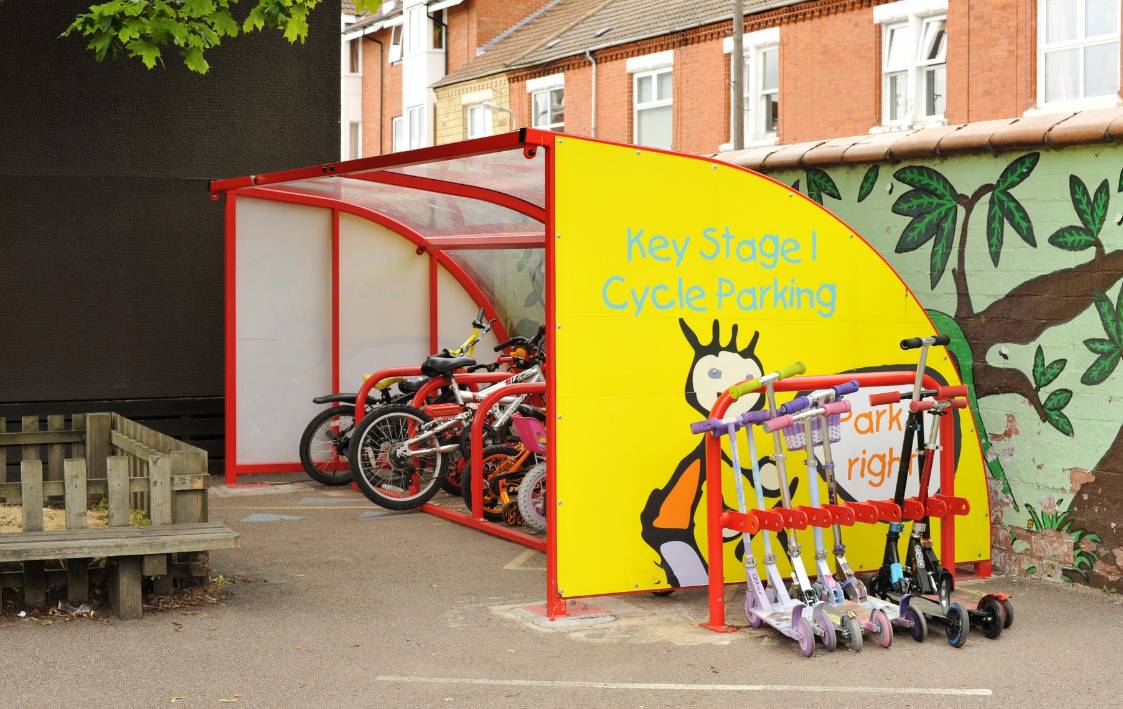

Suitable for providing a covered cycle parking area in a wide range of locations especially schools, workplaces, hospitals, housing developments and more.

Broxap has long been one of the leading designers and manufacturers of a vast range of cycle parking products including bike storage. With our extensive range of cycle sheltershubs, compounds, cycle stands and cycle racks, we have a cycle parking solution to suit every budget.

With the increased need for cycle parking and bike shelters in urban areas, we are a leader in the market for space saving and innovative solutions and are always working to find new ways to improve their products and their customer’s experience.

Broxap's cycle parking equipment can contribute towards gaining ENE8 credits when used in the appropriate situation, under the Code for Sustainable Homes.

Our cycle parking products are BREEAM and Code for Sustainable Homes Compliant.

Our range of contemporary and traditional cycle shelters are designed to suit any location and fit in with existing surroundings. They create a modern and stylish bike shelter solution to secure cycle storage, whilst still providing weather protection and promoting cycle usage.

The Wardale cycle shelter is our most popular cycle parking shelter. It has a simplistic approach to cycle parking and allows it to be applied in a single element or corresponding bank of units. The Wardale cycle shelter can also be turned into a secure cycle compound. The addition of a central corridor roof and security gate panels ensure cycles are kept dry and secure at all times.

The range includes anti-climb end frames and are assembled with anti-tamper high strength bolts. There are also options for cladding including PETg UV as standard or metal profile cladding.

Description

With its modular design, this robust steel frame cycle shelter can be linked together to create banks of cycle shelters which accommodate almost any quantity of cycles.


It can also be fitted with swinging or sliding gates with a range of locking mechanisms available to create a fully lockable and secure shelter.


The versatility of the Wardale cycle shelter means that the shelter can be retro-fitted with extensions at a later date pushing the parking capacity upwards whilst keeping installation costs low. The shelter can also be transformed into a secure compound.


Features and benefits:

  • Polycarbonate end panels included
  • Robust modular construction featuring load bearing purlins
  • Welded end frames and purlin section made from heavy-duty box section assembled with anti-tamper high strength bolts
  • Anti-climb end frames
  • Adjustable baseplates.


Options:

  • Bottom purlin provides anti-crawl bar on level surface
  • Hot dipped galvanized to BS EN ISO 1461:2009
  • 4 mm Clear View PETg UV Roof and Side Cladding (5 mm also available)
  • BREEAM Compliant Configurations
  • Full Installation Service
  • Zinc Rich Primer.


Capacities:

  • 2000 mm - 4 Cycles
  • 3600 mm - 8 Cycles
  • 4100 mm -10 Cycles
  • 5000 mm -12 Cycles
  • 6000 mm -14 Cycles.

General information

Color

Black

Blue

Green

Grey

Red

Show more

Finish

Galvanized

Powder-coated

Guidance for specification option:

Polyester powder coated.

Material

Steel

Guidance for specification option:

Frame. 60 x 60 mm box section.

Polycarbonate

Shape

Other

Length

4100 mm

3600 mm

2000 mm

5000 mm

6000 mm

Width

2140 mm

Height

2150 mm

Warranty description

One year

Uniclass

Pr_20_65_78_77 Semi-closed sheltersPrimary

CAWS

B91/340 Cycle shelter

B91/330 Canopy

B91/385 Shelter

Specification data - Semi-closed shelters

Shelter description

Junior Wardale Cycle Shelter.

Junior Wardale Cycle Shelter with extension bays.

Guidance for specification option:

Insert number of extensions.

Dimensions

-

Plan size

2000 x 2140 mm.

3600 x 2140 mm.

4100 x 2140 mm.

5000 x 2140 mm.

6000 x 2140 mm.

Height

2150 mm.

Frame

-

Material

Steel.

Finish

Galvanized.

Polyester powder coated.

Zinc rich primer.

Guidance for specification option:

Optional.

Colour

Cobalt Blue RAL 5013.

Goose Grey BS 4800 00-A-05.

Holly Green BS 4800 14-C-39.

Jet Black RAL 9005.

Nimbus Grey BS 4800 10 A 07.

Sky Blue RAL 5015.

Traffic Red RAL 3020.

Traffic White RAL 9016.

Traffic Yellow RAL 1023.

Anthracite Grey RAL 7016.

Manufacturer guidance

Powder coated to any standard RAL colour

Roof covering

4 mm PETg UV ClearView (Clear).

5 mm PETg UV ClearView.

5 mm PETg UV ClearView – TFL.

Trapezoidal profile 1000/32.

Accessories

Baseplate fixed.

LED or solar lighting.

Helmet lockers.

Anti crawl bars.

Guidance for specification option:

Can be fitted dependent on surface level

Extended adjustable baseplates (for submerged fixing).

Swinging security gate.

Sliding security gate.

Mechanical lock.

Keyed lock.

Opal cladding to roof and sides.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Steel

Guidance for specification option:

Frame. 60 x 60 mm box section.

Polycarbonate

Manufacturing plant location
