Wallbarn Aluminium Structural Sections - Class A Box Rail/Joist
Verified by manufacturer 3 days ago
15 mm high
15 mm high
Load Tolerance Test Certificate
Certificate type
Load Tolerance Test Certificate
Certificate type
Load Tolerance Test Certificate
Certificate type
Load Tolerance Test Certificate
Certificate type
Fire rated aluminium joist/ rail for decking and paving systems.
Application
- Excellent low-height substitute for timber or composite joists.
- Ideal for decking and paving systems that have very low height thresholds to meet.
- For use with a wide range of Wallbarn pedestals as part of a decking or paving system.
- Ideal for high traffic areas and commercial projects.
- Suited to decking or paving projects that are subject to harsh weather conditions.
- Suitable for any project specified as Class A.
Description

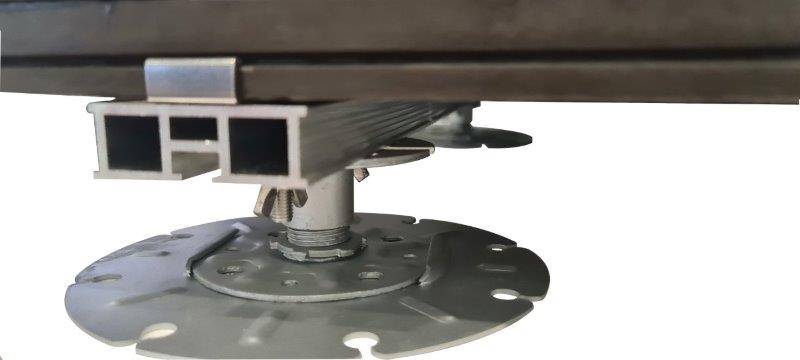

This extruded 6063 T6 aluminium rail has been designed and developed by Wallbarn for construction of heavy duty paving or decking applications. These profiled rails are designed to connect seamlessly to our Mega Balance, Joist Holder & MetalPad Ex pedestals.
Features and benefits:
- Class A1 rated (EN 13501-1:2018), fully compliant with BS 8579 and Approved Document B.
- Outer ledges on profile click onto Mega Balance securely and seamlessly.

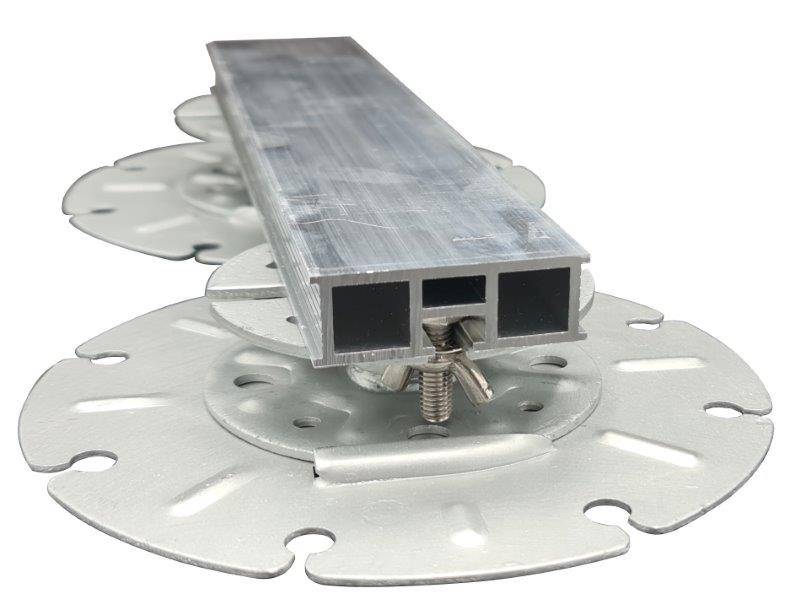

- Secured to MetalPad Ex by hand with wing nut kit.
- Ultra Low Height threshold with Joist Holder.
- Lightweight, easy and safe to handle.
- Will not rust, warp or rot. Ideal for external applications.
- Ample surface area for secure fixing.
- Paving headpiece or hidden decking fixing clip designed to fit rail perfectly.
- Available in 15, 20 and 25 mm high sections. 2.5 metre length as standard.
General information
Color | Silver |
Finish | Polished |
Material | Aluminium |
Shape | Rectangle |
Length | 2500 mm Manufacturer guidanceBespoke lengths are available on special order |
Width | 60 mm Manufacturer guidance60mm wide joists/rails make them compatible with most of Wallbarn's extensive pedestal range. |
Height | 15 mm 20 mm 25 mm |
Warranty description | 15 year |
Uniclass | |
CAWS | Q25/127 Pedestal supported paving slab/ flag system Q55/110 Deck |
SKU Code | SP-RAIL-015-2500-Z, SP-RAIL-020-2500-Z, SP-RAIL-025-2500-Z |
Specification data - Aluminium structural sections
Classification data | |
Structural sections | |
Size | 15 x 60 x 2500 mm. Guidance for specification option: Height x width x standard section length. |
Finish | |
Worked | Polished. |
Applied | Not applicable. |
Colour | Natural (silver). |
Film thickness | Not applicable. |
Weight | 0.9 kg/m. |
Fire classification | To EN 13501-1: 2018, Class A1. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 20 % |
BIM objects
This BIM object has been authored to meet the requirements of the
Find out more about the
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Product certifications
Load Tolerance Test Certificate
Certification - Aluminium Rails / Joists Span Test
Load Tolerance Test Certificate
Certification - Aluminium Rails / Joists Maximum Displacement Test
Load Tolerance Test Certificate
Certification - 25mm Box Rail Maximum Displacement Test
Load Tolerance Test Certificate
Certification - 25mm Box Rail Span Test
Literature
Literature type
Brochure - Class A Substructure
Datasheet - Box Aluminium Rails / Joists

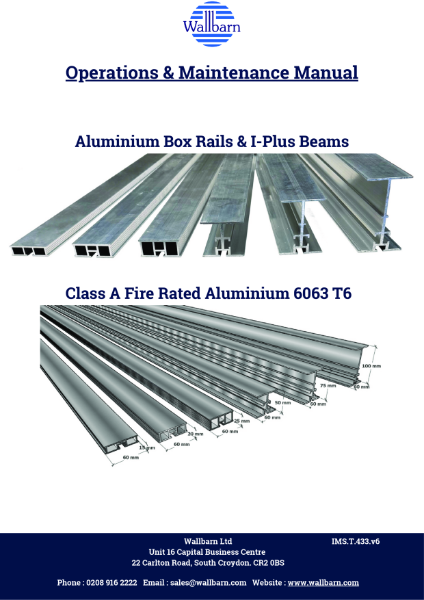

O & M Manual - Aluminium Box & I-Plus Rails / Joists
