Wall Panel Systems for Washrooms (HPL)
Application

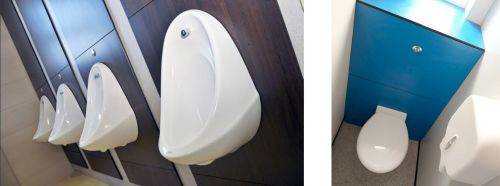

For use in bathroom environments, either inside a panel cubicle or for placement behind washbasins and urinals.

Please note that the timber frame is supplied separately - consult manufacturer for details.

Description

High pressure laminate (HPL) wall panels for washrooms.

Features and benefits:

  • Manufactured to suit project requirements - suitable for use with any ceiling height.
  • Hygienic, and easier to clean than painted walls.
  • Completes the appearance of a washroom, and can be manufactured to integrate with existing cubicle systems.
  • Available with a choice of edging.
  • Has a bespoke panel arrangement dependent on purpose - e.g. for installation inside a toilet cubicle or for placement behind washbasins and urinals.
  • Available in a wide range of colours.

Applications:

For use in bathroom environments, either inside a panel cubicle or for placement behind washbasins and urinals.

Please note that the timber frame is supplied separately - consult manufacturer for details.

General information

Material

20 mm HPL

Uniclass 2015

Ss_25_25_45_25 Duct and wall panel lining systemsPrimary

CAWS

K32/140 Duct/ wall linings – panels only

Specification data - Duct and wall panel lining systems

Product Reference

Wall Panel Systems for Washrooms (HPL)

Type

Full height, boxed unit

HPL panels mounted onto boxing.

Full height, panel system

Half height, boxed unit

HPL panels mounted onto boxing.

Half height, panel system

Size

-

Height

Half height: Up to 1200 mm. Full height: Up to 2800 mm. See 'Options' for details and insert requirements.

Width

Consult manufacturer and insert requirements.

Colour/ Finish

See manufacturer's literature and insert requirements.

Edging

2 mm polyvinyl chloride (PVC)

Post-formed vertical edges

Standard product features

Material:

20 mm HPL.

Product Options

Overall height:

- Panel build-up (washbasins/ urinals):

  • Bottom panel: 200 mm (standard).
  • Middle panel: 850 mm (standard).
  • Top panel: Variable, up to a finished complete height of 2800 mm (top panel can be a maximum height of 1750 mm).

- Panel build-up (toilet cubicle):

  • Bottom panel: 400 mm (standard).
  • Middle panel: 650 mm (standard).
  • Top panel: Variable, up to a finished complete height of 2800 mm (top panel can be a maximum height of 1750 mm).
