Walk On Rooflight / Walk On Floor

Verified by manufacturer 6 days ago

Next Generation Rooflights

An external walk on glass floor available with domestic or commercial loadings. Internal walk on floor again with domestic or commercial loadings. R11 Anti-Slip coatings and obscure finish available.

Jump to:
BOS
+44 (0)1223 792244 Website

Application

Suitable for use in:

  • All nominally flat roof constructions and coverings.
  • Green and sedum roofs.
  • Marine and coastal environments.

Description

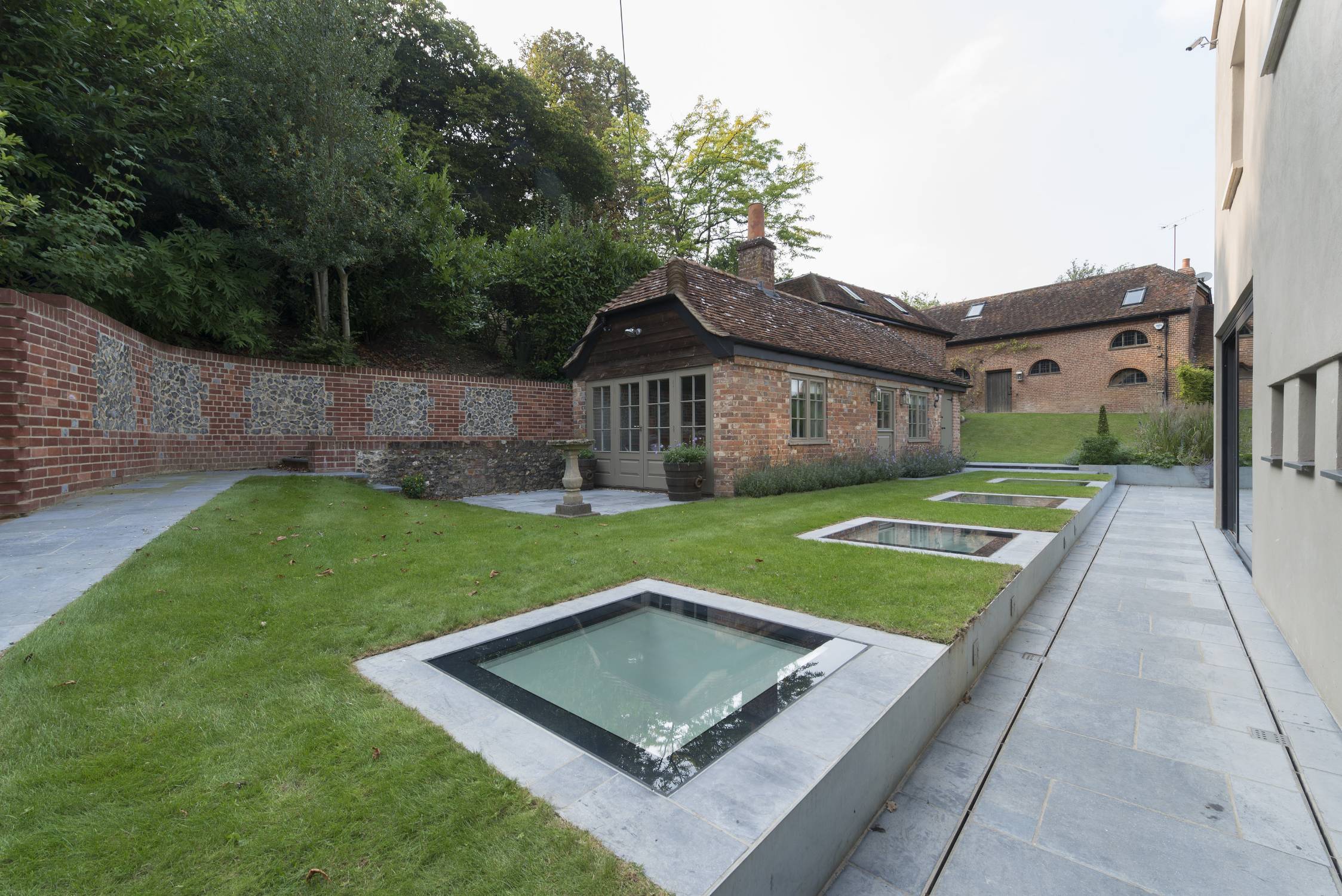

An external walk on glass floor.


Features and benefits:

  • Stainless steel concealed fixings.
  • Tested in accordance with Centre for Window and Cladding Technology (CWCT) standard.
  • Air and water resistance 1050 Pa.
  • Fully thermally broken.
  • Wind load resistance 2.0 kN/m².
  • Conforms to BS EN 1991-1 1.5 kN/m² UDL and 2.0 kN/m² PL.
  • Concentrated load (domestic loading).
  • Commercial loading available on request.
  • Upstand can be provided by the manufacturer, if required.
  • Enhanced glazing specifications incorporating anti slip, thermal, acoustic, security, light transmission, solar gain and decorative options are available, please contact manufacturer for details.

General information

Color

White

Grey

Other

Guidance for specification option:

Any RAL colour.

Beige

Black

Show more

Finish

Powder-coated

Manufacturer guidance

As per manufacturer and includes polyester powder coated.

Material

Aluminium

Glass

Steel

Shape

Square

Rectangle

Other

Circle

Elliptical

Show more

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Ten year

Uniclass

Pr_30_59_72_31 Framed rooflightsPrimary

CAWS

L10/45 Rooflights

L10/460 Rooflights

SKU Code

WOR / GF

Specification data - Framed rooflights

Classification data

Form

Square.
Rectangular.
Other.

Manufacturer guidance

Non-standard sizes and shapes are available on request; consult manufacturer for more information.

Size

-

Manufacturer guidance

Made to order, consult manufacturer for more details and insert requirements.

Frame

-

Material

Extruded aluminium.

Guidance for specification option:

6063-T6.

Finish

-

Coating

Polyester powder coating.

Colour

Anodized.
External RAL 7015 matt.
Internal RAL 9010 matt.
Grey.
White.
External RAL 7016 matt.
External RAL 9005 matt.
Other.

Manufacturer guidance

Any RAL or BS colour can be specified; consult manufacturer for more information.

Film thickness (minimum)

60 micrometres.

Glazing or infill

-

Type

Not required.
Toughened and laminate glass.

Guidance for specification option:

12 mm toughened and 12 mm toughened outer.

PVB.

Guidance for specification option:

1.52 mm PVB interlayer.

SGP.

Manufacturer guidance

Enhanced glazing specifications incorporating thermal, acoustic, security, light transmission, solar gain and decorative options are available; consult manufacturer for more information.

Accessories

Not required.
Upstand.

Guidance for specification option:

To suit an overall finished Upstand of 110 mm in width.

Thermal break

Required.

Fixings

Stainless steel.

Manufacturer guidance

Concealed fixings.

Water resistance

1050 Pa.

Manufacturer guidance

Air and water resistance.

Wind resistance

2.0 kN/m².

Guidance for specification option:

To BS EN 1991-1, 1.5 kN/m² UDL and 2.0 kN/m² PL concentrated load (domestic loading), commercial loading available on request.

Standards

To BS EN 1991-1.

U-value

1.1 W/m²K.

Manufacturer guidance

Glass centre pane U-value.

Spacer

Warm edge spacer; 16 mm; 90% argon cavity.

Seals

Structural and weather seal – Low modulus silicone sealant.
EPDM – UV & water resistant

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Aluminium
Glass
Steel

Recyclability

Glass & aluminum widely recycled

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

75 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

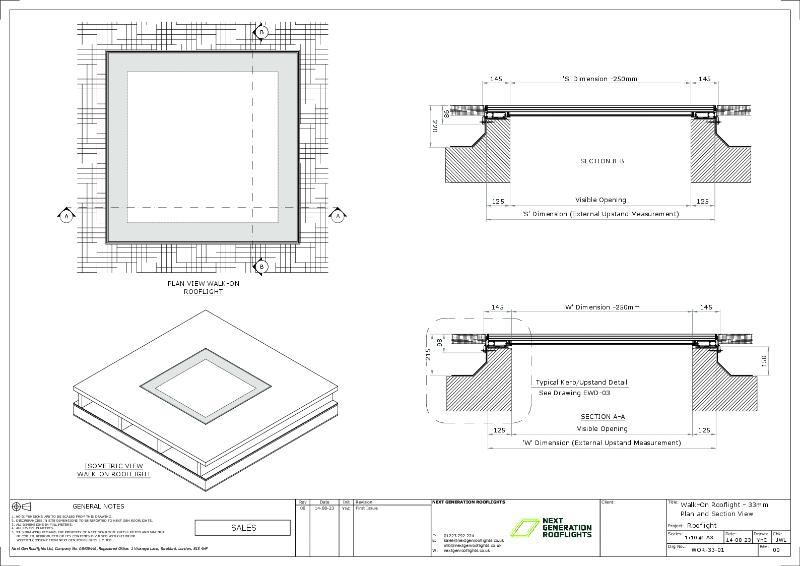

External Walk On Rooflight

External Walk On Rooflight

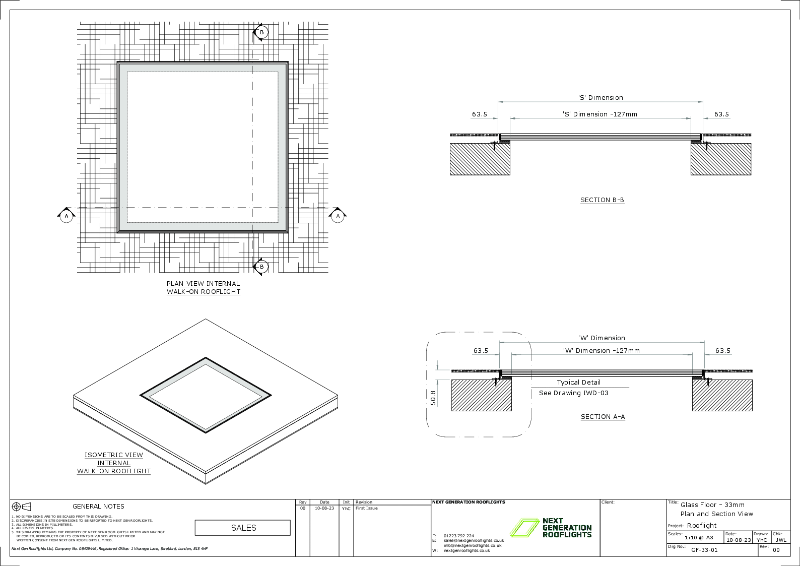

Internal Walk-On Rooflight

Internal Walk-On Rooflight
