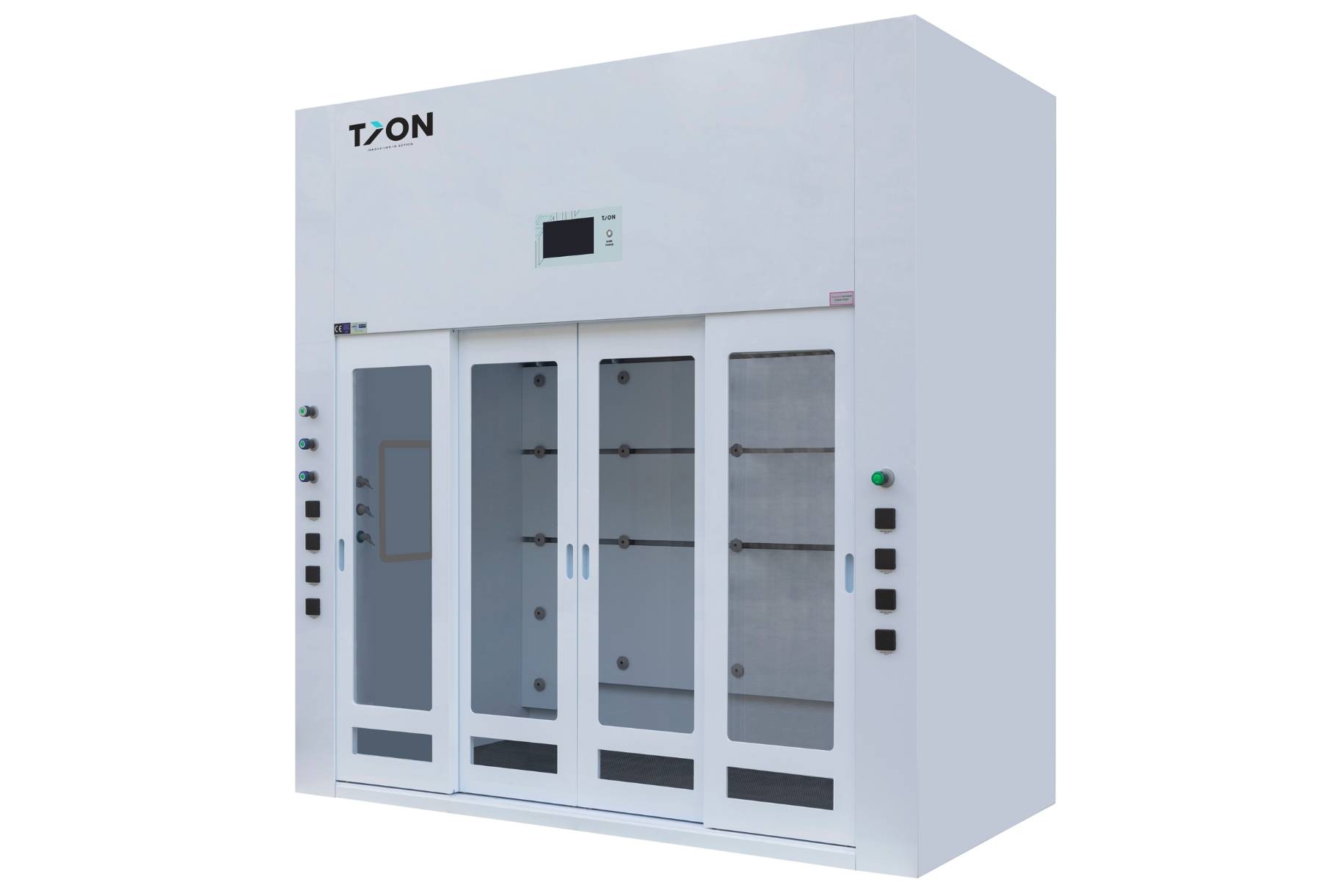

Walk-In Fume Cupboard, Ducted

Name: Walk-In Fume Cupboard, Ducted
Brand: Tion Global Ltd
SKU: hBcvCUwttpNsiaJrFqau9v

Verified by manufacturer 3 months ago

WI1200-D – Standard Model, Constant Air Volume

Tion Global Ltd

Third party certifications:

ISO 9001 Quality Management
Certificate type
Alcumus SafeContractor
Certificate type

Ducted ventilated enclosures for housing large equipment and processes.

Jump to:

BOS

01223 790028 Website

Application

Suitable for a range of research, educational, pharmaceutical, oil and gas and military applications.

Description

TIONS’s walk-in fume cupboards/enclosures safely house heavy or large equipment and materials that cannot be contained inside a regular fume cupboard. Walk-in fume cupboards or ventilated enclosures are designed to house heavy equipment like bioreactors and drum mixers. It supports access to the workspace at high and low levels, allowing staff to position and manoeuvre their apparatus or materials safely and efficiently. TION manufactures ducted and ductless walk-in fume cupboards using 100% medical-grade welded polypropylene.

Features and benefits:

100% Polypropylene carcass.
EN 14175 and ASHRAE 110-1995 certified.
Customisable dimensions.
Energy-efficient LED lighting.
Various lining materials include polypropylene, stainless steel, PPS, and Trespa.
7-inch (standard model) or 9-inch (pro model) touch-screen control panel.
Variable air volume (VAV) and auto sash are available as options.

General information

Color	White
Finish	Other
Material	Polypropylene
Shape	Rectangle
Length	1200 mm 1500 mm 1800 mm 2000 mm 2500 mm Bespoke Show more
Width	930 mm Bespoke
Height	2320 mm Bespoke
Warranty description	One year

Uniclass	Pr_60_65_31_33 General-purpose fume cupboardsPrimary

Specification data - General-purpose fume cupboards

Standard	To EN 14175.
Arrangement	Walk-in.
Special requirements	- Manufacturer guidance Insert requirements.
Extract air	-
Face velocity	0.5 ±0.1 m/s (100 ±20 FPM).
Operation	Continuous.
Materials	Polypropylene.
Sash	-
Sash arrangement	Horizontal sliding doors. Vertical single sash (weighted). Vertical dual sash (weighted).
Operation	Manual.
Dimensions	-
Overall depth	930 mm.
Overall width	1200 mm.
Lighting	-
Lighting type	LED lighting.
Illuminance at work surface (minimum)	800 lx.
Services	-
Water	-
Sink unit	Not required. Rubber sink. Polypropylene sink.
Water supply	Not required. Cold water supply. Hot water supply. Reverse osmosis water supply. Demineralized water supply.
Drainage	Not required. 200 mm side well (drip cup). Other. Guidance for specification option: Insert drainage requirements for the sink if selected. Manufacturer guidance Insert requirements or omit.
Electricity	-
Power requirements	110 V, 50/60 Hz, single-phase. 220 V, 50/60 Hz, single-phase. Manufacturer guidance A three-phase power supply can be specially ordered. Consult manufacturer for details.
Electrical socket outlets	Four. Manufacturer guidance Single phase, 3A, 240 V, 50 Hz.
Location	Sockets on front face of fume cupboard.
Gas outlets	Not required. Nitrogen. Argon. Hydrogen. Vacuum. Compressed Air. Other. Guidance for specification option: Consult manufacturer and insert requirements.
Airflow indicator with audible and visual alarms	Constant airflow monitoring and display with visual alarm on screen and integrated internal red light alarm system.
Controls	-
Controller type	Touch screen control panel, 7-inch. Guidance for specification option: Full-colour touch screen with air flow velocity, low airflow alarms, lighting controls and calibration settings.
Control modes	Night setback mode, Eco mode.
Accessories	Not required. Centrifugal fans. Fold out benchtops. Glove apertures. Multisash. Partitions. Shelves. Sumps. Vacuum tap.

Lining	Polypropylene. Guidance for specification option: As standard. Stainless steel. PPS. Trespa.
Safety devices	Not required. Co2/ powder fire suppression. External interlock emergency stop.
Cover	304 stainless steel bund cover, grated design. 304 stainless steel bund cover, sheet design.
Flooring	Polypropylene. Stainless steel. Electro static dissipative (ESD).

Sustainability data

Contains Red List materials	No
Country of material origin	Germany
Material	Polypropylene
Expected Life	Ten year

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	-	1
IFC	-	1

Third party certifications

ISO 9001 Quality Management

ISO 9001:2015

Alcumus SafeContractor

SafeContractor

Literature

Walk-In Fume Cupboard Technical Data Sheet

Case studies

Teesside University

Cytiva

Puraffinity
