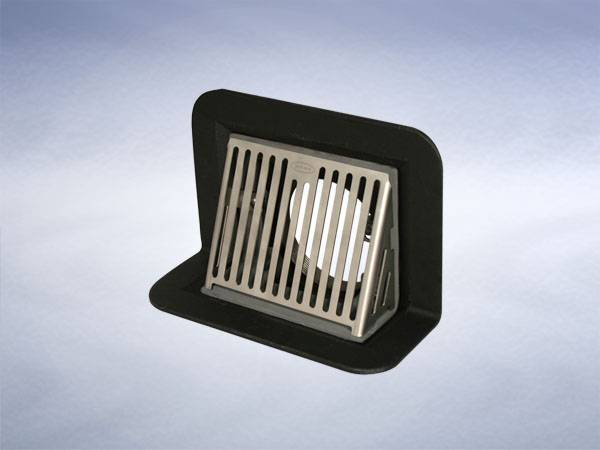

Wade (WF Series) Cast Iron Roof Outlets
Verified by manufacturer 1 month ago
WF002
WF002
UKAS
Certificate type
Cast Iron Two Way Roof Outlet With Choice of Grating Material, For Parapet Wall Drainage
Application
Suitable for use in draining horizontally through a parapet wall on a flat roof.
Description
WF Series parapet outlets are available with choice of grating – cast iron, aluminium, stainless steel and nickel bronze. A version is available for use with PVC single ply membranes.
Balcony outlets are available with full grating or with cut-out version to accept a downpipe.
General information
Color | Black |
Material | Cast iron Aluminium Stainless steel Steel Bronze Guidance for specification option: Nickel Bronze. Manufacturer guidanceA version is available for use with PVC single ply membranes. |
Shape | Circle Guidance for specification option: Horizontal and vertical applications. |
Length | Bespoke |
Width | 50 mm Guidance for specification option: 2" BSP. 80 mm Guidance for specification option: 3" BSP. 100 mm Guidance for specification option: 4" BSP. 150 mm Guidance for specification option: 6" BSP. Manufacturer guidanceRound. |
Height | 50 mm Guidance for specification option: 2" BSP. 80 mm Guidance for specification option: 3" BSP. 100 mm Guidance for specification option: 4" BSP. 150 mm Guidance for specification option: 6" BSP. Manufacturer guidanceRound. |
Uniclass | |
CAWS | R10/26 Proprietary rainwater outlets R10/365 Proprietary rainwater outlets |
Product range |
Specification data - Gravity rainwater outlets
Roof construction | |
Form | Parapet Drainage. |
Roof insulation thickness | Manufacturer guidanceVaries, consult manufacturer. |
Material | Cast Iron. |
Grating | Domed. |
Spigots | Threaded. |
Integral accessories | Body.Clamping Ring.Grating. |
Standard | To BS EN 12056. |
Colour: | Black. |
Diameter | 50 mm (2" BSP). |
Orientation | Horizontal application. |
Material | Cast iron. Aluminium. Stainless steel. Nickel Bronze. Version for use with PVC. Guidance for specification option: A version is available for use with PVC single ply membranes, consult manufacturer. |
Sustainability data
Contains Red List materials | No |
Material | Cast iron Aluminium Stainless steel Steel Bronze Guidance for specification option: Nickel Bronze. Manufacturer guidanceA version is available for use with PVC single ply membranes. |
Recyclability | 100% |
Expected Life | 60 year |
Third party certifications
UKAS
ISO 9001 - Halstead Site
Literature
Wade Roof Brochure
