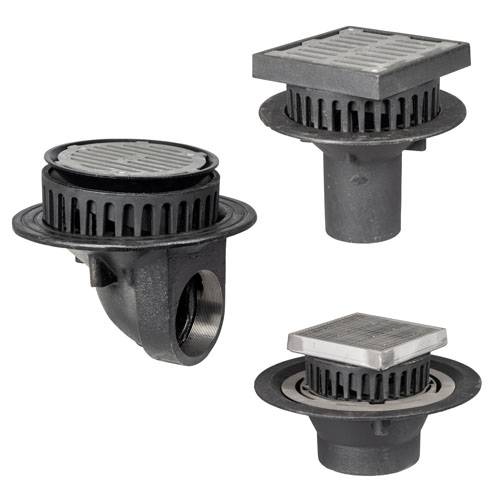

Wade (WD Series) Cast Iron Roof Outlets
Verified by manufacturer 4 months ago
WD202
WD202
UKAS
Certificate type

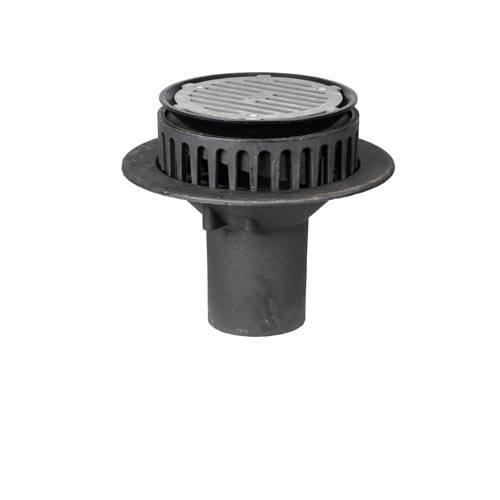

Cast iron roof outlet for use on inverted roof.
Application
Suitable for use primarily on inverted roof applications.
Description
A cast iron roof outlet suitable for use in inverted roof applications with a generous flange, essential for bonding asphalt or other membranes. All fixings are made from stainless steel.
Generally, rainwater flows between any paving slabs, through any porous ballast and insulation, onto and along the membrane, to drain away through a roof outlet.
An inverted roof is constructed such that the waterproofing membrane is above the roof deck and beneath the insulation.
General information
Color | Black |
Material | Cast iron |
Shape | Circle Guidance for specification option: Horizontal and vertical applications. |
Length | Bespoke |
Width | 50 mm 75 mm 80 mm Guidance for specification option: 3" BSP. 100 mm 150 mm Guidance for specification option: 6" BSP. Manufacturer guidanceRound. |
Height | 50 mm 75 mm 80 mm Guidance for specification option: 3" BSP. 100 mm 150 mm Guidance for specification option: 6" BSP. Manufacturer guidanceRound. |
Uniclass | |
CAWS | R10/26 Proprietary rainwater outlets R10/365 Proprietary rainwater outlets |
Product range |
Specification data - Gravity rainwater outlets
Roof construction | |
Form | Inverted roof. |
Roof insulation thickness | Manufacturer guidanceVaries, consult manufacturer. |
Material | Cast Iron. |
Grating | Flat. |
Spigots | Spigoted. |
Integral accessories | Body.Clamping Ring.Grating. |
Standard | To BS EN 12056. |
Colour: | Black. |
Diameter | 50 mm. |
Orientation | Vertical application. |
Sustainability data
Contains Red List materials | No |
Material | Cast iron |
Recyclability | 100% |
Expected Life | 60 year |
Third party certifications
UKAS
ISO 9001 - Halstead Site
Literature
Wade Roof Brochure
