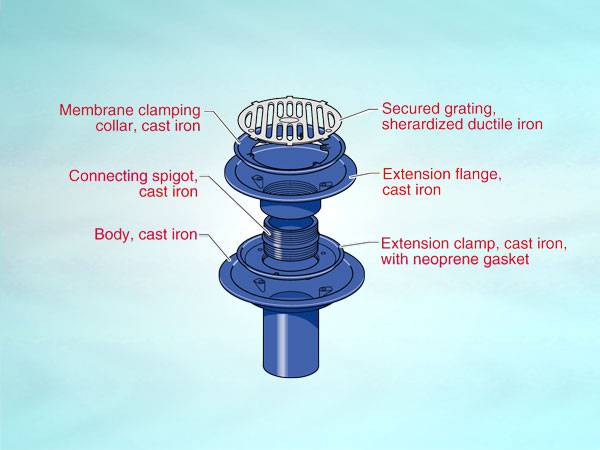

Wade (WC Series) Cast Iron Roof Outlets
Verified by manufacturer 1 month ago
WC202
WC202
UKAS
Certificate type
Cast Iron Roof Outlet For Use On Warm Roof
Application
Suitable for use primarily in warm roof applications
Description
A cast iron roof outlet for use in warm roof applications with a generous flange, essential for bonding asphalt or other membrane. All fixings are of stainless steel.
A warm roof is constructed such that the waterproofing membrane is above insulation which is laid on the roof deck.
General information
Color | Black |
Material | Cast iron |
Shape | Circle Guidance for specification option: Horizontal and vertical applications. |
Length | Bespoke |
Width | 50 mm 75 mm 80 mm Guidance for specification option: 3" BSP. 100 mm 150 mm Guidance for specification option: 6" BSP. Manufacturer guidanceRound. |
Height | 50 mm 75 mm 80 mm Guidance for specification option: 3" BSP. 100 mm 150 mm Guidance for specification option: 6" BSP. Manufacturer guidanceRound. |
Uniclass | |
CAWS | R10/26 Proprietary rainwater outlets R10/365 Proprietary rainwater outlets |
Product range |
Specification data - Gravity rainwater outlets
Roof construction | |
Form | Warm Roof. |
Roof insulation thickness | Manufacturer guidanceVaries, consult manufacturer. |
Material | Cast Iron. |
Grating | Domed. |
Spigots | Spigoted. |
Integral accessories | Body.Clamping Ring.Grating. |
Standard | To BS EN 12056. |
Colour: | Black. |
Diameter | 50 mm. |
Orientation | Vertical application. |
Sustainability data
Contains Red List materials | No |
Material | Cast iron |
Recyclability | 100% |
Expected Life | 60 year |
Third party certifications
UKAS
ISO 9001 - Halstead Site
Literature
Wade Roof Brochure
