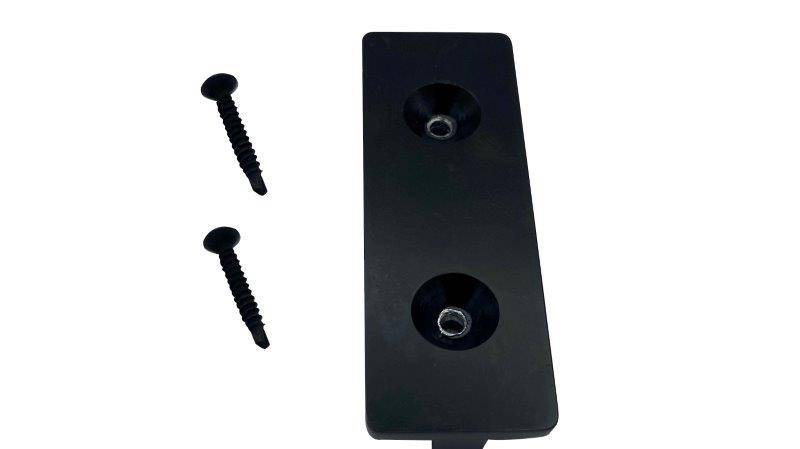

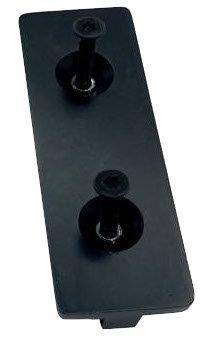

W Clip - Class A Black Aluminium Hidden Fixing Decking Clip with Screws Included.

Verified by manufacturer 5 months ago

SP-RAIL-W-CLIP-030-BL-Z

Wallbarn Ltd Variant:
Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Electro-coated aluminium W Clip supplied with screws included.

Jump to:
BOS
+44 (0)20 8916 2222 Website

Application

Designed for fire rated, Class A non-combustible decking projects. Designed to fit Exadeck porcelain and C deck cement fibre deck boards.

Also suitable for any deck boards with a side central milling profile.

Description

W Clip is a hidden fixing clip for deck boards made from electro-coated aluminium. This gives W Clip a Class A fire class rating, making it highly suited for use with Wallbarn’s comprehensive fire rated non-combustible decking system.


W Clip is available in lengths of 30 mm and 60 mm and a width of 5 mm at the underside, so the gap between deck boards once fitted will be between 5 and 6 mm.



W Clip is supplied with the fixing screws included and attached to the clips for easier and faster installation. Being made from aluminium, W Clip is rated Class A1 so is suitable for non-combustible decking projects.



The 60 mm clip has been designed to be fitted to Wallbarn 60 mm wide I Plus and Box Rails (made from aluminium) and to fully cover any silver colour from the rails being visible from above once installed.


Wallbarn recommends pre-drilling aluminium rails/ joists before fitting fixing clips.



Features and benefits:

  • A1 fire class rating.
  • Bespoke design.
  • Designed to fit boards with central side milling profiles.
  • Supplied with the black stainless steel screws part-inserted into the screw chambers.
  • Jig for pre-drilling pilot holes supplied with clips.
  • Provides a 5–6 mm gap between deck boards.
  • Mould and water resistant.
  • Resistant to deterioration by UV light, damp and normal atmospheric conditions in the long term.

General information

Color

Black

Finish

Electro polished

Material

Aluminium

Shape

Rectangle

Length

30 mm

60 mm

Width

21 mm

Height

11.5 mm

Warranty description

15 year

Uniclass

Pr_20_29_14_22 Deck board clipsPrimary

CAWS

Q55/380 Deck boards

Q55/110 Deck

Product range

Fire Rated Paving and Decking Systems
Decking and Substructure

Specification data - Deck board clips

Clip details

-

Material

Aluminium.

Finish

Electro plated.

Length

30 mm.

Fire classification

To BS EN 13501-1, Class A1.

Accessories

Not required.

Start/ end clip.

Guidance for specification option:

Powder coated in matt black and meets Class A2 fire rating.

Wallbarn stainless steel self tapping screw for aluminium joists.

Wallbarn wood or wood plastic composite (WPC)/ composite screw for timber and composite joists.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Aluminium

Recyclability

Fully recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Literature

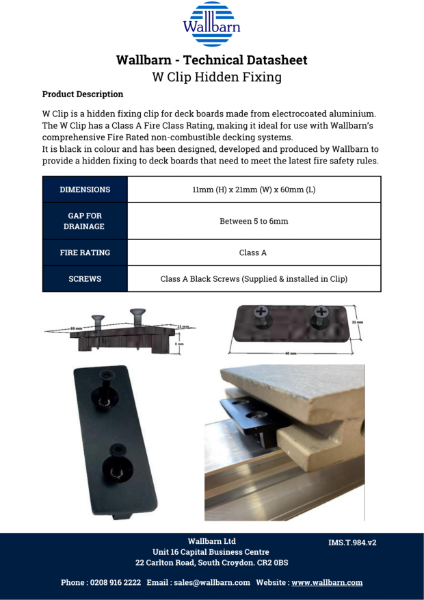

Datasheet - W Clip Class A Hidden Fixing

Datasheet - W Clip Class A Hidden Fixing
