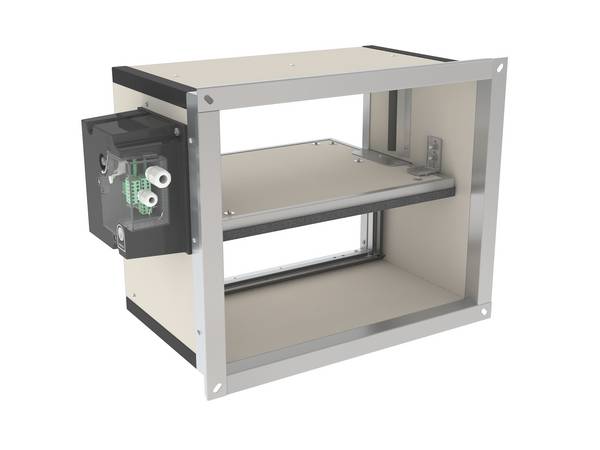

VU120 - Smoke Control Damper - Single-blade - Rectangular Smoke Control Damper

Verified by manufacturer 7 months ago

Multi-compartment

Rf-Technologies Variant:
Third party certifications:
  • DoP

    DoP

    Certificate type

  • Efectis NL

    Certificate type

"BS EN 1366-10 AA certified" smoke control damper, with a fire resistance (EIS) upto 120 minutes. For installation in vertical and horizontal smoke extraction ducts and shafts.

Jump to:
+44 7939316006 Website

Application

"BS EN 1366-10 AA certified" smoke control damper, with a fire resistance (EIS) up to 120 minutes.


VU120 Fields of application:

  • SHEVS smoke and heat exhaust ventilation systems.
  • Pressure differential systems (PDS).
  • Gas extinguishing systems.
  • Suited for smoke extraction and air supply.
  • Suited for mechanical and natural smoke extraction systems.


VU120 Building applications:

  • Industrial, commercial & residential buildings.
  • Hospitals and care houses.
  • Data centres and battery plants.
  • Universities, colleges and schools.
  • Detention institutes.

Description

"BS EN 1366-10 AA certified" smoke control damper, with a fire resistance (EIS) upto 120 minutes.


For installation in vertical and horizontal smoke extraction ducts and shafts.


VU120 Distinct Product Features

  • CE certified against EN 1366-10 and EN 12101-8.
  • UKCA certified.
  • Certified for installation in vertical and horizontal smoke extraction ducts and shafts, made of different materials.
  • For use in single and multi-compartment smoke extraction ducts.
  • Tested to the highest pressure class (level 3 at 1500 Pa).
  • Up to 120 minutes classification for integrity (E), smoke leakage (S) and insulation (I).
  • AA-applications (automatic activation), with choice of different actuators:
  • Belimo motorized range (24/ 230 V).
  • Natural magnet actuation (24/ 48 V d.c. - pulse activation) with optional resetting motor.
  • Electromagnet actuation (24/ 48 V d.c. - interruption activation) with optional resetting motor.
  • Single insulated damper blade.
  • Several flange options, including direct shaft connection, rectangular (metal) duct connection, finishing grill or circular connection.
  • Range of standard sizes (intermediate dimensions on request).
  • For indoor use.
  • Maintenance-free.
  • Designed for use with ZENiX controls.
  • ZENiX field module to drive Belimo smoke control damper actuator.


VU120 user benefits:

  • Can be used for both single and multi-compartment applications.
  • Can be used for additional ventilation purposes (night cooling application).
  • Smoke tightness tested at highest pressure level (1500 Pa).
  • Large selection of connection types (flanges) to fit to the chosen installation method and application.


VU120 range: (Width/Height)

  • Sizes from 200 x 200 mm, to 1200 x 800 mm and 1000 x 1000 mm, in steps of 50 mm.
  • Intermediate dimensions on request.
  • Extended frame available to incorporate exceeding blade.


Notes:

  • For information about the different types of installation and sealing methods please consult the Markage MB Product application field and or the Declaration of Performance (DoP).
  • For wall-mounted classifications for single blade rectangular smoke control dampers, check out the VUW120.

General information

Color

Silver

Cream

Finish

Other

Galvanized

Epoxy

Material

Calcium silicate

Metal

Steel

Shape

Rectangle

Square

Length

Bespoke

Guidance for specification option:

Depth.

350 mm

Width

200 mm

250 mm

300 mm

350 mm

400 mm

Show more

Manufacturer guidance

Nominal.

Height

200 mm

250 mm

300 mm

350 mm

400 mm

Show more

Manufacturer guidance

Nominal.

Warranty description

One year

Uniclass

Pr_65_65_24_80 Smoke dampersPrimary

CAWS

U90/445 Dampers, smoke

Specification data - Smoke dampers

Standard

To EN 12101-8:2011.

Classification

-

Standard

To EN 13501-4.

Multi-compartment

-

Integrity class

EI 60.

EI 90.

EI 120.

Manufacturer guidance

Subject to shaft type and sealing; consult manufacturer for requirements.

High operational temperature

NPD.

Suitability

Ve duct; Ho duct.

Smoke leakage

S.

Under pressures

1500.

Inside or outside

(i ↔ o).

Smoke control use

C10000.

Single compartment

-

Integrity class

-

Suitability

-

Smoke leakage

-

Inside or outside

-

Aerodynamic performance

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details.

Activation

AA – automatic.

Actuators

KITS BLE24.

Guidance for specification option:

BLE 24 V actuator for smoke control dampers.

KITS BLE24-ST.

Guidance for specification option:

BLE 24 V actuator for smoke control dampers with plug (ST).

KITS BLE230.

Guidance for specification option:

BLE 230 V actuator for smoke control dampers.

KITS NF24.

Guidance for specification option:

Actuator NF 24 V.

KITS SF24.

Guidance for specification option:

Actuator SF 24 V.

KITS NF230.

Guidance for specification option:

Actuator NF 230 V.

KITS SF230.

Guidance for specification option:

Actuator SF 230 V.

KITS NF/SF-VD.

Guidance for specification option:

NF/SF-VD module (NF24/SF24: 24-48 V d.c.). Only for France.

KITS MANF EVO VD24 FDCU.

Guidance for specification option:

Upgradeable remote controlled unlocking mechanism with natural magnet 24 V d.c. + FDCU.

KITS MANF EVO VD48 FDCU.

Guidance for specification option:

Upgradeable remote controlled unlocking mechanism with natural magnet 48 V d.c. + FDCU.

KITS MANF EVO VM24 FDCU.

Guidance for specification option:

Upgradeable remote controlled unlocking mechanism with electromagnet 24 V d.c. + FDCU.

KITS MANF EVO VM48 FDCU.

Guidance for specification option:

Upgradeable remote controlled unlocking mechanism with electromagnet 48 V d.c. + FDCU.

KITS VD24 MAN EVO FDCU.

Guidance for specification option:

Natural magnet 24 V d.c. + FDCU.

KITS VD48 MAN EVO FDCU.

Guidance for specification option:

Natural magnet 48 V d.c. + FDCU.

KITS VM24 MAN EVO FDCU.

Guidance for specification option:

Electromagnet 24 V d.c. + FDCU.

KITS VM48 MAN EVO FDCU.

Guidance for specification option:

Electromagnet 48 V d.c. + FDCU.

Dimensions

Guidance for specification option:

Consult manufacturer's literature for performance details and insert requirements:

  • Nominal height: 200–1000 mm in 50 mm increments.
  • Nominal width: 200–1000 mm in 50 mm increments.

Overall height = nominal height + 24 mm.

Overall width = nominal width + 24 mm.


Intermediate dimensions available on request; consult manufacturer for details. Note that heights between ≥275 and ≤299 mm are not possible.


Consult manufacturer for performance data and unit weights based on requirements.

Flange

PG30 2 flange, alternative connection to standard PS at the shaft side.

Guidance for specification option:

PG30 connection to ducts with 30 mm flanges, with elliptical holes Ø 8.5 x 16 mm.

PS - no connection.

Guidance for specification option:

Standard connection shaft side.

Also possible on shaft side: PG30, PG20, PG40, PM.

PG30, connection to ducts with 30 mm flanges.

Guidance for specification option:

Either by sliding profile or with bolts.

Also possible on shaft side instead of PS connection (at time of order).

Elliptical holes Ø 8.5 x 16 mm.

PG20, connection to ducts with 20 mm flanges.

Guidance for specification option:

Elliptical holes Ø 6.5 x 16 mm.

Also possible on shaft side instead of PS connection (at time of order).

PG40 flange.

Guidance for specification option:

Connection to ducts with 40 mm flanges, elliptical holes Ø 8.5 x 16 mm.

Also possible on shaft side instead of PS/ PG30 connection (at time of order).

Show more

Manufacturer guidance

See also Accessories for related options.

Accessories

MECT testbox for mechanisms 24/ 48 V.

KITS FDCU MAN limit switch 'open/closed' .

KITS FDCB MAN auxiliary limit switch 'open/closed'.

KITS ME MANF resetting motor ME 24/ 48 V.

PPT (+PG3V) grill.

Guidance for specification option:

Very well suited as protection grill on the end piece of a duct system (PG3V + PPT).

Possible on mechanism side instead of PG30 connection (at time of order).

Show more

Third-party certification

CE marked Efectis - 1812-CPR-1595.
NF 537 marked 18.28.

Sustainability data

Country of material origin

Belgium

Guidance for specification option:

Primarily Belgium, consult manufacturer for details of other potential countries.

Country of product manufacture

Belgium

Material

Calcium silicate

Metal

Steel

BIM objects

Platform Compatible Version
Revit
 -

1

Third party certifications

DoP

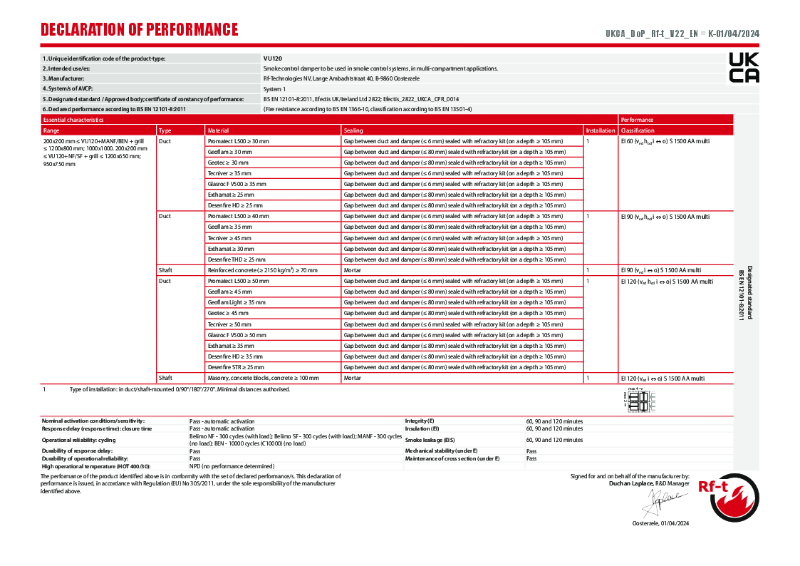

VU120 Declaration of Performance (DoP)

Efectis NL

Efectis NL

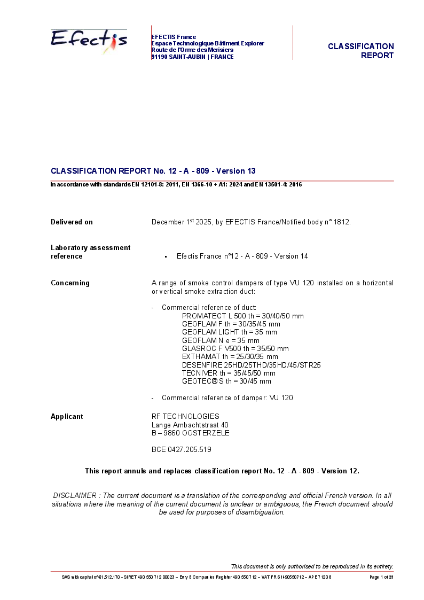

VU120 Classification Report

Literature

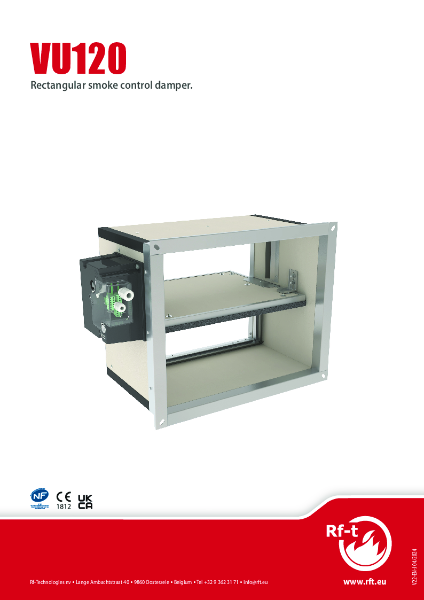

VU120 Technical Product Documentation

VU120 Technical Product Documentation
