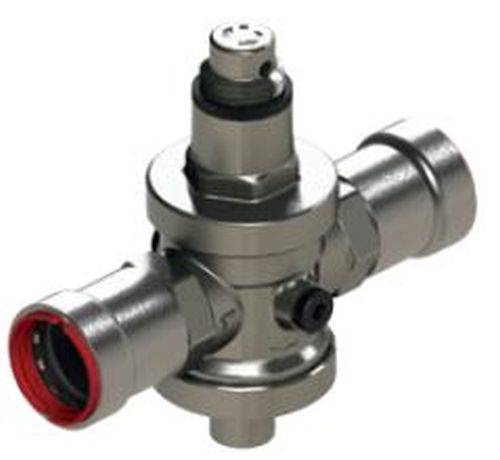

VSH PowerPress® Pressure Reducing Valve

Application

  • Suitable for use in heating, cooling and compressed air installations, especially suitable for repair or renovation projects.
  • See manufacturer's literature for detailed information regarding pipe suitability for these fittings and other technical data.

Description

Pressure reducing valve for use with VSH PowerPress® fittings, featuring a maximum pressure of 16 bar and an operating temperature of -10°C to +80°C.


Features and benefits:

  • Corrosion resistant.
  • Allows high system pressures to be adjusted.
  • Protects downstream equipment.
  • Includes visual press indicators.
  • Nickel plated brass finish.
  • Maximum inlet temperature of 80ºC.
  • Suitable for non-potable water applications.
  • Includes socket transport protection.
  • For use with PowerPress® pipe fittings.

General information

Material

DZR brass

Valve

Carbon steel zinc, nickel plated

Valve adaptor

Ethylene propylene diene monomer (EPDM)

PowerPress® 'O' ring

Stainless steel

Spacer ring and grab ring

Polypropylene

Visu-Control® ring and protection cap

Uniclass 2015

Pr_65_54_95_64 Pressure-regulating valvesPrimary

CAWS

S90/110 Mains cold water supply

S90/120 Storage cold water supply

S90/130 Instantaneous hot water supply

S90/140 Direct hot water storage supply

S90/150 Indirect hot water storage supply

S90/160 Rainwater/ greywater recycling system

Specification data - Pressure-regulating valves Enhanced data

Product Reference

VSH PowerPress® Pressure Reducing Valve

Type

PP4 Pressure Reducing Valve PN16.

Available in ½", ¾", 1", 1¼", 1½" or 2".

Accessories/ Other requirements

A range of tools and other accessories are available, insert requirements from manufacturer's literature.

Literature

VSH PowerPress

VSH PowerPress
