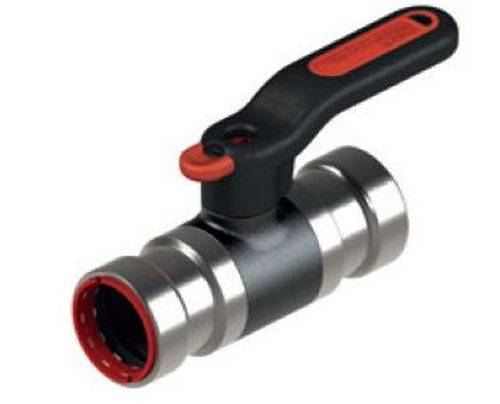

VSH PowerPress® Ball Valves

Application

  • Suitable for use in heating, cooling and compressed air installations, especially suitable for repair or renovation projects.
  • See manufacturer's literature for detailed information regarding pipe suitability for these fittings and other technical data.

Description

Full bore ball valve with integrated VSH PowerPress® connection featuring an operating temperature of -10°C to +135°C.


Maximum pressure:

  • Water: 16 bar.
  • Compressed air: 10 bar.


Features and benefits:

  • Corrosion resistant and brass bodied.
  • Includes lockable latching handle, identifiable lock indication, visual press indicators and reversible handle insert.
  • Suitable for non-potable water applications.
  • Includes socket transport protection.
  • For use with PowerPress® pipe fittings.

General information

Material

DZR brass (CW511L)

Body

Carbon steel zinc, nickel plated

Cap

Ethylene propylene diene monomer (EPDM)

PowerPress® 'O' ring

Stainless steel

Polypropylene

Visu-Control® ring and protection cap

Size

Consult manufacturer's literature for further information on each type.

½"

¾"

1"

1¼"

1½"

Show more

Uniclass 2015

Pr_65_54_95_06 Ball valvesPrimary

CAWS

S90/110 Mains cold water supply

S90/120 Storage cold water supply

S90/130 Instantaneous hot water supply

S90/140 Direct hot water storage supply

S90/150 Indirect hot water storage supply

S90/160 Rainwater/ greywater recycling system

S90/625 Ball valves

S90/625 Ball valves

Specification data - Ball valves Enhanced data

Product Reference

VSH PowerPress® Ball Valves

Type

PP550 Ball Valve EL PN16.

Ball valve with extended stem.

PP550 Ball Valve PN16.

Standard ball valve.

PPSU550 Ball Valve EL PN16.

Ball valve with union connection and extended stem.

PPSU550 Ball Valve PN16.

Ball valve with union connection.

Accessories/ Other requirements

A range of tools and other accessories are available, insert requirements from manufacturer's literature.
