Verified by manufacturer 8 months ago
529370 - 2500 mm

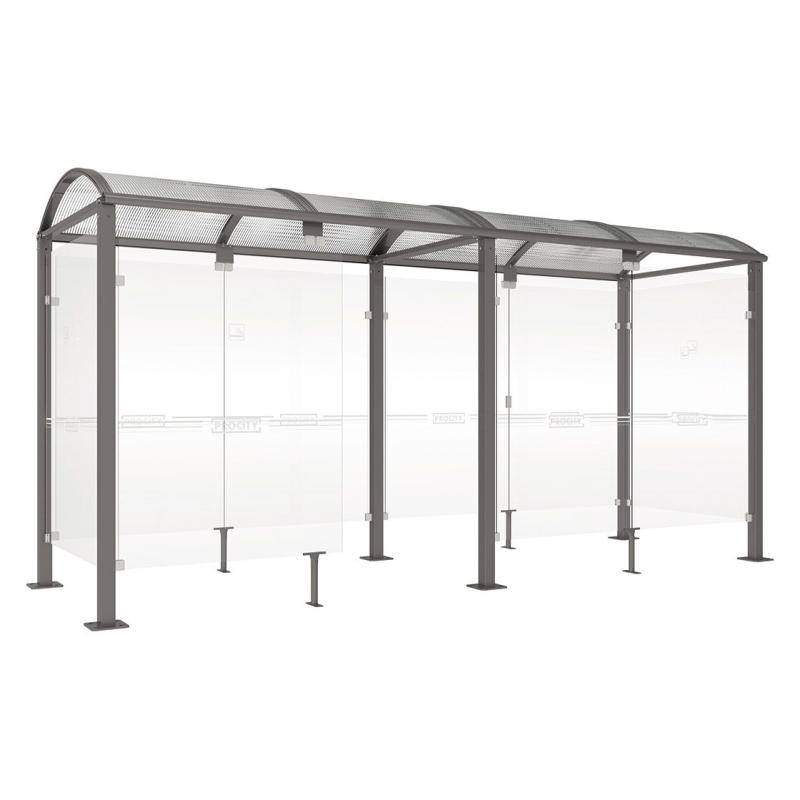

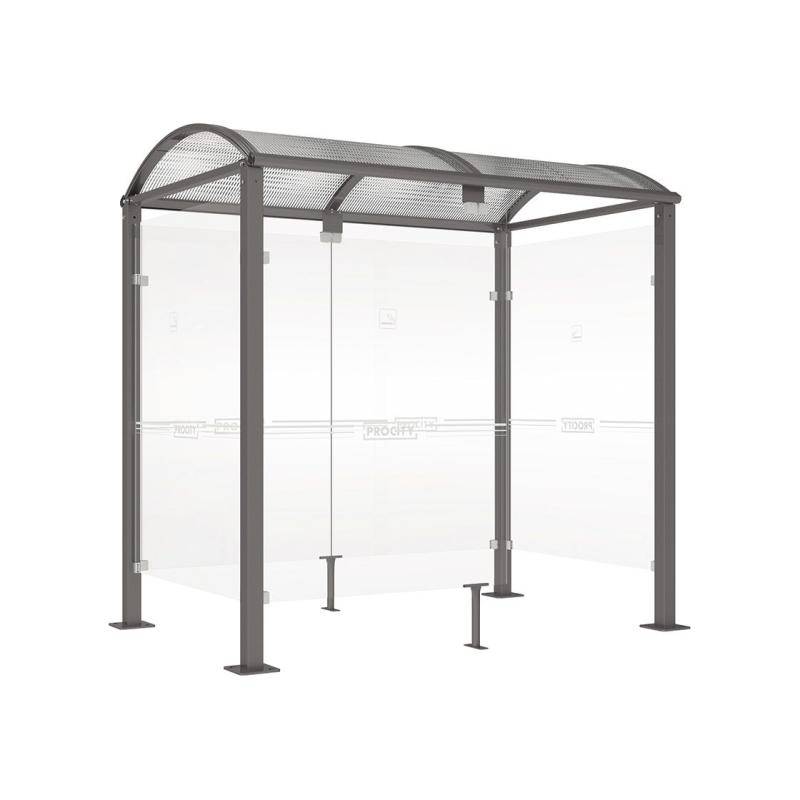

Smoking and vaping shelter.
Suitable for a variety of applications specifically designed as a smoking and vaping shelter. Found in more higher end establishments.
UK compliant versions available without the wrap around UK Compliant Voute Smoking Shelter - Smoking or vaping shelters - Smoking and vaping solutions - Procity UK
A smoking shelter that creates a spacious area where smokers are protected from the elements.
Features and benefits:
Color | Red Blue Green Brown Grey |
Finish | Galvanized Painted Powder-coated |
Material | Steel Aluminium Polycarbonate |
Shape | Rectangle |
Length | 2500 mm 5000 mm |
Width | 1560 mm Guidance for specification option: Depth |
Height | 2540 mm |
Uniclass | |
CAWS | B91/330 Canopy B91/390 Smoking shelter B91/385 Shelter |
Shelter description | Smoking and vaping shelter. |
Dimensions | |
Plan size | 2500 x 1560 mm. |
Height | 2540 mm. |
Frame | |
Material | Steel. |
Finish | Galvanized and painted.Guidance for specification option: RAL colours available for paint: RAL 3020, RAL 3004, RAL 5010, RAL 6005, RAL 8017, RAL 7044, RAL 9010, RAL 9005, Procity grey and Corten effect. |
Colour | Red.Blue.Green.Brown.Grey.White.Black.Procity grey.Corten effect. |
Flooring or decking | Baseplates. |
Cladding | |
Material | Glazing plastics. |
Finish | 8 mm safety glass with safety markings. |
Colour | Translucent. |
Roof covering | Aluminium-tube crossbars, dome supports with polycarbonate dome. |
Integral services | None.Guidance for specification option: As standard. LED lighting.Guidance for specification option: 220 V |
Accessories | Wind protectors around roof.Perch seat.Seating. |
Cladding | Front, side and back panels, 8 mm safety glass with safety markings. |
Contains Red List materials | Yes |
Country of material origin | France |
Country of product manufacture | France |
Recyclability | Steel 100% recyclable. |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
