Voute Bike Shelter
Verified by manufacturer 3 months ago
A shelter for outdoor bike storage.
Application
Suitable for outdoor areas.
Description

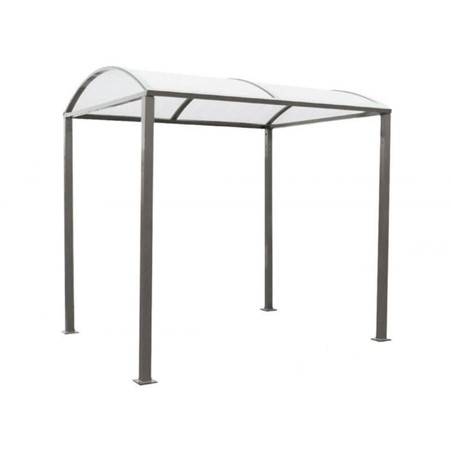

The Voute Bike Shelter can provide protection for bikes while they are being stored outdoors. Each shelter is made with galvanized steel and aluminium frames, and polycarbonate roof glazing.

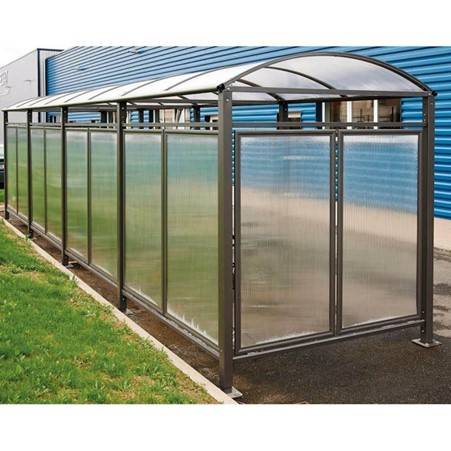

Optional rear and side cladding is available for a more enclosed storage option. The shelters also have optional LED lighting available on request. Optional extension units also allow for easier extension of existing basic units.
Features and benefits:
- Optional extension - consult manufacturer.
- 80 x 80 mm galvanized steel tubes.
- Aluminium crossbeams and gutters.
- 6 mm anti-UV cellular polycarbonate glazing.
- Optional back and side cladding - added protection.
- 10 mm polycarbonate on back and side cladding.
- Optional LED lighting available - consult manufacturer.
- Adustable feet - easier installation on uneven ground.
- Choose from ten standard colour options.
General information
Color | Grey White Blue Orange Black |
Finish | Painted |
Material | Steel Aluminium Polycarbonate |
Shape | Rectangle |
Length | 2500 mm |
Width | 2090 mm |
Height | 2635 mm |
Warranty description | One year |
Uniclass | |
CAWS | B91/340 Cycle shelter |
Specification data - Open-sided shelters
Shelter description | Rectangular, with curved roof. |
Dimensions | |
Plan size | 2.5 x 2.09 m. |
Height | 2.635 m. |
Frame | |
Material | Structural steel and aluminium. |
Finish | Galvanized and painted. |
Colour | Procity Grey.RAL 9010.RAL 5010.RAL 3020.RAL 9005.RAL 7044.RAL 3004.RAL 6005.RAL 8017.Corten effect. |
Roof covering | 6 mm translucent anti-UV cellular polycarbonate glazing. |
Rainwater drainage | Aluminium guttering. |
Accessories | None.Internal LED lighting.Guidance for specification option: Factory-fitted LED lighting strips in the crossbeams (power supply of 220 V required). Electrical installation to be carried out by a professional. Circuit breaker not included. Side and back-cladding, 10 mm polycarbonate.Extension unit, 2.5 x 2.09 x 2.635 m. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | France |
Recyclability | Non-recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Literature

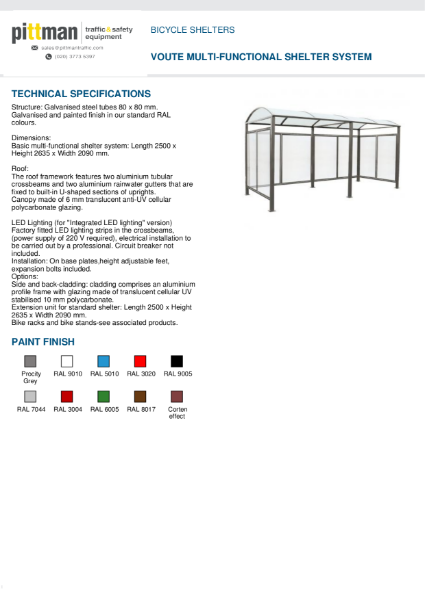

Voute Bike Shelter Data Sheet
