This product is no longer available

Description

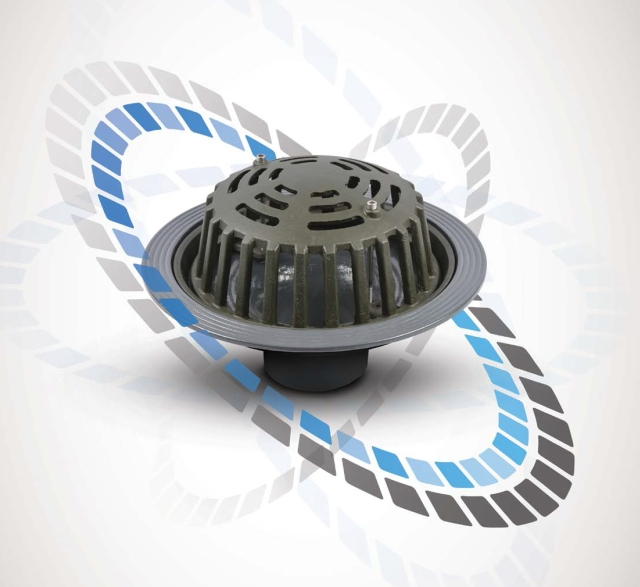

A range of cast iron roof outlets which offer robust long lasting solutions for most construction market applications. Designed in accordance with BS EN 1253 the range consists of cast iron bodies epoxy coated to the high standard of BS EN 877 with the flat gratings protected by sherardizing, clamping rings and raising pieces are black polyester coated. All VortX roof outlets have been flow rate tested and comply fully with the standard and will connect to most drainage systems on the market.

Features:

  • Range consists of cast iron gullies, vertical, horizontal, balcony and two-way parapet.
  • Spigot for connecting to 110 mm pipework.
  • BSP bodies to accommodate smaller diameter pipework and adaptors.
  • Balcony outlets with flat grates or notched gratings to accommodate 50, 75 and 100 mm pipework.
  • Cast iron raising pieces to suit vertical and balcony outlets.

Benefits:

  • Robust – high strength cast iron throughout, bodies clamping rings and gratings.
  • Clamping rings and gratings are treated with a sherardizing zinc coating process for an external anti‑corrosive protection.
  • Cast iron outlets are manufactured from 97% recycled content and are 100% recyclable at the end of their long life.
  • Connects to all pipework materials.
  • Space saving – compact body design.
  • Cast iron outlets compatible with metal water proofing systems.

General information
Features

Range consists of cast iron gullies, vertical, horizontal, balcony and two-way parapet

Spigot for connecting to 110 mm pipework

BSP bodies to accommodate smaller diameter pipework and adaptors

Balcony outlets with flat grates or notched gratings to accommodate 50, 75 and 100 mm pipework

Cast iron raising pieces to suit vertical and balcony outlets

Uniclass 2015 Gravity rainwater outlets (Pr_65_50_35_37)
Specification data
Product Reference

VX-R105

Vertical, 110 mm diameter, 220 mm high.

VX-R155

Vertical, 4 inch (BSP) diameter, 180 mm high.

VX-R100

Vertical, 110 mm diameter, 129 mm high.

VX-R150

Vertical, 4 inch (BSP) diameter, 89 mm high.

VX-R250

88° Horizontal, 4 inch (BSP) with flat grate.

VX-R251

88° Horizontal, 4 inch (BSP) with dome grate.

VX-R255

45° Horizontal, 4 inch (BSP) with flat grate.

VX-R256

45° Horizontal, 4 inch (BSP) with dome grate.

VX-R300

Balcony spigot, flat grating, 110 mm spigot diameter, 100 mm high.

VX-R305 (241187)

Balcony spigot, notched grating, 110 mm spigot diameter, 100 mm pipework diameter.

VX-R305 (241186)

Balcony spigot, notched grating, 110 mm spigot diameter, 70 mm pipework diameter.

VX-R305 (241185)

Balcony spigot, notched grating, 110 mm spigot diameter, 50 mm pipework diameter.

VX-R350

Balcony threaded, flat grating, 4 inch (BSP) spigot, 60 mm high.

VX-R355 (241191)

Balcony threaded, notched grating, 4 inch (BSP) spigot, 100 mm high.

VX-R355 (241190)

Balcony threaded, notched grating, 4 inch (BSP) spigot, 70 mm high.

VX-R355 (241184)

Balcony threaded, notched grating, 4 inch (BSP) spigot, 50 mm high.

VX-R500 (241192)

Two way outlet with angled steel grate, 4 inch BSP threaded.

VX-R501 (241314)

Two way outlet, with flat steel grate 4 inch BSP threaded.

VX-R502 (241315)

Two way outlet, with boxed steel grate 4 inch BSP threaded.

Accessories

Not required

VX-F500 247429 spigot adaptor

160 mm to 6 inch (BSP), Size 160 x 300 x 35 mm.

VX-F500 227131 spigot adaptor

110 mm to 4 inch (BSP), Size: 110 x 215 x 35 mm.

VX-F500 234204 spigot adaptor

80 mm to 3 inch (BSP), Size: 80 x 215 x 27 mm.

VX-F500 234205 spigot adaptor

60 mm to 2 inch (BSP), Size: 60 x 215 x 27 mm.

VX-F500 234206 spigot adaptor

56 mm to 2 inch (BSP), Size: 56 x 215 x 27 mm.

VX-F501 256614 Eccentric spigot adaptors 80mm to 4" (BSP) Size 80 x 300 x 25 mm.

VX-F501 256615 Concentric spigot adaptors 80mm to 4" (BSP) Size 80 x 300 x 25 mm.

VX-F501 256613 Concentric spigot adaptors 60mm to 4" (BSP) Size 60 x 300 x 25 mm.

VX-R510 Two-way downspout.

VX-F510 reducing bushes

For use with VX-F500 234204, 234205 or 234206.

VX-R710, raising piece

For vertical outlet VX-R100/150, 285 mm diameter, 75 mm high.

VX-R720, raising piece

For balcony outlet VX-R300/350, Size: 73 x 134 x 165 mm.

VX-R730 Gravel guard stainless steel to suit vertical / horizontal outlets 155 mm high.

VX-R740 Stainless steel strainer 300 mm high

VX-R740 Stainless steel strainer 200 mm high

VX-R740 Stainless steel strainer 200 mm high

Standard product features

Fire performance to BS EN 13501-1:

The coating performs to A1 classification and therefore London Underground compliant.
