VORTEX 4 ePIV Terminal Valve Assembly

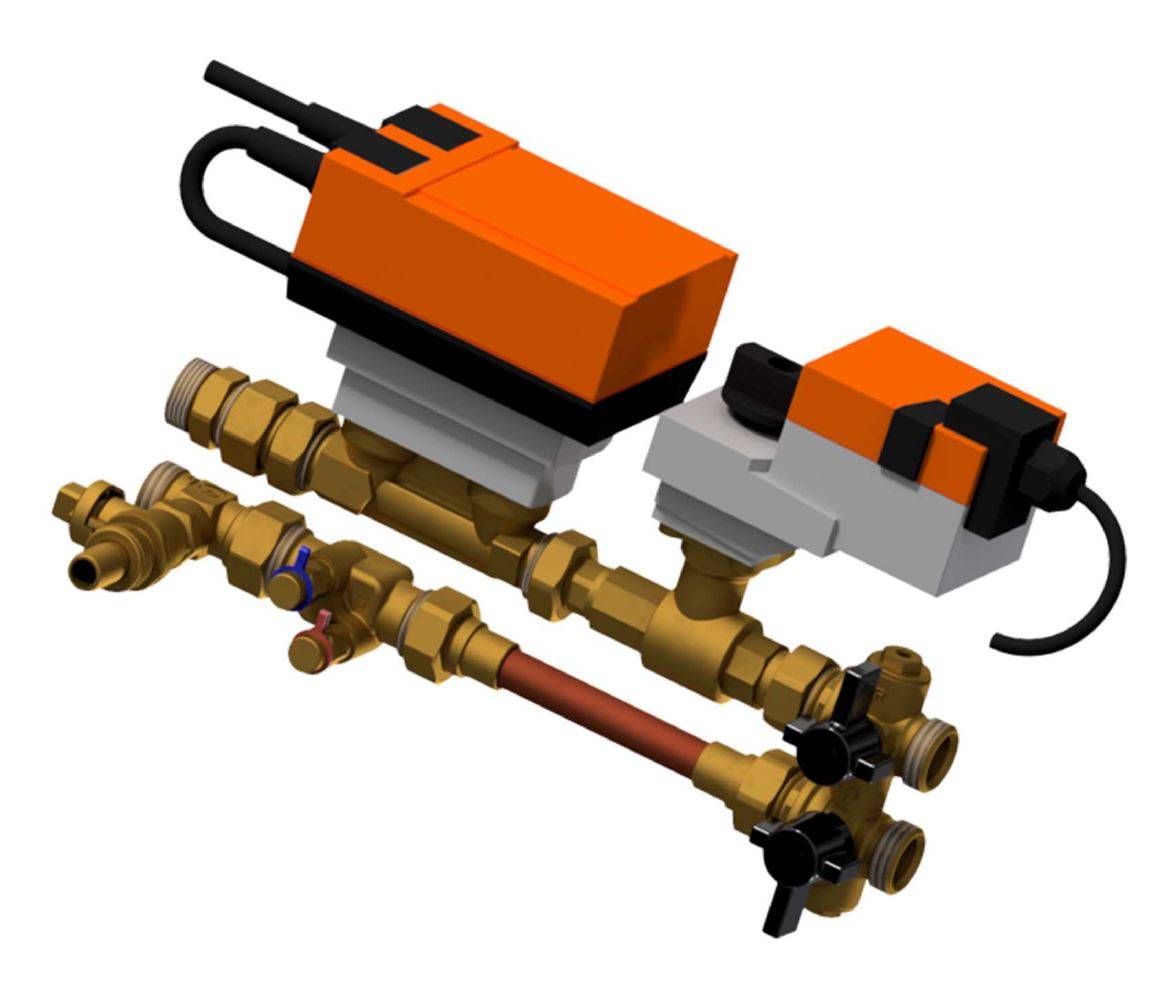

The Vortex 4 range of terminal valve assemblies is designed to include all of the required valves for controlling and maintaining a Fan Coil Unit or other hydronic terminal unit. All of these functions are offered in a compact package that is designed for quick and efficient installation by the terminal unit manufacturer over an extended condensate drip tray.

Function:

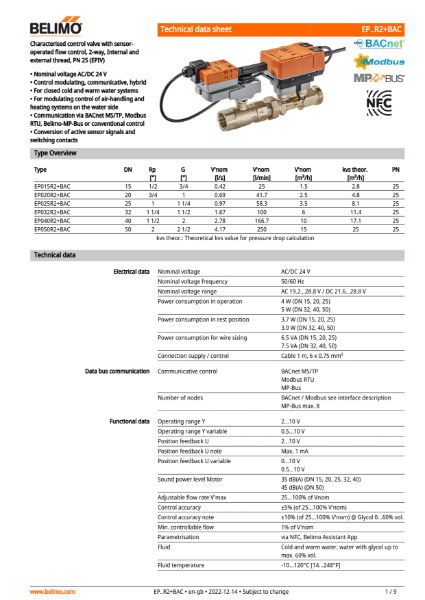

• The Vortex 4 valve sets include an Belimo ePIV control valve to maintain design flow rates and provide modulating temperature control as well as a venturi flow measurement device for flow verification purposes.
• The valve set also includes a flushing bypass which can isolate both the flow and return legs and perform terminal unit flushing and system bypassing operations.
• The blow down valve within the valve set and connected terminal unit may be flushed out of circuit and subsequently forward flushed to flush the coil.

Configuration:

The VX4 valve assembly is offered in three main configurations to suit most terminal/fan coil unit designs and is offered with a wide range of end connections.

• Left and Right-Handed: For terminal/fan coil units where the coil is mounted perpendicularly to the floor plate, then typically left and right-handed units will be required.
• Horizontal: The VX4ER-0 family of valve sets can also be configured horizontally for terminal/fan coil units where the coil is mounted either in parallel orientation to the floor plate or at 45° to the floor plate.
• Additional four Port valves: The VX4ER-0 family of valve sets can also be fitted with additional four port valves should the need arise, please contact Pettinaroli UK for more information.

Strainers:

The 0X4ER-0 series does not include its own integral strainer within the assembly (our 0X4ER-S series does). The manufacturer recommends it may be prudent to consider the installation of a large bore strainer such as a Pettinaroli Filterball be fitted at the beginning of each section branch pipework and at transitions between clean pipework systems (such as copper, press-fit steel and plastic) and black iron pipework.

Please note strainers are intended to help protect the assemblies and terminal/ fan coil units from impurities in the systems media, but this is in no way a substitute for proper media maintenance or cleaning.
