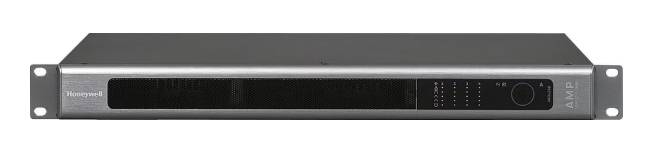

Voice Alarm EN54-16 Amplifier 4 channel 125W with internal EN54-4 Power Supply - 585030 - Amplifier
Verified by manufacturer 3 days ago
EN54-16 Four-channel power amplifier with built in EN54-4 battery charger, each channel support max of 125 Watts
Application
Ideal for high-traffic areas such as Airports, Stadia, Railway stations, Shopping Malls, Theatres, Commercial multi story tower blocks. Essential building usage for emergency guidance and routine communication within buildings with large public gatherings.
Description
Four-channel power amplifier with built in battery charger for VARIODYN ONE. 4XD125B has four independent amplifier channels each with 125 W in class D direct drive technology. Due to the fact that all amplifier channels are completely independent from each other, it is possible to use one channel for back up. This could be for the other three channels or alternatively for other amplifier channels of other amplifiers with the same or lower output power.
Features and benefits:
- Four direct-drive amplifier channels per amplifier.
- Inbuilt power save mode.
- Flexibility to program one channel as a backup channel.
- Futuristic design to ensure great thermal performance and ease of installation.
- Intuitive display interface to ensure you easily understand the device status.
- One of the amplifiers can be used as Hot Standby Back up _ across multiple amplifiers if required
- Inbuilt EN54-4 battery charger.
- EN54-16 Certified.
General information
Color | Grey |
Material | Metal |
Shape | Rectangle |
Length | 400 mm |
Width | 483 mm |
Height | 44 mm |
Uniclass |
SKU Code | 585030 |
Specification data - Voice alarm power amplifiers
Classification data | |
Standard | To BS EN 54-16. |
Amplifier type | High efficiency Class D. |
Rated voltage | 230 V a.c. Guidance for specification option: Rated current @ 230 V a.c.: 1.13 A. |
Output voltage | 100 V. |
Rated power output | 500 W. |
Rated power output (per channel rms) | 4 x 125 W. |
Overall efficiency (minimum) | <80%. |
Frequency response at rated power output | 20 Hz to 22 kHz (±3 dB). |
Connection ports | |
Audio inputs | Manufacturer’s standard. Guidance for specification option: Audio inputs dictated by the Intelligent Network Controller not the amplifier. |
Audio outputs | Manufacturer’s standard. Guidance for specification option: Audio outputs dictated by the Intelligent Network Controller not the amplifier. |
Communications | Manufacturer’s standard. Guidance for specification option: Input terminals from Intelligent Network Controller. |
Controls | |
Features | Amplifier channel output level configurable between a minimum and maximum value. |
Display type | Display interface. |
Display the following conditions | Channel indicators. Guidance for specification option:
|
Battery charger | |
Standard | To BS EN 54-4 |
Operation | Integral battery charger. |
Enclosure | |
Material | Metal. |
Finish | Powder-coated. |
Colour | Grey. |
Environmental requirements | Ambient temperature -5 to 55 °C. Storage temperature -10 to 55 °C. Air humidity <93% (non-condensing). |
Mounting method | Rack. |
Dimensions | 483 x 44 x 400 mm. Manufacturer guidanceWidth x height x depth. |
Weight | 9.5 kg. |
Accessories | Not required. Eight channel amplifier output cable - 585301. Four channel amplifier output cable - 585302. Two channel amplifier output cable - 585303. One channel amplifier output cable - 585304. Amplifier backup cable, one channel, 0.5 m - 585305. Amplifier backup cable, two channel - 585306. Amplifier backup cable, four channel - 585307. Amplifier backup cable, one channel, 2 m - 585305.01. Cable set for connecting batteries 4XDB - 583413. Cat5 patch cable, 0.5 m (green) - 583491A. |
Sustainability data
Material | Metal |
Literature
Literature type

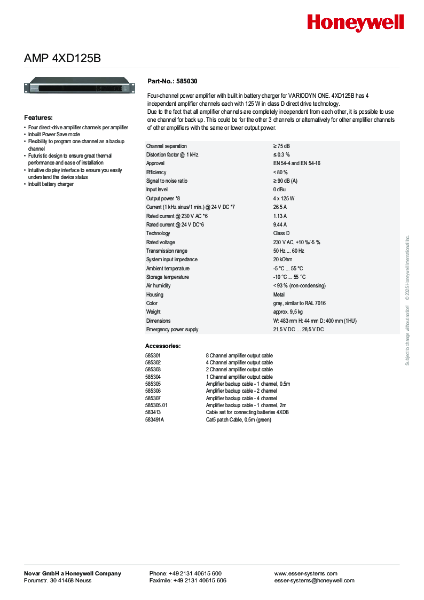

Product Sheet - Amplifier AMP 4XD125B - 585030
585030 4 Channel X 125Watt Amplifier Declaration of Performance
585030 4 x 125 Watt Amplifier EN54-16

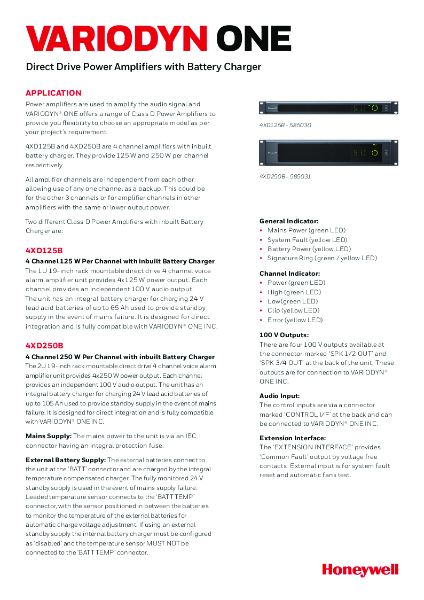

VARIODYN ONE - EN54 Certified Voice Alarm Systems Brochure
VARIODYN D1 + Comprio + VARIODYN ONE-EU Declaration of Conformity
