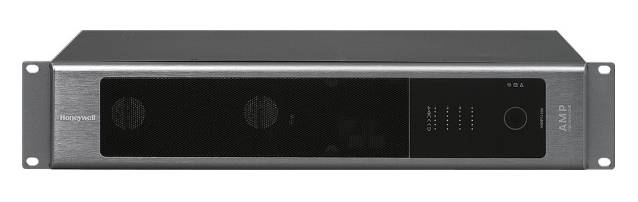

Voice Alarm EN54-16 Amplifier 4 channel 1200W Power Sharing Amplifier (Max 500 Watts per channel) - 585033 - Amplifier
Verified by manufacturer 3 days ago
Four-channel power amplifier with power sharing technology, 1200 Watts (500 Watts max per channel). EN54-16 certified
Application
Ideal for high-traffic areas such as Airports, Stadia, Railway stations, Shopping Malls, Theatres, Commercial multi story tower blocks. Essential building usage for emergency guidance and routine communication within buildings with large public gatherings.
Description
4XDPS1200 is a four channel amplifier with power sharing technology with 500 W of maximum power per channel and total power of 1200 W.
Features and benefits:
- Four direct-drive amplifier channels per amplifier.
- Inbuilt power save mode.
- Flexibility to program one channel as a backup channel.
- Futuristic design to ensure great thermal performance and ease of installation.
- Intuitive display interface to ensure you easily understand the device status.
- Power sharing technology.
- EN54-16 Certified
General information
Color | Grey |
Material | Metal |
Shape | Rectangle |
Length | 401 mm |
Width | 483 mm |
Height | 88 mm |
Uniclass | |
CAWS | W53/115 Emergency voice communication systems |
SKU Code | 585033 |
Specification data - Voice alarm power amplifiers
Classification data | |
Standard | To BS EN 54-16. |
Amplifier type | High efficiency Class D. |
Rated voltage | 230 V a.c. Guidance for specification option:
|
Output voltage | 100 V. |
Rated power output | 1200 W. |
Rated power output (per channel rms) | 1 x 500 W. Guidance for specification option: Maximum 500 W per channel, 1200 W total power across all four channels. |
Overall efficiency (minimum) | <80%. |
Frequency response at rated power output | 20 Hz <-1.0 dB; 22 kHz <- 2.0 dB. |
Connection ports | |
Audio inputs | Manufacturer’s standard. Manufacturer guidanceAudio inputs dictated by the Intelligent Network Controller not the amplifier. |
Audio outputs | Manufacturer’s standard. Manufacturer guidanceAudio outputs dictated by the Intelligent Network Controller not the amplifier. |
Communications | Manufacturer’s standard. Manufacturer guidanceInput terminals from Intelligent Network Controller. |
Controls | |
Features | Four channel amplifier with power sharing technology. |
Display type | Display interface. |
Display the following conditions | Channel indicators. Guidance for specification option:
|
Battery charger | |
Standard | Manufacturer guidance24 V d.c. battery back up from an external EN 54-4 power supply. |
Enclosure | |
Material | Metal. |
Finish | Powder-coated. |
Colour | Grey. |
Environmental requirements | Ambient temperature -5 to 55 °C. Storage temperature -10 to 55 °C. Air humidity <93% (non-condensing). |
Mounting method | Rack. |
Power supply | 24 V d.c. Manufacturer guidanceEmergency power supply. |
Dimensions | 483 x 88 x 401 mm. Manufacturer guidanceWidth x height x depth. |
Weight | 11.5 kg. |
Accessories | Not required. Eight channel amplifier output cable - 585301. Four channel amplifier output cable - 585302. Two channel amplifier output cable - 585303. One channel amplifier output cable - 585304. Amplifier backup cable, one channel, 0.5 m - 585305. Amplifier backup cable, two channel - 585306. Amplifier backup cable, four channel - 585307. Amplifier backup cable, one channel, 2 m - 585305.01. Cable set for connecting batteries 4XDB - 583413. Cat5 patch cable, 0.5 m (green) - 583491A. |
Sustainability data
Material | Metal |
Literature
Literature type

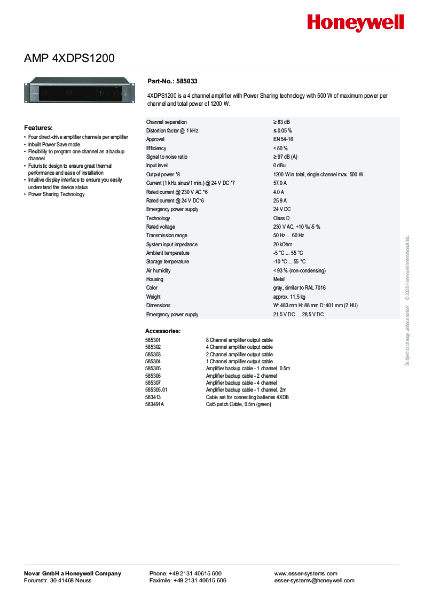

Product Sheet - Amplifier AMP 4XDPS1200 - 585033
585033 4 channel 1200Watt Power Sharing Amplifier EN54-16 Declaration of Performance
585033 4 Channel 1200Watt Power Sharing Amplifier EN54-16

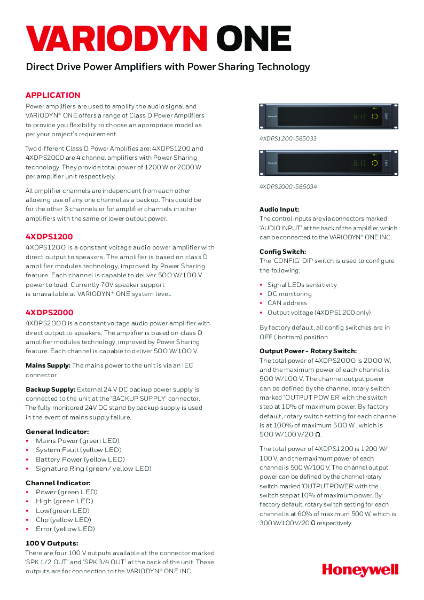

VARIODYN ONE - EN54 Certified Voice Alarm Systems Brochure
VARIODYN D1 + Comprio + VARIODYN ONE-EU Declaration of Conformity
