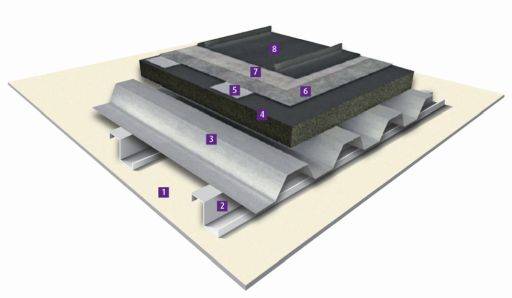

Compact Roof.
VMZ Standing Seam is a ventilated cladding system that can be used for both renovation and new build. As the name implies, the system consists of seams that can be crimped in a single or double lock (for greater flatness single lock seams sometimes referred to as angle seams are recommended). The system has a traditional look with the seams being 25 mm high. The trays can be installed horizontally, vertically and at an angle.
The facade system offers the possibility to clad all types of walls: flat, curved or complex forms. Another advantage of this zinc facade system is that it can be used on both walls and roofs, thus allowing roof and wall to blend as one (standing seam roofs require double lock seams, and is specified separately). The cladding panels can be various sizes - it is recommended that they be no more than 4000 mm in length and 430 mm in width; consult manufacturer for details. All aspects of VMZINC can be used with 0.8 mm being the recommended thickness for facades.
Features and benefits:
Finish | ANTHRA-ZINCAZENGARNATURAL-ZINCPIGMENTO BLUE-ZINCPIGMENTO BROWN-ZINCPIGMENTO GREEN-ZINCPIGMENTO GREY-ZINCPIGMENTO RED-ZINCQUARTZ-ZINC |
Features | Ideal for buildings with high humidity levels (including class 5, swimming pools); BBA certified; Almost no thermal bridges; Excellent pull-out resistance |
Uniclass 2015 |
Product Reference | VMZ Standing Seam Cladding System |
Type | Standing seamSingle lock standing seamRecommended for vertical cladding. |
Width | 500 mm430 mm c/c, recommended for facades. 600 mm530 mm c/c. |
Length | Insert requirements; maximum 4000 mm. |
Zinc thickness | 0.7–0.8 mm; insert requirements. 0.8 mm recommended for facades. |
Finish | ANTHRA-ZINCAZENGARNATURAL-ZINCPIGMENTO BLUE-ZINCPIGMENTO BROWN-ZINCPIGMENTO GREEN-ZINCPIGMENTO GREY-ZINCPIGMENTO RED-ZINCQUARTZ-ZINC |
Standard product features | Zinc thickness: 0.7–0.8 mm (0.8 mm recommended for facades). |
Product Options | Finish: - ANTHRA-ZINC:
Due to the dark colour of ANTHRA-ZINC it should be carefully considered before using on non-rinsed surfaces such as protected facades and soffits. - AZENGAR:
- NATURAL-ZINC:
- PIGMENTO all colours):
- QUARTZ-ZINC:
|
Platform | Compatible | Version | Certified to |
---|---|---|---|
![]() | Revit 2016 | 2 | 2.0 |
![]() | IFC2X3 | 1 | 1.3 |
