Visual Code - Carpet Tile

Description

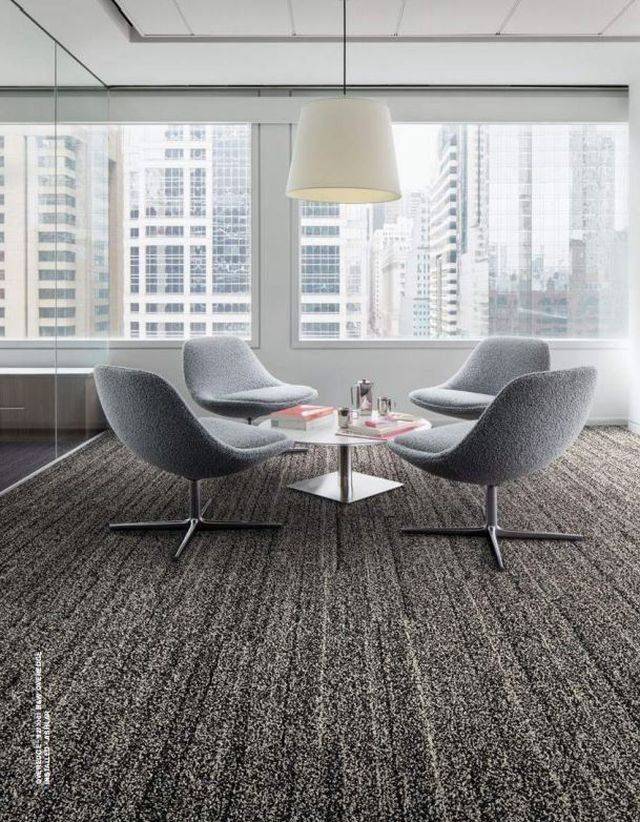

A carpet tile collection of ten different patterns inspired by the symbiotic relationship of hi-tech and hi-touch, marrying glitch graphics and technicolour circuitry with simple textures that recall plain woven fabrics and rugs.

Features:

  • Many colourways available.
  • Émissions dans l'air intérieur A+ rating.
  • CE marked to BS EN 1307.
  • Compatible with TacTiles™ glue-free installation system.

General information

Features

Many colourways available

Émissions dans l'air intérieur A+ rating

CE marked to BS EN 1307

Compatible with TacTiles™ glue-free installation system

Material

100% recycled solution dyed nylon

Size

250 x 1000 mm

Uniclass 2015

Pr_35_57_11_62 Pile carpet tilesPrimary

CAWS

M50/130 Carpet tiling

M50/15 Carpet tiling

Specification data - Pile carpet tiles

Product Reference

Circuit Board

8.2 mm thick.

Darning

7.3 mm thick.

Decibel

7.8 mm thick.

Haptic

7.7 mm thick.

Hard Drive

8 mm thick.

Overedge

12.2 mm thick.

Plain Stitch

5.9 mm thick.

Static Lines

7.9 mm thick.

Stitch Count

8.4 mm thick.

Stitchery

6 mm thick.

Colour

Insert requirement from 'Options' below.

Standard product features

Type:

  • Hard Drive, Plain Stitch and Stitchery: Tufted patterned level loop pile tile.
  • Circuit Board, Darning, Decibel, Haptic and Static Lines: Tapestry tufted patterned structured loop pile tile.
  • Overedge: Tufted patterned shag cut tile.
  • Stitch Count: Tufted patterned structured tip sheared pile tile.

Material:

100% recycled solution dyed nylon.

Size:

250 x 1000 mm.

Thickness:

  • Pile height: Circuit Board: 3.6 mm (+15%/ -10%); Darning: 3.3 mm (+15%/ -10%); Decibel: 3.2 mm (+15%/ -10%); Haptic: 2.9 mm (+15%/ -10%); Hard Drive: 3.1 mm (+15%/ -10%); Overedge: 8.9 mm (+15%/ -10%); Plain Stitch: 2.7 mm (+15%/ -10%); Static Lines: 3 mm (+15%/ -10%); Stitch Count: 5.1 mm (+15%/ -10%); Stitchery: 2.6 mm (+15%/ -10%).
  • Total: Circuit Board: 8.2 mm (±0.5 mm); Darning: 7.3 mm (±0.5 mm); Decibel: 7.8 mm (+15%/ -10%); Haptic: 7.7 mm (±0.5 mm); Hard Drive: 8 mm (±0.5 mm); Overedge: 12.2 mm (±0.5 mm); Plain Stitch: 5.9 mm (±0.5 mm); Static Lines: 5.9 mm (±0.5 mm); Stitch Count: 8.4 mm (±0.5 mm); Stitchery: 6 mm (±0.5 mm).

Weight:

  • Pile yarn: Circuit Board: 780 g/m² (±5%); Darning and Decibel: 746 g/m² (±5%); Haptic: 814 g/m² (±5%); Hard Drive: 814 g/m² (±5%); Overedge: 1424 g/m² (±5%); Plain Stitch and Stitchery: 576 g/m² (±5%); Static Lines: 848 g/m² (±5%); Stitch Count: 915 g/m² (±5%).
  • Total: Circuit Board: 4523 g/m² (±5%); Darning: 4451 g/m² (±5%); Decibel: 4396 g/m² (±5%); Haptic: 4498 g/m² (±5%); Hard Drive: 4556 g/m² (±5%); Overedge: 5020 g/m² (±5%); Plain Stitch: 4152 g/m² (±5%); Static Lines: 4557 g/m² (±5%); Stitch Count: 4326 g/m² (±5%); Stitchery: 4177 g/m² (±5%).

Backing:

Graphlex®.

Method of laying:

Ashlar or herringbone.

Technical properties:

- Circuit Board:

  • Tufts per m²: 137 031 (±5%).
  • Wear classification (to BS EN 1307): Class 33/ LC2 Heavy Contract.
  • Gauge/ ends 10 cm: 1/10 – 39.4.
  • Radiant panel (to BS EN ISO 9239-1): Euroclass Cfl-s1 (to BS EN 13501-1).
  • Dimensional stability (to BS EN 986): ≤0.2%.
  • Impact sound insulation ΔLw (to BS EN ISO 10140-3): 26 dB.
  • Sound absorption rating (αw, to BS EN ISO 11654): 0.2.
  • Sound absorption coefficient (to BS EN ISO 354): 125 Hz: 0.02; 250 Hz: 0.04; 500 Hz: 0.09; 1000 Hz: 0.29; 2000 Hz: 0.34; 4000 Hz: 0.52.
  • Castor chair rating (to BS EN 985): ≥2.4.
  • Colour fastness - Light (to ISO 105/B02): 7.

- Darning:

  • Tufts per m²: 137 942 (±5%).
  • Wear classification (to BS EN 1307): Class 33/ LC2 Heavy Contract.
  • Gauge/ ends 10 cm: 1/10 – 39.4.
  • Radiant panel (to BS EN ISO 9239-1): Euroclass Cfl-s1 (to BS EN 13501-1).
  • Dimensional stability (to BS EN 986): ≤0.2%.
  • Impact sound insulation ΔLw (to BS EN ISO 10140-3): 26 dB.
  • Sound absorption rating (αw, to BS EN ISO 11654): 0.2.
  • Sound absorption coefficient (to BS EN ISO 354): 125 Hz: 0.02; 250 Hz: 0.04; 500 Hz: 0.09; 1000 Hz: 0.29; 2000 Hz: 0.34; 4000 Hz: 0.52.
  • Castor chair rating (to BS EN 985): ≥2.4.
  • Colour fastness - Light (to ISO 105/B02): 7.

- Decibel:

  • Tufts per m²: 143 908 (±5%).
  • Wear classification (to BS EN 1307): Class 33/ LC1 Heavy Contract.
  • Gauge/ ends 10 cm: 1/10 – 39.4.
  • Radiant panel (to BS EN ISO 9239-1): Euroclass Cfl-s1 (to BS EN 13501-1).
  • Dimensional stability (to BS EN 986): ≤0.2%.
  • Impact sound insulation ΔLw (to BS EN ISO 10140-3): 26 dB.
  • Sound absorption rating (αw, to BS EN ISO 11654): 0.2.
  • Sound absorption coefficient (to BS EN ISO 354): 125 Hz: 0.02; 250 Hz: 0.04; 500 Hz: 0.09; 1000 Hz: 0.29; 2000 Hz: 0.34; 4000 Hz: 0.52.
  • Castor chair rating (to BS EN 985): ≥2.4.
  • Colour fastness - Light (to ISO 105/B02): 7.

- Haptic:

  • Tufts per m²: 138 306 (±5%).
  • Wear classification (to BS EN 1307): Class 33/ LC2 Heavy Contract.
  • Gauge/ ends 10 cm: 1/10 – 39.4.
  • Radiant panel (to BS EN ISO 9239-1): Euroclass Cfl-s1 (to BS EN 13501-1).
  • Dimensional stability (to BS EN 986): ≤0.2%.
  • Impact sound insulation ΔLw (to BS EN ISO 10140-3): 26 dB.
  • Sound absorption rating (αw, to BS EN ISO 11654): 0.2.
  • Sound absorption coefficient (to BS EN ISO 354): 125 Hz: 0.02; 250 Hz: 0.04; 500 Hz: 0.09; 1000 Hz: 0.29; 2000 Hz: 0.34; 4000 Hz: 0.52.
  • Castor chair rating (to BS EN 985): ≥2.4.
  • Colour fastness - Light (to ISO 105/B02): 7.

- Hard Drive:

  • Tufts per m²: 170 300 (±5%).
  • Wear classification (to BS EN 1307): Class 33/ LC1 Heavy Contract.
  • Gauge/ ends 10 cm: 1/10 – 39.4.
  • Radiant panel (to BS EN ISO 9239-1): Euroclass Cfl-s1 (to BS EN 13501-1).
  • Dimensional stability (to BS EN 986): ≤0.2%.
  • Impact sound insulation ΔLw (to BS EN ISO 10140-3): 24 dB.
  • Sound absorption rating (αw, to BS EN ISO 11654): 0.15.
  • Sound absorption coefficient (to BS EN ISO 354): 125 Hz: 0.02; 250 Hz: 0.02; 500 Hz: 0.06; 1000 Hz: 0.13; 2000 Hz: 0.28; 4000 Hz: 0.32.
  • Castor chair rating (to BS EN 985): ≥2.4.
  • Colour fastness - Light (to ISO 105/B02): 7.

- Overedge:

  • Tufts per m²: 88 200 (±5%).
  • Wear classification (to BS EN 1307): Class 32/ LC5 Heavy Contract.
  • Gauge/ ends 10 cm: 5/32 – 25.2.
  • Radiant panel (to BS EN ISO 9239-1): Euroclass Cfl-s1 (to BS EN 13501-1).
  • Dimensional stability (to BS EN 986): ≤0.2%.
  • Impact sound insulation ΔLw (to BS EN ISO 10140-3): 30 dB.
  • Sound absorption rating (αw, to BS EN ISO 11654): 0.2.
  • Sound absorption coefficient (to BS EN ISO 354): 125 Hz: 0.02; 250 Hz: 0.06; 500 Hz: 0.11; 1000 Hz: 0.27; 2000 Hz: 0.41; 4000 Hz: 0.51.
  • Castor chair rating (to BS EN 985): ≥2.4.
  • Colour fastness - Light (to ISO 105/B02): 7.

- Plain Stitch:

  • Tufts per m²: 142 539 (±5%).
  • Wear classification (to BS EN 1307): Class 33/ LC2 Heavy Contract.
  • Gauge/ ends 10 cm: 1/10 – 39.4.
  • Radiant panel (to BS EN ISO 9239-1): Euroclass Cfl-s1 (to BS EN 13501-1).
  • Dimensional stability (to BS EN 986): ≤0.2%.
  • Impact sound insulation ΔLw (to BS EN ISO 10140-3): 26 dB.
  • Sound absorption rating (αw, to BS EN ISO 11654): 0.2.
  • Sound absorption coefficient (to BS EN ISO 354): 125 Hz: 0.02; 250 Hz: 0.04; 500 Hz: 0.09; 1000 Hz: 0.29; 2000 Hz: 0.34; 4000 Hz: 0.52.
  • Castor chair rating (to BS EN 985): ≥2.4.
  • Colour fastness - Light (to ISO 105/B02): 7.

- Static Lines:

  • Tufts per m²: 141 879 (±5%).
  • Wear classification (to BS EN 1307): Class 33/ LC2 Heavy Contract.
  • Gauge/ ends 10 cm: 1/10 – 39.4.
  • Radiant panel (to BS EN ISO 9239-1): Euroclass Cfl-s1 (to BS EN 13501-1).
  • Dimensional stability (to BS EN 986): ≤0.2%.
  • Impact sound insulation ΔLw (to BS EN ISO 10140-3): 26 dB.
  • Sound absorption rating (αw, to BS EN ISO 11654): 0.2.
  • Sound absorption coefficient (to BS EN ISO 354): 125 Hz: 0.02; 250 Hz: 0.04; 500 Hz: 0.09; 1000 Hz: 0.29; 2000 Hz: 0.34; 4000 Hz: 0.52.
  • Castor chair rating (to BS EN 985): ≥2.4.
  • Colour fastness - Light (to ISO 105/B02): 7.

- Stitch Count:

  • Tufts per m²: 190 574 (±5%).
  • Wear classification (to BS EN 1307): Class 33/ LC3 Heavy Contract.
  • Gauge/ ends 10 cm: 1/10 – 39.4.
  • Radiant panel (to BS EN ISO 9239-1): Euroclass Cfl-s1 (to BS EN 13501-1).
  • Dimensional stability (to BS EN 986): ≤0.2%.
  • Impact sound insulation ΔLw (to BS EN ISO 10140-3): 27 dB.
  • Sound absorption rating (αw, to BS EN ISO 11654): 0.2.
  • Sound absorption coefficient (to BS EN ISO 354): 125 Hz: 0.0; 250 Hz: 0.06; 500 Hz: 0.12; 1000 Hz: 0.29; 2000 Hz: 0.38; 4000 Hz: 0.51.
  • Castor chair rating (to BS EN 985): ≥2.4.
  • Colour fastness - Light (to ISO 105/B02): 7.

- Stitchery:

  • Tufts per m²: 174 355 (±5%).
  • Wear classification (to BS EN 1307): Class 33/ LC1 Heavy Contract.
  • Gauge/ ends 10 cm: 1/10 – 39.4.
  • Radiant panel (to BS EN ISO 9239-1): Euroclass Cfl-s1 (to BS EN 13501-1).
  • Dimensional stability (to BS EN 986): ≤0.2%.
  • Impact sound insulation ΔLw (to BS EN ISO 10140-3): 24 dB.
  • Sound absorption rating (αw, to BS EN ISO 11654): 0.15.
  • Sound absorption coefficient (to BS EN ISO 354): 125 Hz: 0.02; 250 Hz: 0.02; 500 Hz: 0.06; 1000 Hz: 0.13; 2000 Hz: 0.28; 4000 Hz: 0.32.
  • Castor chair rating (to BS EN 985): ≥2.4.
  • Colour fastness - Light (to ISO 105/B02): 7.

Product Options

Colour:

- Circuit Board:

9280001 Orange circuit, 9280002 Yellow circuit, 9280003 Green circuit, 9280004 Teal circuit, 9280005 Blue circuit, 9280006 Purple circuit, 9280007 Magenta circuit, 9280008 Red circuit.

- Darning:

9273001 B&W Darning.

- Decibel:

9275001 B&W Decibel.

- Haptic:

9274001 B&W Haptic.

- Hard Drive:

9277001 Steel HD, 9277002 Pewter HD, 9277003 Lead HD, 9277004 Granite.

- Overedge:

9271001 B&W Overedge.

- Plain Stitch:

9278001 Nickel plain, 9278002 Iron plain, 9278003 Grey plain, 9278004 Graphite plain, 9278005 Flint plain, 9278006 Charcoal plain, 9278007 Slate plain, 9278008 Black plain.

- Static Lines:

9276001 Steel static, 9276002 Pewter static, 9276003 Lead static, 9276004 Granite static.

- Stitch Count:

9279001 Nickel count, 9279002 Iron count, 9279003 Grey count, 9279004 Graphite count, 9279005 Flint count, 9279006 Charcoal count, 9279007 Slate count, 9279008 Black count.

- Stitchery:

9281001 Nickel stitchery, 9281002 Iron stitchery, 9281003 Grey stitchery, 9281004 Graphite stitchery, 9281005 Flint stitchery, 9281006 Charcoal stitchery, 9281007 Slate stitchery, 9281008 Black stitchery.
