Visqueen V20 Floor Membrane

Verified by manufacturer 5 months ago

Visqueen Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • DoP

    DoP

    Certificate type

Cavity drain floor membrane.

Jump to:
BIM object icon
+44 (0) 333 202 6800 Website

Application

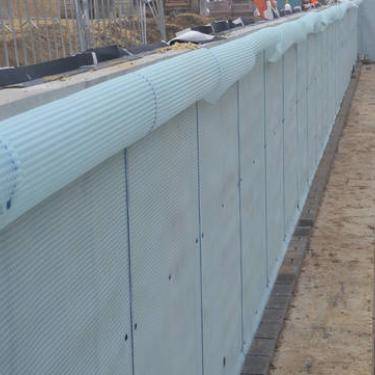

Typically used for internally tanking basements, sub structures and retaining walls within new, existing and retrofit build projects.

Description

1mm thick high-density polyethylene (PE-HD) profiled sheet with approximate 20 mm high studs.


Features and benefits:

  • The membrane is supplied in large roll formats: 2 x 20m.
  • Prime PE-HD - robust studded floor membrane.
  • Suitable for new, existing and retrofit build projects.
  • Large roll formats with flanged edges for jointing - quick and easy to install.
  • BBA certified - third party certification.
  • Type C membrane (drained protection) - part of a cavity drainage system in accordance with BS 8102:2022
  • Sealed system that meets the requirements for radon protection.

General information

Finish

Smooth

Material

High density polyethylene (HDPE)

Shape

Rectangle

Length

20000 mm

Width

2000 mm

Height

20 mm

Warranty description

See manufacturer's insurance document for warranty details. Consult manufacturer for further information.

Uniclass

Pr_25_57_51_74 Rubber studded sheetsPrimary

CAWS

J40/290 High-density polyethylene/ polypropylene studded cavity drain membrane

J40/47 High-density polyethylene/ polypropylene studded cavity drain membrane

Specification data - Rubber studded sheets

Standard

CE Mark EN 13967.

Material

-

Studded layer

High-density polyethylene (PE-HD).

Third-party certification

British Board of Agrément Certificate.

Stud height

20 mm.

Sheet thickness

1 mm.

Weight (minimum)

0.95 kg/m².

Colour

Black.

Performance characteristics

-

Fire performance

To BS EN 13501-1: Class F.

Product Reference

Visqueen V20 Floor Membrane

Accessories

None.

CD Corner Strip.

CD Double Sided Sealing Tape.

CD Sealing Rope.

Masonry Plugs.

Resistance to static loading - 20kg load

20 kg.

Drainage capacity

13 l/m².

CompressiveStrength

200 kN/².

Application temperature

Recommended should be used above 5°C.

Sustainability data

Country of material origin

Norway

Recyclability

HDPE recycling code 2.

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

BBA Certificate Visqueen V20 FLoor Membrane

DoP

DoP

Tanking CE Visqueen V20 Floor Membrane Declaration of Performance

DoP

DoP

Tanking UKCA Visqueen V20 Floor Membrane Declaration of Performance
