Visqueen Urban Drainage Geomembrane (UDG)
Verified by manufacturer 4 months ago
Impervious membrane.
Application
- Suitable for a variety of geomembrane applications including the wrapping of underground storm water attenuation crates in light duty situations.
- Can be used as an imperviable membrane placed on top of the subgrade formation level and to the sides of the sub-base within a permeable paving system.
Description

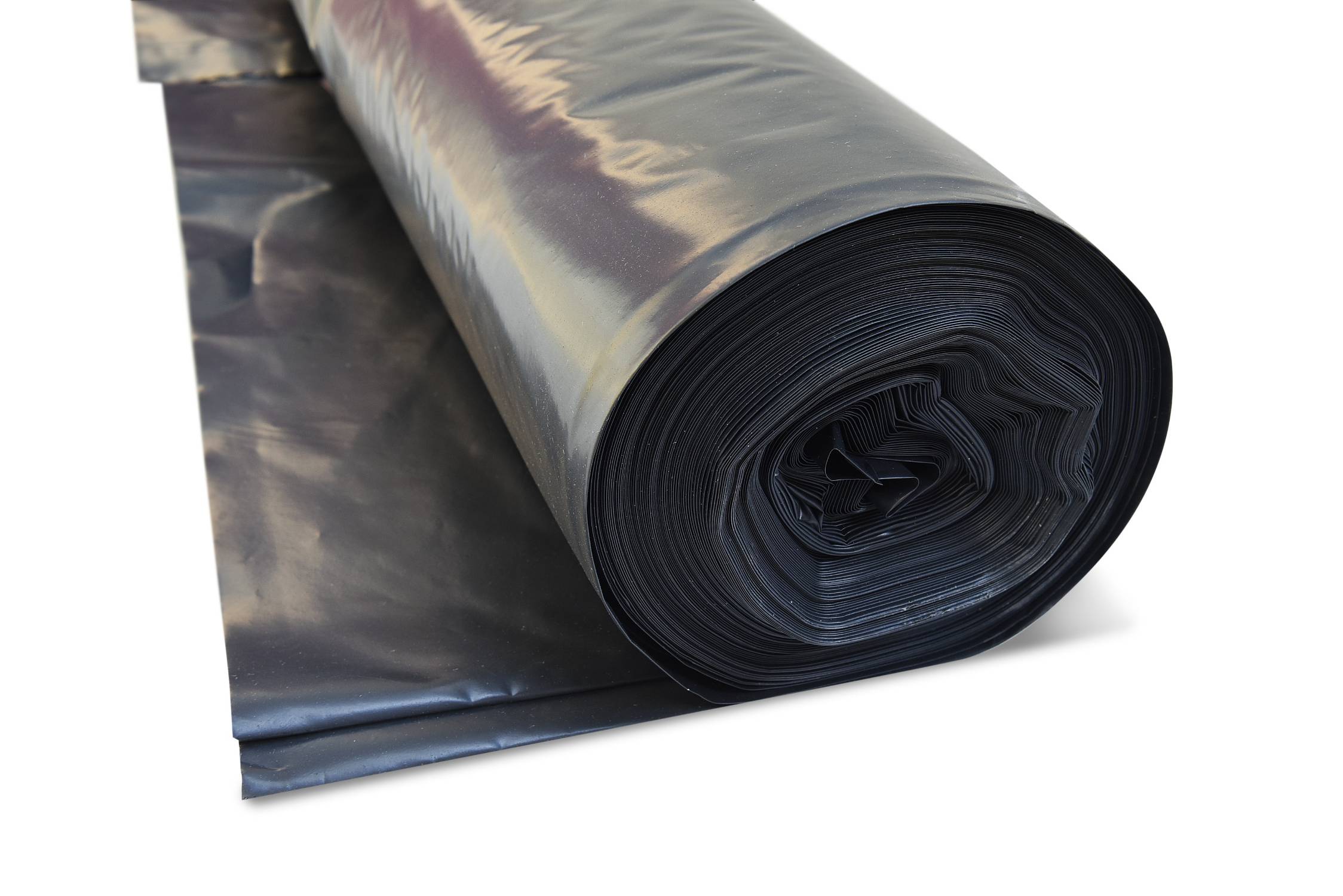

A recycled polyethylene geomembrane, black in colour, 0.5 mm thick and supplied in multi folded rolls 4 x 12.5 m.
Features and benefits:
- Multi-functional geomembrane - used in storm water attenuation systems and as an impermeable membrane in permeable paving systems.
- Easy to detail and install on site.
- Manufactured under a Quality Management System approved to ISO 9001: 2015; Environmental Management System 14001:2015 and Occupational Health and Safety System ISO 45001:2018.
General information
Color | Black |
Finish | Smooth |
Material | Polyethylene |
Shape | Rectangle |
Length | 12500 mm |
Width | 4000 mm |
Warranty description | Guidance for specification option: See manufacturer's insurance document for warranty details. Consult manufacturer for further information. |
Uniclass | |
CAWS | J40/120 Loose-laid plastics or rubber sheet damp-proofing J40/20 Loose-laid plastics or rubber sheet damp-proofing |
Specification data - Plastics sheets
Material | Low-density polyethylene (PE-LD). |
Purpose | Drainage layer. |
Performance characteristics | |
Tensile strength (minimum) | 15 N/mm². |
Elongation to break | 400%. |
Physical properties | |
Colour | Black. |
Dimensions | |
Thickness (minimum) | 0.5 mm. |
Width (minimum) | 4 m. |
Roll length (minimum) | 12.5 m. |
Recycled content | 90%. |
Product Reference | Visqueen Urban Drainage Geomembrane (UDG) |

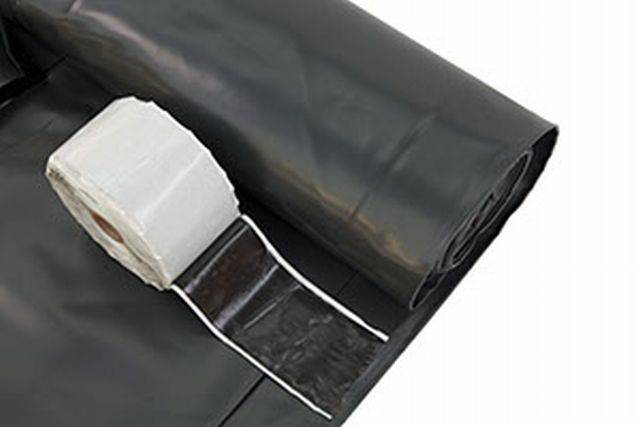

Accessories | Corner protection units. GX Jointing Tape. PFU Top Hat. UDG Jointing Tape. UDG Protection Board. |
Application temperature | Guidance for specification option: Recommended should not be used below 5°C. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Polyethylene |
Recyclability | 100% Guidance for specification option: LDPE recycling code 4. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2015 | 5 |
 IFC | IFC2X3 | 5 |
Literature
Visqueen Product Guide 2022
