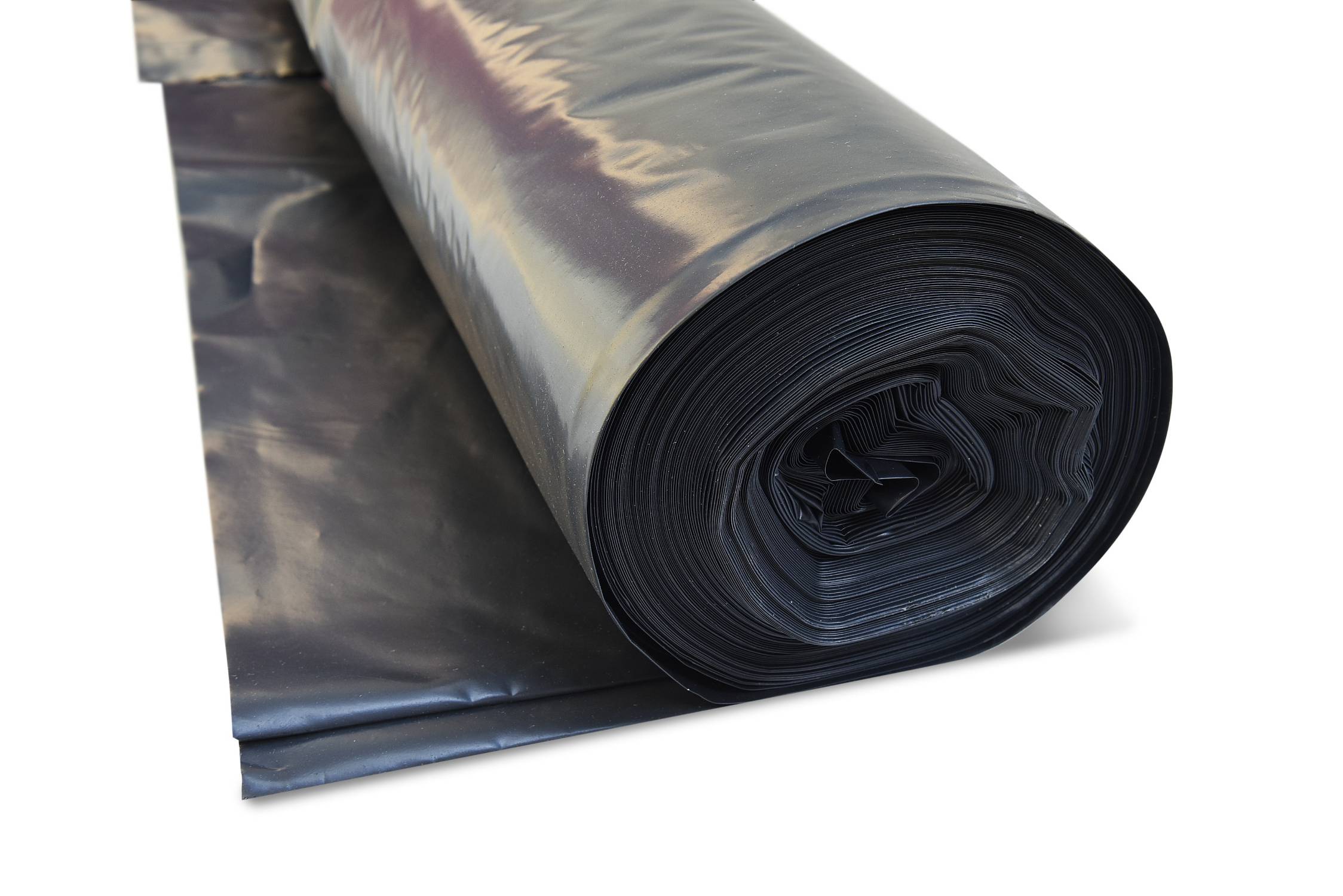

Visqueen High Performance Urban Drainage Geomembrane

Application

Suitable for underground stormwater storage systems and also for permeable paving systems.

Description

A UK manufactured membrane using high performance polymers, suitable for underground stormwater storage systems and also for permeable paving systems.


Features and benefits:

  • It can be supplied as either a taped system to be fabricated on site or partially fabricated as factory welded panels.
  • For installation, test results and system components please refer to manufacturer's datasheet.
  • High resistance to puncture.
  • Restricts water entering the sub-grade.
  • Preserves sub-grade structural integrity.
  • Installed with tape bonded or welded joints.
  • Manufactured in the UK.
  • Wide temperature welding range, excellent flexibility in cold weather conditions.
  • Visqueen's products are manufactured under a Quality Management System approved to ISO 9001: 2008; Environmental System 14001:2004 and BS OHSAS 18001:2007.

General information

Finish

Crate

Color

Black

Material

Polypropylene

Shape

Rectangular

Size

4000 x 12 500 mm

Uniclass 2015

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

J40/120 Loose laid plastics or rubber sheet damp proofing

J40/20 Loose laid plastics or rubber sheet damp proofing

Specification data - Plastics sheets Enhanced data

Material

Polypropylene.

Standard

To ISO 9001: 2008; Environmental System 14001:2004 and BS OHSAS 18001:2007.

Physical properties

-

Colour

Black.

Dimensions

-

Thickness (minimum)

500 µm.

(2000 gauge).

Width (minimum)

4 m.

Roll length (minimum)

12.5 m.

Product Reference

Visqueen Urban Drainage Geomembrane (UDG)

Welding

In factory.

For larger attenuation schemes. Refer to manufacturer recommendations.

On-site jointed.

Accessories

Corner protection units.

GX Jointing Tape.

PFU Top Hat.

UDG Jointing Tape.

UDG Protection Board.

Environmental information

Country of product manufacture

United Kingdom

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

3

1.3
Revit

Revit 2015

4

1.3
Download now from NBS National BIM Library
