Visqueen Axiom Guard PRO - Liquid-Applied Waterproofing Membrane

Verified by manufacturer 4 months ago

Visqueen Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

High performance, one-part polyurethane liquid-applied membrane for podium decks, retaining and lift pit walls and balconies.

Jump to:
BOS
+44 (0) 333 202 6800 Website

Application

Suitable for waterproofing below ground substructures including:

  • Podium decks.
  • Retaining walls.
  • Lift pit walls.


Can be applied to a variety of substrates in both vertical and horizontal applications, including:

  • Cast concrete.
  • Precast concrete.
  • Flush pointed blockwork.
  • Flush pointed brickwork.
  • Steelwork.


Can be used to achieve one form of waterproofing to Grades 1, 2 and 3 as defined in BS 8102: 2022. The product is also suitable for damp proofing applications including concrete floors, flush pointed masonry walls and wet rooms.


When used in conjunction with Visqueen Axiom Guard PRO Topcoat, Visqueen Axiom Guard PRO is suitable for waterproofing balconies, terraces, walkways, bund walls, and some flat roofing applications.

Description

A high performance, one-part polyurethane liquid-applied membrane.


Features and benefits:

  • BBA certified - third party accreditation.
  • Type A Barrier Membrane - resistant to ground water in accordance with BS 8102: 2022.
  • UV resistant when used with Axiom Guard PRO Topcoat - suitable for exposed applications.
  • Multipurpose - suitable for a range of applications.
  • Fully bonded system - seamless membrane, self terminating at the perimeter of the installation.
  • Rapid installation - wet-on-wet application speeding up installation on site.
  • Moisture curing - can be applied to damp substrates and resistant to rain once applied.
  • Versatile - suitable for large areas and complex detailing.
  • Conforms with the specification requirements of NHBC Chapter 5.4.
  • Supplied in 15 kg drums.


Consult manufacturer's literature for storage, preparation and installation information.

General information

Color

Grey

Other

Finish

Matt

Anti-slip

Gloss

Material

Polyurethane (PUR)

Shape

Formless

Uniclass

Pr_35_31_68_64 Polyurethane (PUR) waterproof coatingsPrimary
Pr_35_31_68_52 Membrane walkway coatings

CAWS

M60/180 Floor coating

J30/110 Cold-applied tanking

J30/130 Cold-applied damp-proofing

J31/353 Waterproof coating

J31/385 Walkway protective coating

J31/90 Walkway protective coating

J30/10 Cold-applied damp-proofing

J31/47 Waterproof coating

Specification data - Polyurethane (PUR) waterproof coatings

Third-party certification

BBA certificate.

Admixture

One-part polyurethane.

Colour

Dark grey.

Coverage

8–10 m² per 15 kg drum (1.5–1.9 kg/m² application rate).

Application temperature range

5–30 °C.

Curing time

24 hours (approximately).

Top coat

Not required.

Axiom Guard PRO Topcoat.

Guidance for specification option:

Where the membrane is to be left permanently exposed to sunlight, UV resistance must be provided.

Matting

Not required.

Visqueen Axiom Guard PRO Matting.

Guidance for specification option:

1 x 20 m.

Sustainability data

Material

Polyurethane (PUR)

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

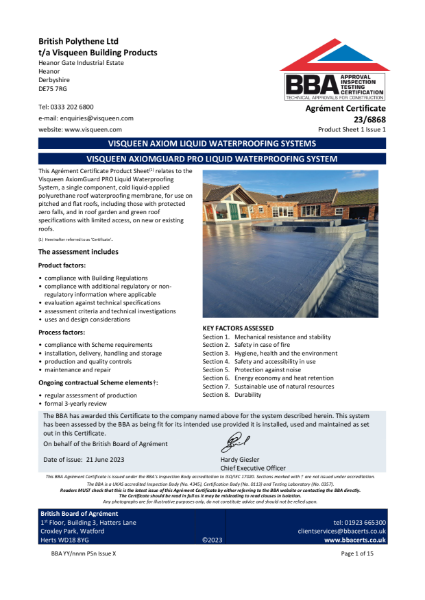

BBA Agrément Certificate

BBA Agrément Certificate

BBA Axiom Guard PRO Liquid Waterproofing System

Literature

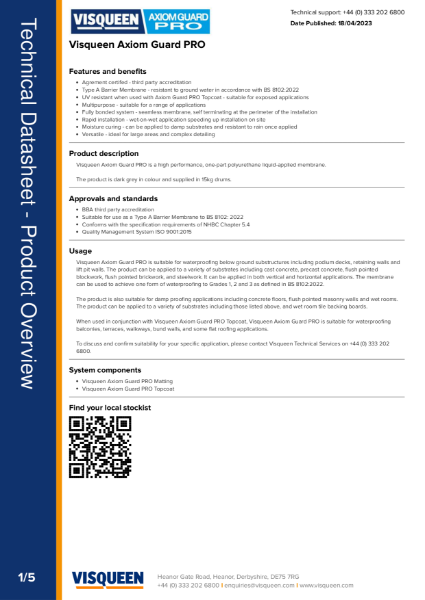

Visqueen Axiom Guard PRO Datasheet

Visqueen Axiom Guard PRO Datasheet
