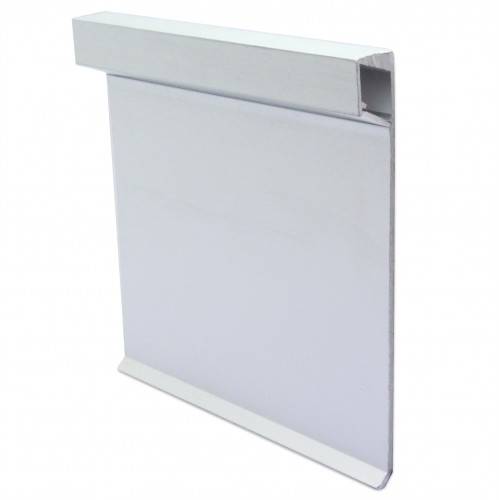

Vision Skirting KLD
Verified by manufacturer 7 months ago
Illuminated aluminum skirting.
Application
Aluminium skirting.
Description
A retrofit aluminium skirting profile incorporating Vision LED, CCT and RGB lighting systems.
Features and benefits:
- Rated IPX4 under IEC standard 60529 - Protects from splashing water, no matter the direction.
- Designed to create a border of low-level light which encapsulates the room.
- Supplied in anodized (81) Matt Silver and (94) Brushed Silver finishes, other finishes available on request.
- Standard 2.8 m length and available in a height of 100 mm.
- Complete with frosted polycarbonate diffuser for optimum light dispersion.
- NPC100 End caps available to suit in (81) Matt Silver and (94) brushed silver finishes.
General information
Color | Silver |
Finish | Matt Brushed Anodized |
Material | Aluminium |
Length | 2800 mm |
Width | 11 mm |
Height | 100 mm |
Uniclass | |
CAWS | M40/10 Natural stone covering to M40/110 Tiling to M40/115 Natural stone covering to M40/12 Mosaic to M40/120 Mosaic to M40/5 Tiling to M41/110 Terrazzo tiling M41/120 In situ terrazzo M41/130 Precast terrazzo M41/140 Marble tiling M50/770 Skirtings M50/80 Skirtings P20/170 Proprietary P20/30 Proprietary |
Specification data - Metal skirtings
Material | Aluminium. |
Finish | |
Coating | Anodized. |
Colour | Silver. |
Texture | (81) Matt Silver.(94) Brushed Silver. |
Height | 100 mm. |
End cap | Not required. NPC100 End Caps (81) Matt Silver. NPC100 End Caps (94) Brushed Silver. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Recyclability | Partially (remove frosted polycarbonate diffuser , recycle aluminium, dispose of frosted polycarbonate diffuser |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 50 % |
Literature
Vision Brochure
GEN436 Vision Tech Pack

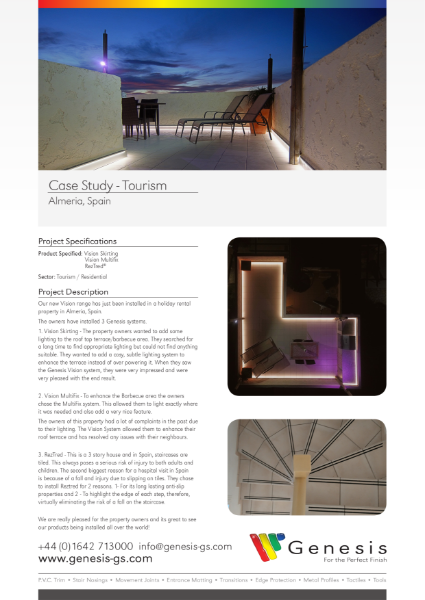

KLD Case Study
Similar products from Genesis Global Systems Limited

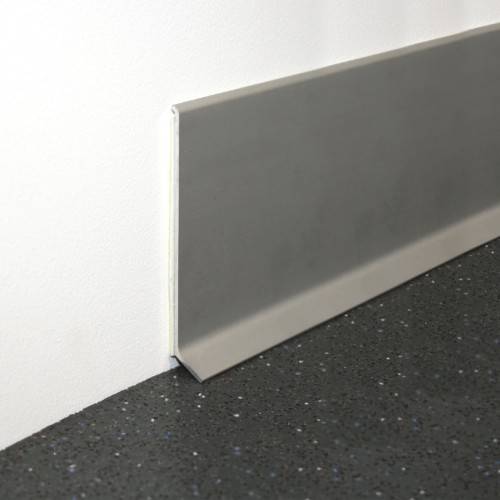

Aluminium Skirting
