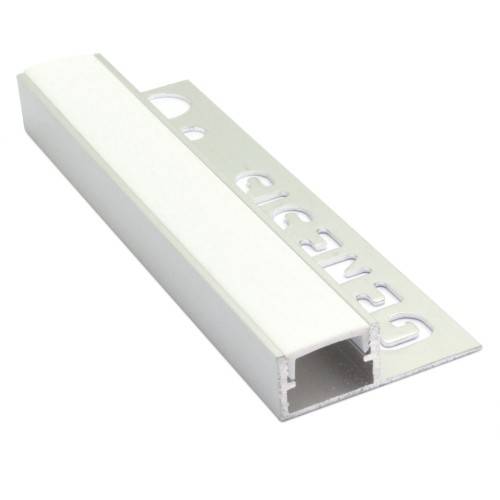

Vision Multi-Fix TLD - Tile-in profile
Verified by manufacturer 5 months ago
Illuminated versatile tile-in profile.
Application
Can be used in wall or floor installations to break up large expanses of tiles or create a pathway in the floor covering.
Description
A versatile tile-in profile incorporating Vision LED, CCT and RGB lighting systems.
Features and benefits:
- Rated IPX4 under IEC standard 60529 - Protects from splashing water, no matter the direction.
- Supplied in anodized (81) Matt Silver finish as standard, other finishes available on request. Standard 2.8 m length and available in depths of 10 and 12 mm.
- Complete with frosted polycarbonate diffuser for optimum light dispersion.
- TUC100 End caps available to suit in an 81 Matt Silver finish.
General information
Color | Silver Other |
Finish | Matt Anodized |
Material | Aluminium |
Length | 2800 mm |
Width | 34 mm |
Height | 10 mm 12 mm |
Uniclass | |
CAWS | M40/5 Tiling to M40/12 Mosaic to M40/10 Natural stone covering to M40/110 Tiling to M40/115 Natural stone covering to M40/120 Mosaic to |
Specification data - Floor edge trims
Profile | Square. |
Material | Aluminium. |
Finish | Anodized. |
Colour | (81) Matt Silver.Bespoke.Guidance for specification option: Other finishes available on request. Consult manufacturer for details. |
Form | Straight. |
Width | 34 mm. |
Depth: | 10 mm. 12 mm |
End cap | TUC100 End Caps. Not required. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Recyclability | Partially (remove frosted polycarbonate diffuser, recycle aluminium, dispose of frosted polycarbonate diffuser) |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 50 % |
Literature

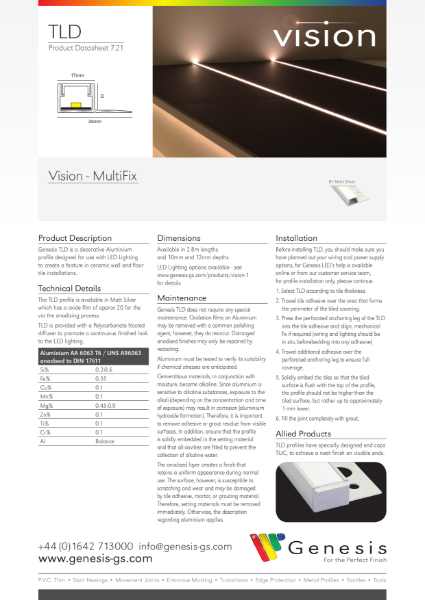

Vision Multi-Fix TLD Data Sheet
Vision Brochure
GEN436 Vision Tech Pack

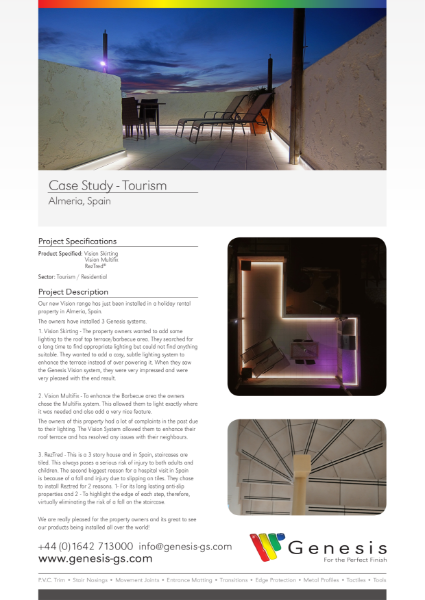

Multifix Case Study
Similar products from Genesis Global Systems Limited
Balcony Profiles

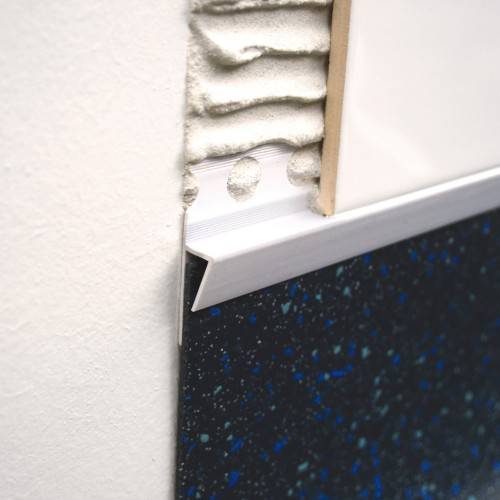

PVC Vinyl To Tile

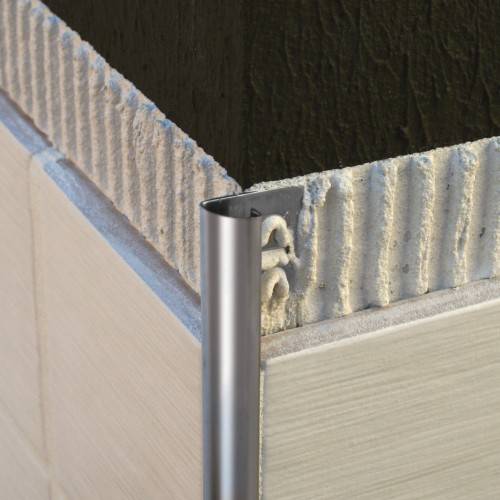

Quadrant And Corner Trims

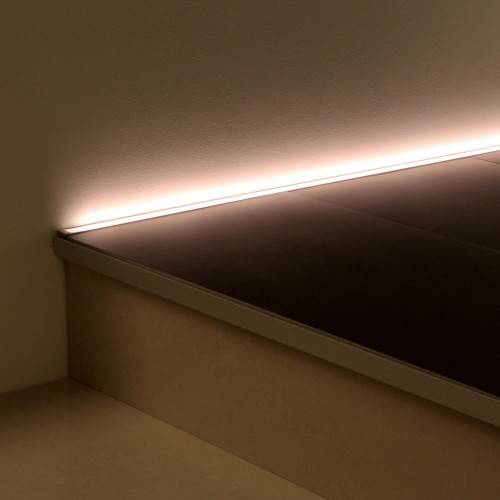

Vision Guidance System - Edge profile
